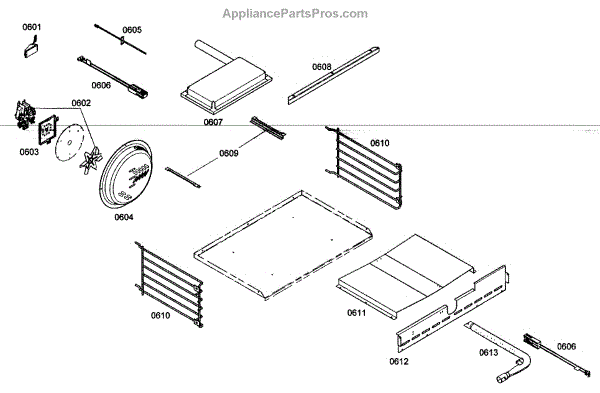

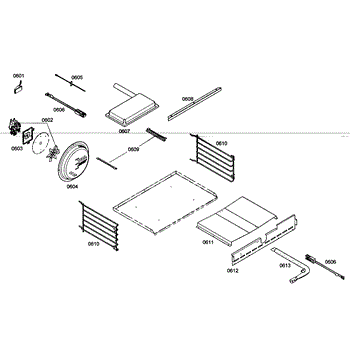

Parts for Thermador PRG366EH01: Oven Parts

The Lamp is an OEM part for Bosch ranges and ovens. The range lamp provides visibility when viewing food through the oven window or checking on items cooking on the stove.

Causes of a bad range lamp can include normal wear and tear over time, as well as accidental damage from impact or handle mishandling.

Symptoms of a bad range lamp include:

• Diminished light that does not adequately illuminate the cooking space
• Flickering or unstable illumination
• A burned out or broken bulb

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This OEM replacement part is a motor assembly for ovens. The motor assembly is the main motor that powers the oven fan which is responsible for maintaining and adjusting the temperature in an oven. If the oven is no longer heating properly, turning on, or maintaining temperature, then the motor assembly will need to be replaced.To replace this part, make sure that the oven is unplugged. After it has been powered off, proceed to pull the oven out and away from the wall. Once moved, uninstall the back panel of the oven by removing the panel's mounting screws. After detaching the back panel, locate the motor housing on the back of the oven. Unthread the screws that hold the housing in place. Once removed, locate the mounting brackets that hold the motor in place and remove the screws that attach to the motor. Pull the old motor out of its place and install the new motor. Reinstall the back panel and restore power to the appliance.This genuine replacement part is sold individually and is compatible with Bosch, Gaggenau, and Thermador brand ovens.

The temperature sensor is an electronic probe that monitors internal appliance temperature and reports it to the control so it can regulate operation. Replacing a failed sensor restores more accurate temperatures and can clear temperature-related error codes. What it does:

• Senses internal temperature via resistance changes and sends the signal to the electronic control
• Helps the control reach and maintain the set temperature during operation
• Common failure symptoms: too hot/cold, won't reach set temp, long/short cycles, temperature error codes
• Can cause preheat to stall or the unit to shut off early (model dependent)

• Includes: 1 temperature sensor

• Disconnect power at the breaker before servicing
• Location and access vary by model; typically mounts with screws or a clip and connects to a 2-wire harness
• Handle the connector and wiring carefully; route and secure away from hot or moving parts
• After installation, clear stored errors and run a test cycle to proper readings

The Bake Igniter is an OEM part for Bosch wall ovens and ranges. Located at the bottom of the oven cavity, it generates the radiant heat needed to initiate the bake burners.

Causes of a bad bake igniter can include failure of the delicate calrod-style heating element from prolonged high-temperature exposure over time.

Symptoms of a bad bake igniter include:

• Inability to ignite or maintain ignition of the bake burners
• Improperly or unevenly heated oven cavity
• Cool or cold spots appearing on bake results
• Igniter glows, but fails to ignite

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This distributor rotor assembly routes the ignition signal inside the appliance's ignition module so the correct burner or electrode fires when needed. It helps restore proper ignition sequencing and consistent spark delivery. What it does:

• Rotates or indexes to direct the ignition/spark signal to each electrode in sequence
• Restores correct firing order when a worn rotor causes intermittent or no spark
• Helps eliminate ignition delays, weak sparks, or uneven burner lighting
• Works as the mechanical/electrical link between the ignition module and electrodes

• One distributor rotor assembly

• Turn off power and gas before beginning work; follow appliance-specific safety procedures
• Handle with care to avoid damaging contacts or the rotor tip
• Inspect mating contacts and surrounding components; replace related damaged parts as needed

This replacement cover is an exterior access panel that protects internal components and finishes the appliance for a clean look. It restores a sealed barrier over controls and wiring to help keep parts secure and reduce drafts. What it does:

• Covers and protects internal wiring, terminals and small components from debris and accidental contact
• Restores finished appearance where a damaged or missing panel left an opening
• Reduces rattling or vibration caused by loose or broken panels
• Helps prevent moisture and foreign objects from entering the service area

• One cover

• Disconnect power to the appliance before starting any work
• Installation may require removing screws or unclipping snap-in fasteners; keep hardware if reusing
• Handle edges carefully—use gloves to avoid cuts on sheet-metal edges
