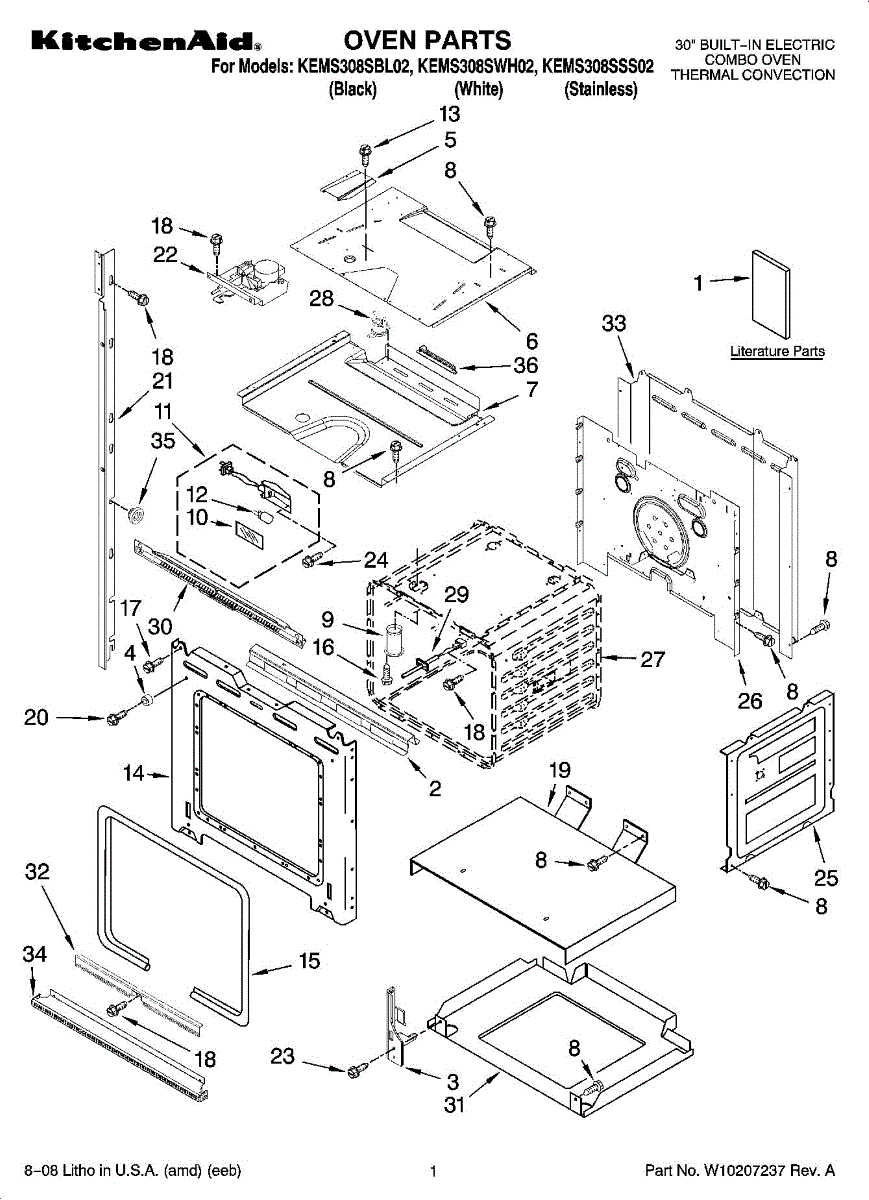

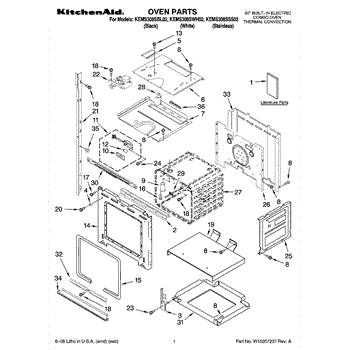

Parts for Kitchenaid KEMS308SBL02: 01 - Oven Parts

Left side hinge receiver for door hinge. For right side hinge receiver use WP4455606.

Door hinge receiver for wall ovens. Mounts inside the oven frame to hold the door hinge in place. Replace if cracked, deformed, or causing door alignment issues.

The screw and bumper assembly includes a small cushioning stopper and its mounting screw, designed to prevent hard contact between moving parts or doors and the appliance frame. These bumpers absorb impact and reduce noise when drawers, doors, or panels are opened and closed. Replace this set if you hear loud banging or rattling when operating your appliance or if the existing bumper is worn, torn, or missing.

Replacement mounting screw for securing panels, brackets, covers, and trim pieces in appliances. Restores fit when hardware is missing, stripped, or lost.

Vent tube for wall ovens and ranges. Directs hot air from the oven cavity through the exhaust opening. Replace if cracked, damaged, or missing.

This clear interior light lens protects and diffuses the refrigerator light, restoring even illumination inside the fresh-food compartment. Replace a cracked, yellowed, or missing lens to improve visibility and protect the bulb from spills. What it does

• Covers and shields the interior light bulb from splashes and debris
• Diffuses light for more even illumination throughout the compartment
• Helps prevent direct contact with the bulb, reducing breakage risk
• Common symptoms: cracked or discolored lens, uneven or glaring light, or a missing lens

• Disconnect power to the appliance before servicing to avoid shock or injury
• Handle the lens gently—it is a molded plastic part that can crack if dropped
• Inspect the bulb and socket while the lens is removed; replace any damaged components
• No special tools typically required; your model's service instructions for safe removal/replacement steps

Illuminates oven interior for monitoring food without opening door. Replace when bulb burns out or flickers. High-temperature rated. Verify compatibility.

Illuminates your oven cavity for safe cooking monitoring. Replace when burned out or dim. Confirm fit with your model number before ordering.

Mounting screw for securing trim, hinges, drawer guides, and interior components. Replace if missing, stripped, or broken during repair or maintenance.

Forms a heat-resistant seal between the oven door and cavity. Replace when worn to maintain temperature, reduce heat loss, and ensure even baking.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Size: 8-18 x 3/8 inch.

Screw for control panel vent.

Oven won't heat or door won't stay closed? A faulty door latch prevents proper sealing and signals. This replacement restores secure closure and heating.

This ground screw secures the appliance's grounding wire or strap to the chassis or terminal area, creating a reliable bonding point. Replace a missing or damaged screw to restore a proper ground connection during installation or service.

• Provides the designated bonding point for the grounding wire/strap
• Fastens to the frame or terminal area using 8-32 machine threads
• Helps maintain a consistent ground path for safe operation
• Typical reasons to replace: stripped head/threads, corrosion, or a missing screw

• Disconnect power at the breaker or unplug the appliance before servicing
• Route the ground wire/strap to the specified grounding location
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Ensure the ground connection is secure and complies with local electrical codes before restoring power

Replacement mounting screw for electric wall ovens and ranges. Secures panels, brackets, and trim pieces. Replaces lost, stripped, or damaged screws.

Right and left hand side.

Oven won't heat after self-cleaning? A blown thermal fuse cuts power to protect the control. Requires pulling the oven out to access rear panel.

Oven won't heat properly or overheats? A faulty temperature sensor may be the cause. Simple 15-minute DIY repair with basic tools and our video guide.

This stainless steel retainer secures the door gasket in place around your oven opening, ensuring a proper seal during cooking. It holds the gasket firmly against the door frame to prevent heat loss. Replace if your oven loses heat, the gasket falls out of place, or if you notice gaps around the door when closed.

The oven vent bottom trim is the decorative and functional panel located at the base of the oven vent opening, directing heat and moisture safely away from the cooktop surface. It protects surrounding components from heat damage while giving the appliance a finished look. Replace this part if it is cracked, discolored, or missing, or if heat seems to be escaping in unexpected directions around the vent area.

The range oven rack side rail grommet is a small rubber or plastic component that allows the oven rack to slide smoothly in and out of the side rails. Replace it when racks stick or bind during insertion, fall out unexpectedly, or if the grommet is visibly cracked or missing.
