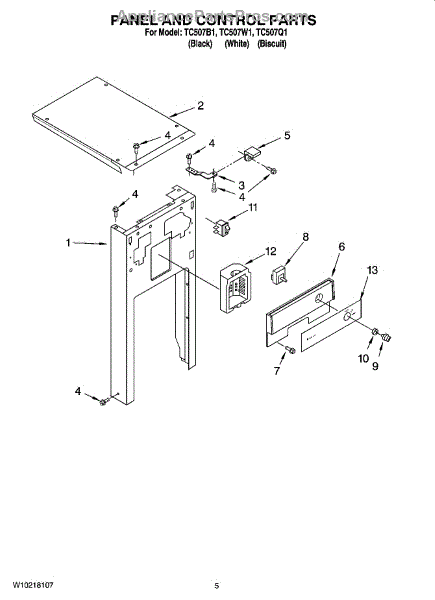

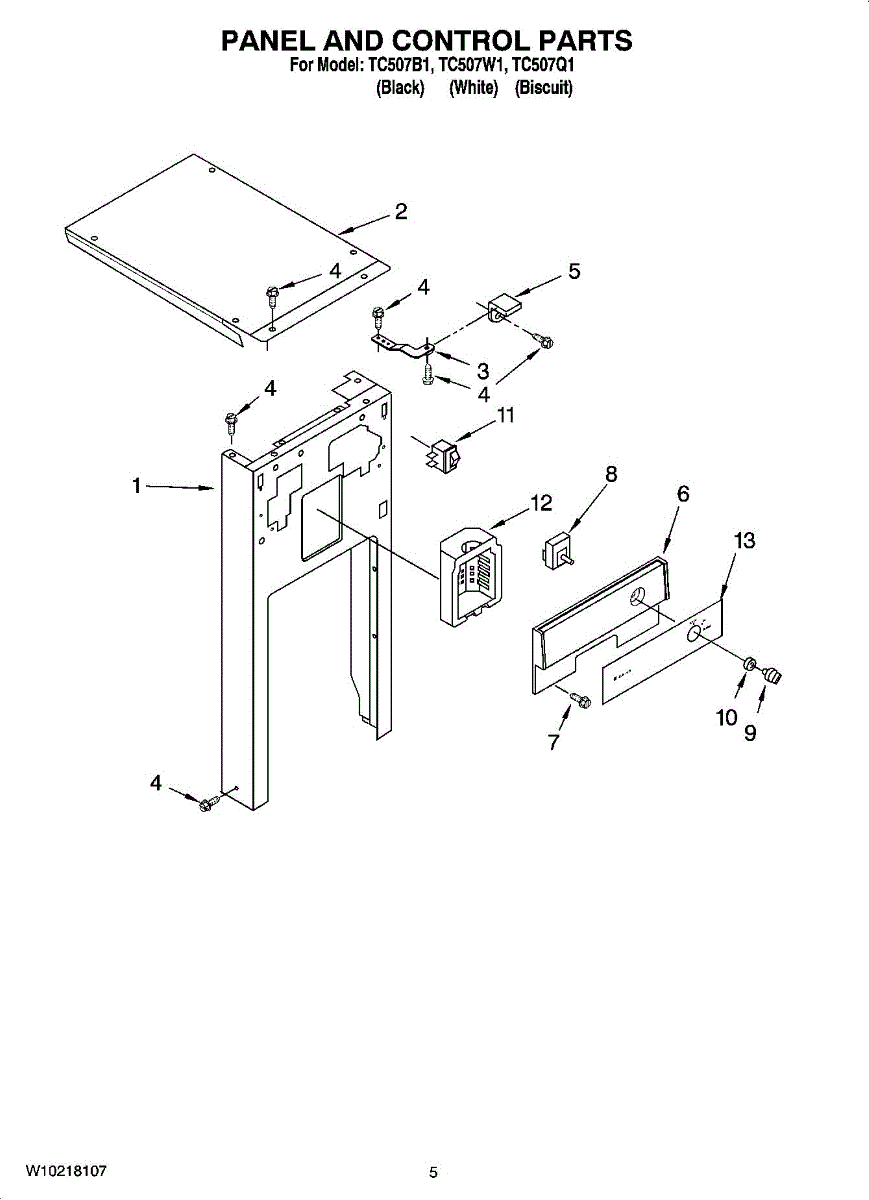

Parts for Maytag TC507B1: 05 - Panel And Control Parts

Color: Black. This panel is without cut out for lower switch. For panel with cut out use W10342596.

This retainer bracket secures internal components in place to restore proper alignment and support. It replaces a worn or broken bracket to help reduce rattling, misalignment, or loose parts during operation. What it does:

• Holds and supports internal assembly parts to maintain correct positioning
• Prevents movement that can cause noise, vibration, or rubbing
• Restores stability after bracket damage or wear
• Works as a direct-fit replacement when the original bracket is broken or bent

• High-level replacement — basic hand tools required;
• Disconnect power (and gas if applicable) before beginning any repair
• Inspect surrounding parts and hardware; replace any damaged fasteners for a secure fit

Size: 8 x 1/2 ab.

This sheet-metal pan-head screw secures appliance panels, brackets, and components to the cabinet or frame. Replacing a missing or damaged screw restores a tight fit and helps stop rattles, misalignment, and loosening.

• Fastens sheet-metal panels, covers, ducts, and brackets to the appliance chassis
• Helps keep components aligned and secure during operation
• Replace if the original is missing, rusted, stripped, or damaged
• Common symptoms: loose or vibrating panels, gaps or misaligned parts, hardware that won't tighten

• Disconnect power; shut off gas or water supply before servicing
• Support the panel or part being attached; hand-start threads to avoid cross-threading
• Use the correct driver bit; tighten snugly but do not overtighten into sheet metal
• If multiple matching screws secure a part, consider replacing them as a set for consistent hold

The On/Off Rotary Switch Kit is an OEM part for Whirlpool trash compactors. This kit includes the rotary switch and necessary components to control the power and operation of the trash compactor, allowing users to turn the unit on and off easily.

Causes of a bad rotary switch can include electrical wear and tear, damage from repeated use, or issues with the internal contacts. Over time, these factors can lead to the switch becoming unresponsive or failing to control the compactor properly.

Symptoms of a bad rotary switch include:

• The trash compactor not turning on or off
• Intermittent operation of the compactor
• The switch feeling loose or unresponsive
• Electrical sparking or unusual noises from the switch area

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This Knob-Switch is a direct-fit control knob that lets you select settings and actuate the appliance's switch function for user control. It restores reliable manual control when the original knob is worn, cracked, or no longer engages. What it does:

• Rotates and/or presses to change the appliance setting while activating the internal switch mechanism
• Restores tactile control and proper engagement if the original knob is stripped, cracked, or loose
• Helps eliminate intermittent or non-responsive controls caused by a damaged knob interface
• Matches OEM fit and control ergonomics for accurate selection and operation

• One Knob-Switch

• Disconnect power to the appliance before servicing to avoid shock or injury
• Typically pulls straight off the control shaft; inspect the shaft and switch for wear before installing
• If the knob does not seat correctly after replacement, verify shaft style (splined vs. round) and switch retention

This replacement knob-switch lets you turn the appliance control on and off or select settings with a tactile, click action. It restores a worn, cracked, or non-responsive control knob so you can operate the appliance easily. What it does:

• Replaces a damaged or worn control knob that houses the on/off or selector switch
• Provides a secure grip and tactile click for reliable setting selection
• Helps resolve symptoms like a loose, cracked, or unresponsive knob or difficulty changing settings
• Matches the original fit and mounting style for straightforward panel fitment

• One replacement knob-switch

• Disconnect power to the appliance before attempting any service to avoid electric shock
• Access may require removing a trim panel or control console; keep fasteners organized for reassembly
• Pull-on knobs may require a firm, straight pull; use a knob puller if needed to avoid damage
• Test proper operation after reassembly and restore power only when safe

This rotary switch knob restores easy, reliable control of the appliance's front-panel settings. It replaces a cracked, missing, or worn control knob so selections turn smoothly and are easy to adjust. What it does:

• Fits onto the control's rotary switch shaft to allow selection of cycles and settings.
• Replaces a loose, cracked, stripped, or missing knob that is hard to turn or won't stay in position.
• Matches the original black finish for a consistent appearance on the control panel.
• Secures to the existing splined shaft (or set-screw where applicable) for a direct replacement.

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Remove the old knob by pulling it straight off the control shaft; align splines and push the new knob onto the shaft until fully seated.
• If the knob uses a set screw, tighten it securely but do not overtighten.

This switch nut secures a rotary control or switch to the appliance's front panel. Replacing a stripped or missing nut keeps the control stable so the knob turns smoothly and the shaft stays properly aligned.

• Clamps the switch/control to the panel to prevent movement or rotation
• Helps maintain correct knob alignment with dial markings
• Common symptoms: loose or wobbly knob, switch rotates in the panel, missing/damaged nut
• Often needed after service if the original nut is stripped or lost

• Disconnect electrical power before servicing
• Remove the knob and any decorative escutcheon; thread the new nut onto the switch bushing from the front of the panel
• Support the switch from behind while tightening; do not overtighten to avoid panel or switch damage
• Restore power and test control operation

Color: Black

This push-button door switch senses when your refrigerator door opens and closes to control the interior light. Replace a worn or stuck switch to restore reliable lighting and proper on/off operation when the door moves. What it does:

• Turns the interior light on when the door opens and off when it closes
• Common fix for a light that won't turn on with the door open
• Resolves lights that stay on continuously with the door closed
• Addresses intermittent lighting from a sticking or damaged plunger

• One door switch

• Disconnect power to the refrigerator before servicing
• Carefully pry the old switch from the liner; protect the surface to avoid damage
• Transfer wires to the new switch one at a time to maintain correct connections
• Press the new switch fully into place and restore power to test operation

The Compartment is an OEM component specifically designed for Whirlpool-mounted trash compactors located within cabinetry. This liner partitions and contains smashed refuse to prevent detritus dispersal.

Causes of a bad compartment involve splits developed from years of wear reducing integrity, mineral deposits stiffening flexible folds, or detached glides suspending proper deployment.

Symptoms of a bad compartment include:

• Trash escaping from loosened barriers during compaction
• Warped creases hindering full retraction
• Exposed grinding mechanisms posing pinch risks
• Loose mounts producing rattling vibrations

Replace yours today with this genuine OEM Whirlpool liner. Compatible with KitchenAid, Maytag, and select Kenmore mounted units as well, reengineered material absorbs impacts while streamlining extraction. Hygienic containment sustains routines with low effort.
