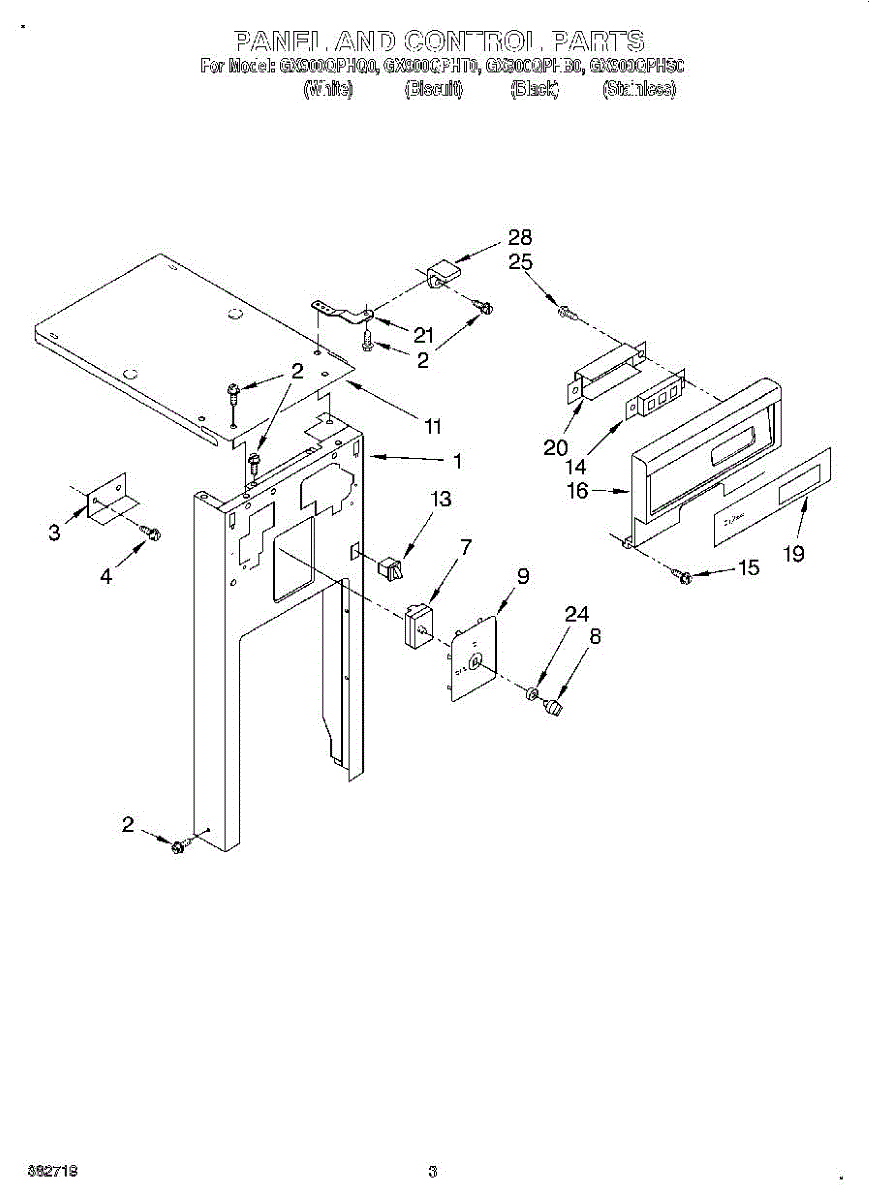

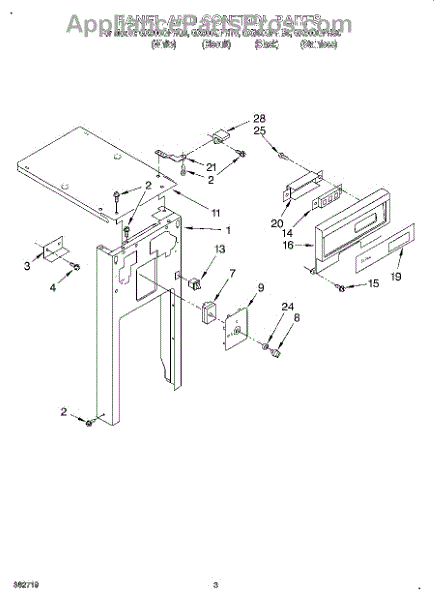

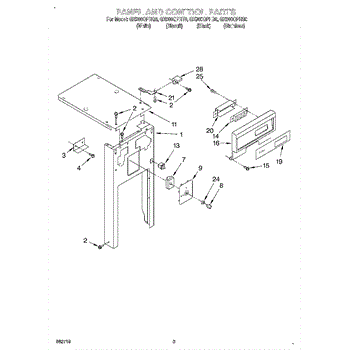

Parts for Whirlpool GX900QPHB0: 03 - Panel And Control Parts

Color: Black. This panel is without cut out for lower switch. For panel with cut out use W10342596.

Size: 8 x 1/2 ab.

Size: 8-32 x 1/4 inch.

To order knob for this switch use WP4155141.

May also be called a key. Color: Red.

Color: White.

Color: Black

This push-button door switch senses when your refrigerator door opens and closes to control the interior light. Replace a worn or stuck switch to restore reliable lighting and proper on/off operation when the door moves. What it does:

• Turns the interior light on when the door opens and off when it closes
• Common fix for a light that won't turn on with the door open
• Resolves lights that stay on continuously with the door closed
• Addresses intermittent lighting from a sticking or damaged plunger

• One door switch

• Disconnect power to the refrigerator before servicing
• Carefully pry the old switch from the liner; protect the surface to avoid damage
• Transfer wires to the new switch one at a time to maintain correct connections
• Press the new switch fully into place and restore power to test operation

This switch assembly is the tap-touch control used on the appliance's control panel to register user touch inputs and change settings. Replacing a faulty switch restores reliable touch response and control operation. What it does:

• Registers touch/tap inputs on the control panel so the appliance responds to user commands
• Replaces a worn, cracked, or unresponsive touch switch that can cause intermittent or no control response
• Restores correct input for affected buttons or zones on the control surface
• Works as the direct replacement electrical/mechanical switch element for the panel

• One switch assembly (white), as pictured

• Disconnect power to the appliance before starting—risk of electric shock
• Replacement requires access behind the control panel; handle the control board and ribbon cables carefully
• Keep track of mounting hardware and orientation for reassembly; do not force connectors

This sheet-metal pan-head screw secures appliance panels, brackets, and components to the cabinet or frame. Replacing a missing or damaged screw restores a tight fit and helps stop rattles, misalignment, and loosening.

• Fastens sheet-metal panels, covers, ducts, and brackets to the appliance chassis
• Helps keep components aligned and secure during operation
• Replace if the original is missing, rusted, stripped, or damaged
• Common symptoms: loose or vibrating panels, gaps or misaligned parts, hardware that won't tighten

• Disconnect power; shut off gas or water supply before servicing
• Support the panel or part being attached; hand-start threads to avoid cross-threading
• Use the correct driver bit; tighten snugly but do not overtighten into sheet metal
• If multiple matching screws secure a part, consider replacing them as a set for consistent hold

This part has been discontinued by the manufacturer and is no longer available.

This retainer bracket secures internal components in place to restore proper alignment and support. It replaces a worn or broken bracket to help reduce rattling, misalignment, or loose parts during operation. What it does:

• Holds and supports internal assembly parts to maintain correct positioning
• Prevents movement that can cause noise, vibration, or rubbing
• Restores stability after bracket damage or wear
• Works as a direct-fit replacement when the original bracket is broken or bent

• High-level replacement — basic hand tools required;
• Disconnect power (and gas if applicable) before beginning any repair
• Inspect surrounding parts and hardware; replace any damaged fasteners for a secure fit

This switch nut secures a rotary control or switch to the appliance's front panel. Replacing a stripped or missing nut keeps the control stable so the knob turns smoothly and the shaft stays properly aligned.

• Clamps the switch/control to the panel to prevent movement or rotation
• Helps maintain correct knob alignment with dial markings
• Common symptoms: loose or wobbly knob, switch rotates in the panel, missing/damaged nut
• Often needed after service if the original nut is stripped or lost

• Disconnect electrical power before servicing
• Remove the knob and any decorative escutcheon; thread the new nut onto the switch bushing from the front of the panel
• Support the switch from behind while tightening; do not overtighten to avoid panel or switch damage
• Restore power and test control operation

Size: 8-28 x 3/4 inch.
