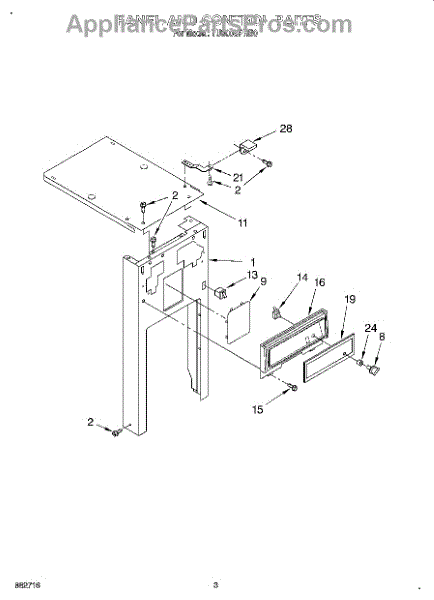

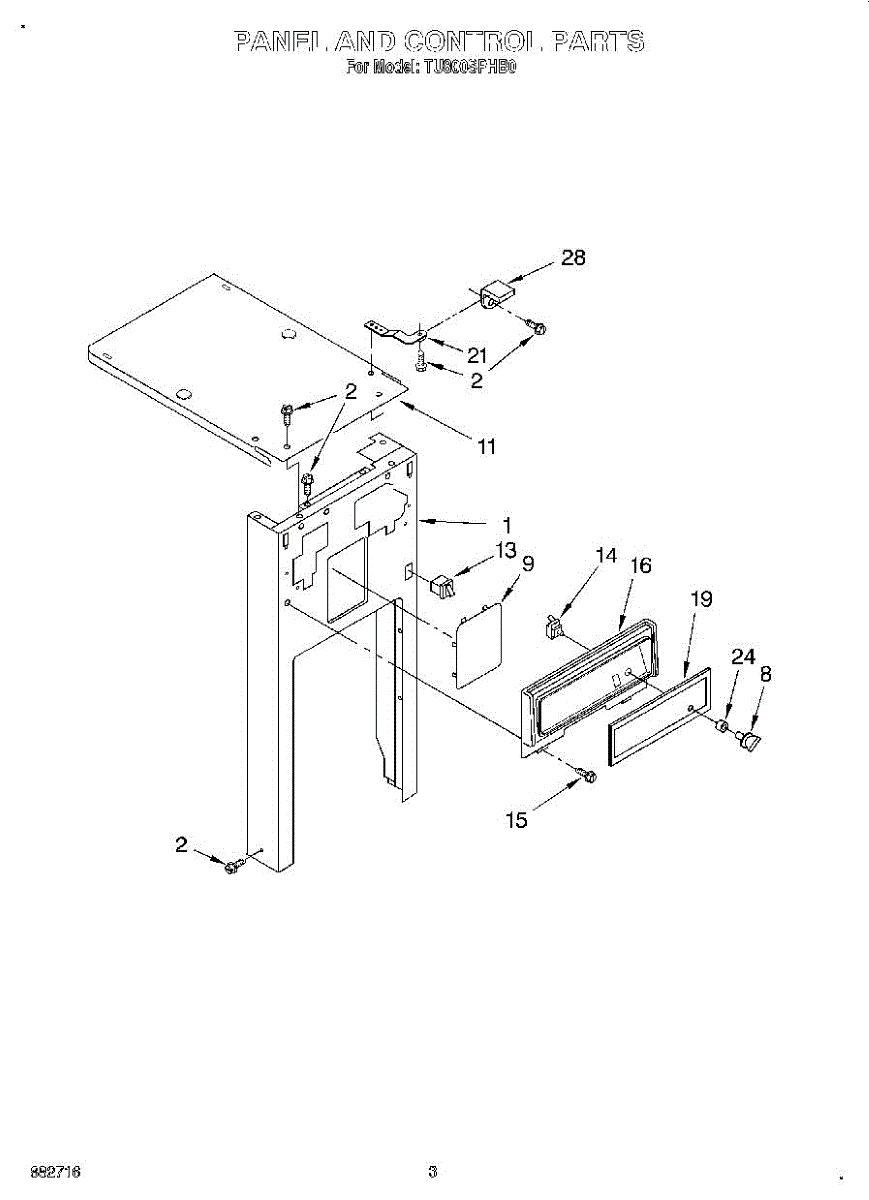

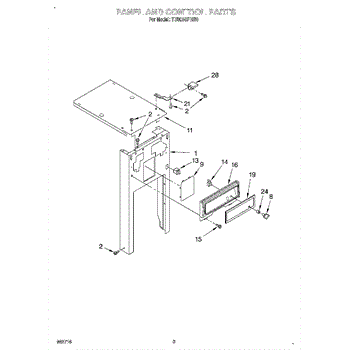

Parts for Whirlpool TU800SPHB0: 03 - Panel And Control Parts

Color: Black. This panel is without cut out for lower switch. For panel with cut out use W10342596.

Size: 8 x 1/2 ab.

This rotary switch knob restores easy, reliable control of the appliance's front-panel settings. It replaces a cracked, missing, or worn control knob so selections turn smoothly and are easy to adjust. What it does:

• Fits onto the control's rotary switch shaft to allow selection of cycles and settings.
• Replaces a loose, cracked, stripped, or missing knob that is hard to turn or won't stay in position.
• Matches the original black finish for a consistent appearance on the control panel.
• Secures to the existing splined shaft (or set-screw where applicable) for a direct replacement.

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Remove the old knob by pulling it straight off the control shaft; align splines and push the new knob onto the shaft until fully seated.
• If the knob uses a set screw, tighten it securely but do not overtighten.

Color: Black.

This push-button door switch senses when your refrigerator door opens and closes to control the interior light. Replace a worn or stuck switch to restore reliable lighting and proper on/off operation when the door moves. What it does:

• Turns the interior light on when the door opens and off when it closes
• Common fix for a light that won't turn on with the door open
• Resolves lights that stay on continuously with the door closed
• Addresses intermittent lighting from a sticking or damaged plunger

• One door switch

• Disconnect power to the refrigerator before servicing
• Carefully pry the old switch from the liner; protect the surface to avoid damage
• Transfer wires to the new switch one at a time to maintain correct connections
• Press the new switch fully into place and restore power to test operation

The On/Off Rotary Switch Kit is an OEM part for Whirlpool trash compactors. This kit includes the rotary switch and necessary components to control the power and operation of the trash compactor, allowing users to turn the unit on and off easily.

Causes of a bad rotary switch can include electrical wear and tear, damage from repeated use, or issues with the internal contacts. Over time, these factors can lead to the switch becoming unresponsive or failing to control the compactor properly.

Symptoms of a bad rotary switch include:

• The trash compactor not turning on or off
• Intermittent operation of the compactor
• The switch feeling loose or unresponsive
• Electrical sparking or unusual noises from the switch area

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 6-20 x 1.0 inch.

This retainer bracket secures internal components in place to restore proper alignment and support. It replaces a worn or broken bracket to help reduce rattling, misalignment, or loose parts during operation. What it does:

• Holds and supports internal assembly parts to maintain correct positioning
• Prevents movement that can cause noise, vibration, or rubbing
• Restores stability after bracket damage or wear
• Works as a direct-fit replacement when the original bracket is broken or bent

• High-level replacement — basic hand tools required;
• Disconnect power (and gas if applicable) before beginning any repair
• Inspect surrounding parts and hardware; replace any damaged fasteners for a secure fit

This switch nut secures a rotary control or switch to the appliance's front panel. Replacing a stripped or missing nut keeps the control stable so the knob turns smoothly and the shaft stays properly aligned.

• Clamps the switch/control to the panel to prevent movement or rotation
• Helps maintain correct knob alignment with dial markings
• Common symptoms: loose or wobbly knob, switch rotates in the panel, missing/damaged nut
• Often needed after service if the original nut is stripped or lost

• Disconnect electrical power before servicing
• Remove the knob and any decorative escutcheon; thread the new nut onto the switch bushing from the front of the panel
• Support the switch from behind while tightening; do not overtighten to avoid panel or switch damage
• Restore power and test control operation
