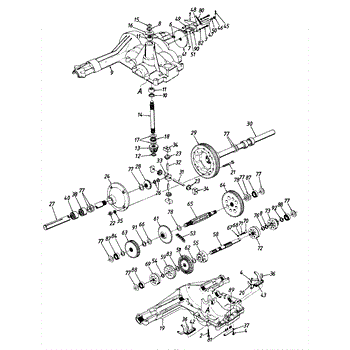

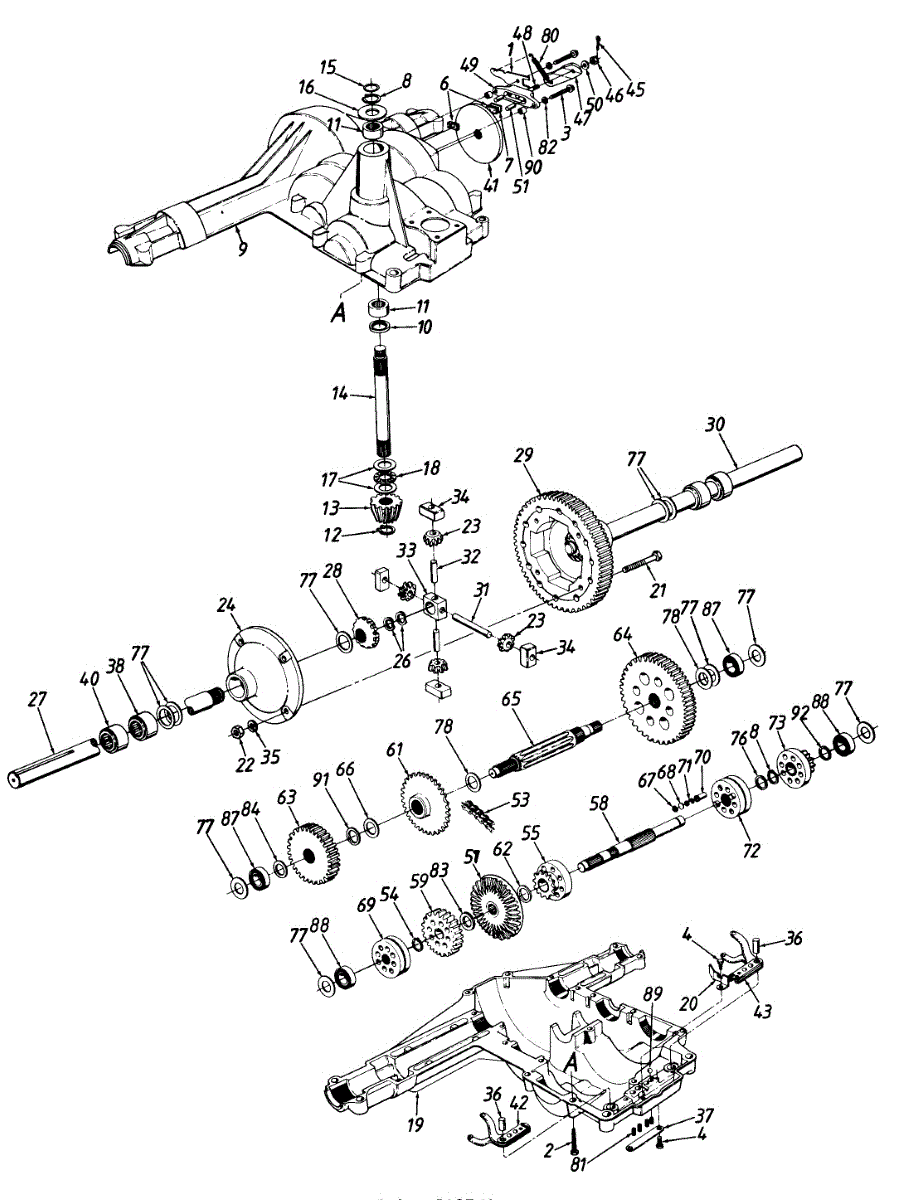

Parts for Wizard MTD7129A98: Parts06 Parts

This hex screw is a genuine MTD part. A hex screw can be used as a replacement part in refrigerators, humidifiers, lawn mowers, snowblowers, tillers, log splitters, and wood chippers. The purpose of this genuine OEM part is to stabilize and secure the placement of components within the internal or external machinery of one of these appliances.In lawn equipment a screw might easily be lost, misplaced, or damaged; if this occurs, the screw should be removed and replaced by this genuine OEM replacement part so that all components can maintain their placement.This is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This hex screw is compatible with equipment manufactured by MTD, Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Sub Zero, Yard Machines, Huskee, Montgomery Wards, Bolens, Yard Man, Turf King, and MasterCut.

Wire retaining ring for lawn tractors and walk-behind mowers. Secures wiring harnesses in place. Replace if broken, missing, or no longer holding wires.

This is a thrust bearing. The thrust bearing is positioned between the lawn mower's spindle and front axle and serves to reduce friction during use. This part makes shifting between different speeds much easier. A worn-out thrust bearing will have more room between the rollers on the outside of the bearing. This movement will cause the bearing to move more than usual. When the bearing goes bad, the driver may notice rattling, squeaking, or other noises coming from the machine. These noises can be more prevalent when the clutch pedal is engaged. To replace the thrust bearing, first, the clutch must be removed from the lawn mower. On the bottom of the driveshaft, there is a bolt and washer that need to be removed. Wedge and move the clutch, allowing it to work its way down the driveshaft, then remove it. There is a bearing retainer clip and three bolts that will enable the thrust bearing to be removed. Repeat the steps in reverse after installing the new component.This product is a genuine OEM MTD part sourced directly from the manufacturer. The part is sold individually and not available with any other components. This product is compatible with MTD and Cub Cadet products.

Replace a damaged, stripped, or missing hex screw on lawn mowers, tillers, or snowblowers. This fastener secures panels and components together.

Secure loose deck components or prevent blade assembly vibration with this hex lock nut. Common replacement for attachment and engine mounting hardware.

Miter gear for garden tractor transmission systems. Replaces worn, stripped, or broken gears that cause grinding or mechanical failure in the drive assembly.

Fix uneven wheel speed or loss of traction with this lawn tractor differential gear. Restores proper power distribution to both rear wheels.

This ball detent is a genuine MTD replacement part for appliances operated by small engines, including lawn tractors, lawn mowers, snowblowers, leaf blowers, chipper shredders, and tillers. The function of a ball detent is to temporarily keep two parts in place relative to one another, as one or both of the parts rotate.A ball detent might have to be replaced in the event that it suffers damage over time or is lost or misplaced. It is possible for ball detents to fall out of their spot, meaning that the parts that it ordinarily holds in place will not be able to rotate properly. Additionally, a ball detent might have to be replaced if there is material deterioration. If this occurs, a replacement ball detent part should be ordered and secured to the small engine appliance immediately. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. This ball detent is compatible with the following brands: MTD, Yard Man, Yard Machines, and Troy-Bilt.
