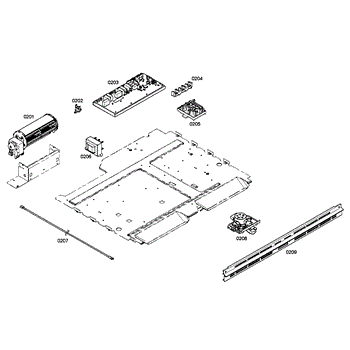

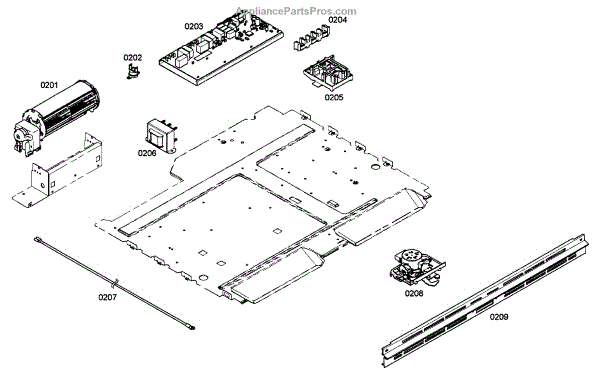

Parts for Thermador ME301EP01: Pcb's Assy Parts

This factory fixing kit provides the mounting hardware needed to secure the applicable component or panel on your appliance. Replacing worn or missing fasteners restores proper alignment and a solid, rattle-free installation.

• Secures panels, brackets, or trim to the appliance chassis or door
• Helps prevent shifting, vibration, and rattling during operation
• Restores correct alignment and fit when hardware is missing or stripped
• Useful during initial installation or when re-installing serviced parts

• Disconnect electrical power; if your appliance is plumbed, shut off water before servicing
• Follow your model's installation/service instructions for exact hardware locations and orientation
• Tighten hardware evenly; do not overtighten to avoid damaging plastic or sheet metal
• Verify alignment and smooth operation before restoring power and/or water

The Control Board is an OEM part for Bosch wall ovens. It serves as the main control center for the oven, managing and regulating all the functions, including temperature settings, cooking modes, timers, and the operation of the heating elements.

Causes of a bad Control Board can include electrical surges, wear and tear from prolonged use, exposure to heat, and moisture or grease buildup that can damage electronic components.

Symptoms of a bad Control Board include:

• The oven not powering on or failing to respond to control inputs
• Display errors or malfunctioning display screen
• Inaccurate temperature regulation or inability to maintain set temperatures
• The oven not completing cooking cycles or shutting off unexpectedly

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Control Board is an OEM part for Bosch wall ovens. It serves as the main control center for the oven, managing and regulating all the functions, including temperature settings, cooking modes, timers, and the operation of the heating elements.

Causes of a bad Control Board can include electrical surges, wear and tear from prolonged use, exposure to heat, and moisture or grease buildup that can damage electronic components.

Symptoms of a bad Control Board include:

• The oven not powering on or failing to respond to control inputs
• Display errors or malfunctioning display screen
• Inaccurate temperature regulation or inability to maintain set temperatures
• The oven not completing cooking cycles or shutting off unexpectedly

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This Terminal Box is an OEM part for Bosch Built-In Ovens. Integral to the oven's electrical system, this component serves as a secure connection point for various electrical wires within the appliance.

A common issue with a malfunctioning Terminal Box is loose connections or damage to the terminal block due to heat exposure or aging.

Symptoms of a defective Terminal Box may include:

• Inconsistent power supply to the oven
• Non-functional heating elements
• Sparks or electrical arcing within the terminal box area

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Relay is an OEM component specifically designed for select Bosch built-in ovens. As a basic electronic switch, it receives signals from the control unit to energize heating elements.

Durable plastic encapsulation protects delicate components from accidental spills. Precise switching facilitates customized baking and broiling temperatures within close tolerances.

Causes signaling relay failure related to prolonged thermal stresses from consistent oven use. Impacts of electric abnormalities could also cause malfunctions over time.

Symptoms requiring replacement include:

• Inability to power top or bottom heating elements during cycles
• Erratic temperature fluctuations beyond adjustment capabilities
• Buzzing or loud clicking noises emitting from the relay housing

This OEM Bosch replacement part is also compatible with Thermador, Gaggenau, and select Kenmore built-in ovens employing identical temperature modulation methods. Reinstallation ensures continued customizable and safe cycle performance.


This cable harness routes power and signals between appliance controls and components to restore reliable electrical connections and normal operation. It replaces damaged, frayed, or disconnected wiring to help resolve intermittent or failed component function. What it does:

• Provides factory-style wiring and connector ends for secure electrical connections
• Re-establishes communication between control board and sensors, switches, or motors
• Helps eliminate intermittent power, no-start, or unresponsive control symptoms caused by damaged wiring
• Prevents arcing and shorting from exposed or broken wires when installed correctly

• One complete cable harness assembly as shown

• Disconnect power and water before starting work to avoid shock or injury
• Handle connectors by the housings; avoid pulling on individual wires
• Verify connector orientation and full seating; secure routing to original clips/retainers

This cable harness connects key electrical components to restore power and signal flow in the appliance. It replaces a damaged or faulty wiring harness to help return controls and components to normal operation. What it does:

• Carries power and control signals between the control board and components
• Replaces frayed, burned, or broken wires that cause intermittent or no operation
• Common symptoms it can address: appliance won't start, controls unresponsive, intermittent cycles, or error codes related to open/shorted circuits
• Helps ensure secure connector mating and correct signal routing when installed properly

• Disconnect power at the breaker or unplug the appliance before starting any repairs
• Compare the new harness to the old one and follow the appliance wiring diagram for correct routing and connector placement
• Secure connectors fully; avoid sharp bends or pinching the wires during reassembly
