Parts for Thermador PRD304EHC/07: Pcb's Assy Parts

Parts for Thermador PRD304EHC/07: Pcb's Assy Parts

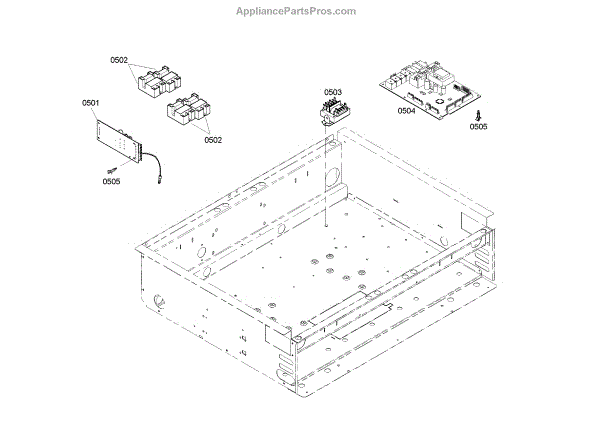

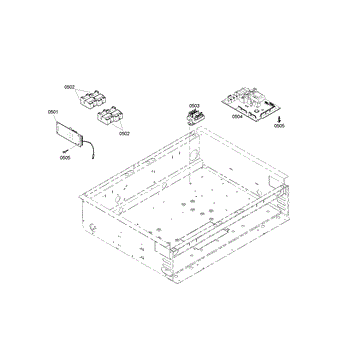

Location on Diagram
Part Description
Price & Availability
503
Product photo
5.0 (1)
By: Bosch
Part Number: 00489194

Oven light not working or flickering? This low-voltage transformer powers your range's interior lights. Restores proper oven lighting function.

More
$148.95

IN STOCK
Ships Today Guaranteed
Add to Cart
504
Product photo
5.0 (1)
By: Bosch
Part Number: 00676192

This electronic PC board is the appliance's main control, processing inputs and directing power to components so cycles run correctly. Replacing a failed board can restore normal operation when the unit is dead, won't start, or stops mid-cycle.

  • Interprets user inputs and sensor feedback to execute programmed cycles
  • Switches relays to power motors, valves, heaters, and other loads as required
  • Manages timing, temperature, and safety logic for consistent performance
  • Typical failure symptoms: no power/won't start, unresponsive or erratic controls, cycles ending prematurely, recurring error codes
What's included: 1 electronic PC board Installation notes:
  • Disconnect power before servicing; verify power is off with a meter
  • Use ESD protection; handle the board by the edges to avoid static damage
  • Move connectors one at a time to identical positions on the new board to prevent miswiring
  • Some models require service-mode setup or calibration after installation—follow your model's service documentation

More
$837.70

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
505
Product photo
By: Bosch
Part Number: 00418283

Small hardware pin that secures or pivots components in gas ranges and cooktops. Replace if worn, missing, or broken to restore proper alignment.

More
$5.57

IN STOCK
Ships Today Guaranteed
Add to Cart
550
By: Bosch
Part Number: 00643506
$17.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
551
By: Bosch
Part Number: 00643535

This cable harness routes power and signals between key components to restore reliable electrical connections and normal appliance operation. Replace a damaged harness to fix intermittent power, control failures, or non-responsive functions. What it does:

  • Provides the multi-conductor wiring path that links control boards, sensors, and motors
  • Carries low-voltage signals and/or line power needed for normal appliance functions
  • Commonly replaced when wires or connectors are damaged, burned, or corroded
  • Can resolve symptoms such as intermittent operation, no power to components, or control errors
What's included: One cable harness Install notes:
  • Disconnect all power before accessing wiring or controls to avoid shock
  • Route harness along original clips and channels to prevent pinching or chafing
  • Inspect connectors for damage and replace if terminals are loose or burned

More
$18.35

IN STOCK
Ships Today Guaranteed
Add to Cart
552
By: Bosch
Part Number: 00643534
$114.47

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
553
Product photo
By: Bosch
Part Number: 00754966

If your gas range burners won't light or ignite intermittently, a worn ignition cable may be preventing spark delivery. Restores reliable ignition.

More
$15.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
554
By: Bosch
Part Number: 00644926
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

555
By: Bosch
Part Number: 00497634
$106.16

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
556
By: Bosch
Part Number: 00644253
$193.52

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
