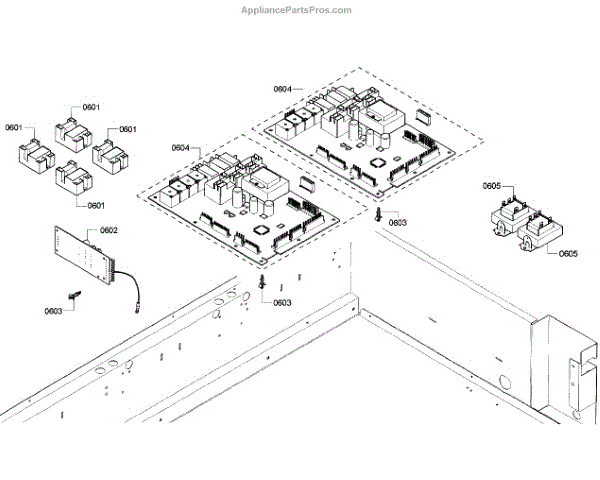

Parts for Thermador PRD484EEHU/01: Pcb's Assy Parts

This OEM replacement pin is a small hardware fastener used to secure or pivot mating components within the appliance. Replacing a worn or missing pin restores proper alignment and reliable movement of the affected part or linkage.

• Serves as an axle/retainer for hinges, brackets, or linkages
• Maintains alignment of moving parts to reduce wobble or binding
• When bent, worn, or missing, you may notice looseness, rattling, misalignment, or difficulty opening/closing related components
• Direct-fit OEM replacement for the specified application

• Disconnect electrical power and shut off water or gas before servicing
• Support the component being serviced to prevent strain or damage during removal/installation
• Note the original orientation and retain any washers, clips, or spacers for transfer to the new pin
• Inspect mating holes/bushings; replace related worn parts to ensure proper fit and operation

This electronic PC board is the appliance's main control, processing inputs and directing power to components so cycles run correctly. Replacing a failed board can restore normal operation when the unit is dead, won't start, or stops mid-cycle.

• Interprets user inputs and sensor feedback to execute programmed cycles
• Switches relays to power motors, valves, heaters, and other loads as required
• Manages timing, temperature, and safety logic for consistent performance
• Typical failure symptoms: no power/won't start, unresponsive or erratic controls, cycles ending prematurely, recurring error codes

• Disconnect power before servicing; verify power is off with a meter
• Use ESD protection; handle the board by the edges to avoid static damage
• Move connectors one at a time to identical positions on the new board to prevent miswiring
• Some models require service-mode setup or calibration after installation—follow your model's service documentation

This transformer supplies the low-voltage power needed for an oven's interior lights so bulbs operate reliably. It restores proper lighting and helps stop flicker or complete loss of oven lamp function. What it does:

• Converts the oven's supply to the low-voltage output required by interior lamp circuits.
• Restores steady lamp operation when lights fail to come on or flicker.
• Works with the oven's light switch and control circuitry to deliver consistent voltage.
• Helps prevent false diagnostics caused by intermittent lamp power.

• One oven light transformer.

• Disconnect all power to the appliance before starting any repair.
• Accessible behind the control panel or chassis; remove panels carefully to reach the transformer.
• Note wire locations and secure all connectors; use proper wire connectors and strain relief.

This cable harness routes power and signals between key components to restore reliable electrical connections and normal appliance operation. Replace a damaged harness to fix intermittent power, control failures, or non-responsive functions. What it does:

• Provides the multi-conductor wiring path that links control boards, sensors, and motors
• Carries low-voltage signals and/or line power needed for normal appliance functions
• Commonly replaced when wires or connectors are damaged, burned, or corroded
• Can resolve symptoms such as intermittent operation, no power to components, or control errors

• Disconnect all power before accessing wiring or controls to avoid shock
• Route harness along original clips and channels to prevent pinching or chafing
• Inspect connectors for damage and replace if terminals are loose or burned

This ignition cable connects the stove's spark electrode to the ignition system so burners ignite reliably. It replaces a damaged or degraded lead to restore spark delivery and consistent lighting. What it does:

• Transfers ignition voltage from the module to the burner electrode so sparks form at the burner
• Helps stop intermittent or no-spark symptoms when the wire is cracked or corroded
• Prevents arcing caused by insulation damage or improper routing
• Restores normal ignition behavior when the original cable is worn or burned

• One ignition cable

• Disconnect power and turn off gas supply before starting any service
• Inspect routing and connectors; replace only if the wire or insulation is damaged
• Keep the cable away from high-heat areas and sharp edges to prevent future damage
