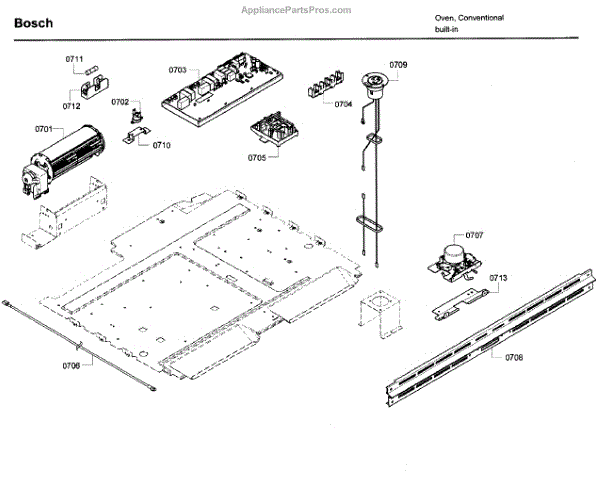

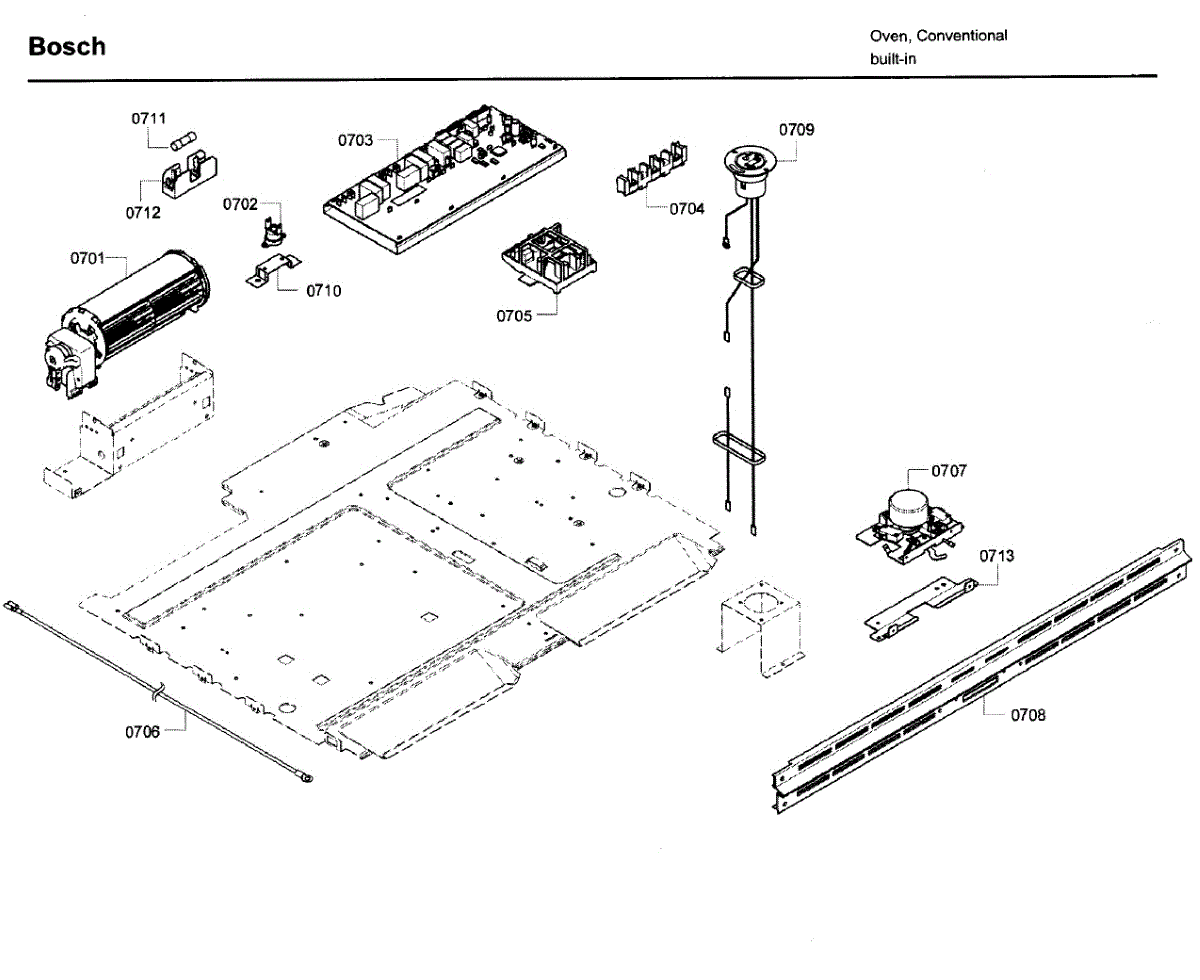

Parts for Bosch HBL8750UC/12: Pcb Asy Parts

Fix uneven baking or slow preheating in your wall oven. This convection fan motor restores proper air circulation for consistent cooking results.

Factory fixing kit with mounting hardware to secure panels, brackets, or trim on your wall oven. Replaces worn, missing, or damaged fasteners for alignment.

The Control Board is an OEM part for Bosch wall ovens. It serves as the main control center for the oven, managing and regulating all the functions, including temperature settings, cooking modes, timers, and the operation of the heating elements.

Causes of a bad Control Board can include electrical surges, wear and tear from prolonged use, exposure to heat, and moisture or grease buildup that can damage electronic components.

Symptoms of a bad Control Board include:

• The oven not powering on or failing to respond to control inputs
• Display errors or malfunctioning display screen
• Inaccurate temperature regulation or inability to maintain set temperatures
• The oven not completing cooking cycles or shutting off unexpectedly

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This Terminal Box is an OEM part for Bosch Built-In Ovens. Integral to the oven's electrical system, this component serves as a secure connection point for various electrical wires within the appliance.

A common issue with a malfunctioning Terminal Box is loose connections or damage to the terminal block due to heat exposure or aging.

Symptoms of a defective Terminal Box may include:

• Inconsistent power supply to the oven
• Non-functional heating elements
• Sparks or electrical arcing within the terminal box area

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Relay is an OEM component specifically designed for select Bosch built-in ovens. As a basic electronic switch, it receives signals from the control unit to energize heating elements.

Durable plastic encapsulation protects delicate components from accidental spills. Precise switching facilitates customized baking and broiling temperatures within close tolerances.

Causes signaling relay failure related to prolonged thermal stresses from consistent oven use. Impacts of electric abnormalities could also cause malfunctions over time.

Symptoms requiring replacement include:

• Inability to power top or bottom heating elements during cycles
• Erratic temperature fluctuations beyond adjustment capabilities
• Buzzing or loud clicking noises emitting from the relay housing

This OEM Bosch replacement part is also compatible with Thermador, Gaggenau, and select Kenmore built-in ovens employing identical temperature modulation methods. Reinstallation ensures continued customizable and safe cycle performance.


Oven not heating or controls unresponsive? This cable harness restores power connections between controls and components, fixing intermittent failures.

Replace your wall oven door latch if the door won't stay closed, the oven won't start, or cycles are interrupted. Restores proper door closure and locking.

Secures wall oven panels and components in place. Replace this mounting bracket when the original is broken, bent, or missing, causing loose panels or misalignment.

Wall oven won't heat or stops heating mid-cycle? A faulty thermal fuse is often the cause. This safety component prevents overheating damage.

This cable harness connects key electrical components to restore power and signal flow in the appliance. It replaces a damaged or faulty wiring harness to help return controls and components to normal operation. What it does:

• Carries power and control signals between the control board and components
• Replaces frayed, burned, or broken wires that cause intermittent or no operation
• Common symptoms it can address: appliance won't start, controls unresponsive, intermittent cycles, or error codes related to open/shorted circuits
• Helps ensure secure connector mating and correct signal routing when installed properly

• Disconnect power at the breaker or unplug the appliance before starting any repairs
• Compare the new harness to the old one and follow the appliance wiring diagram for correct routing and connector placement
• Secure connectors fully; avoid sharp bends or pinching the wires during reassembly

Wall oven not heating or displaying errors? A faulty cable harness often causes electrical failures. This internal wiring assembly typically requires 1-2 hours to replace with moderate skill.

Wall oven not heating or display not working? This cable harness connects electrical components. Common fix for power issues. DIY repair in 30-45 minutes.
