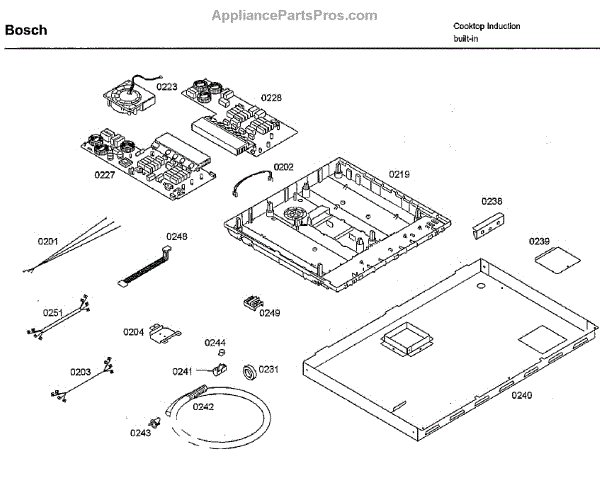

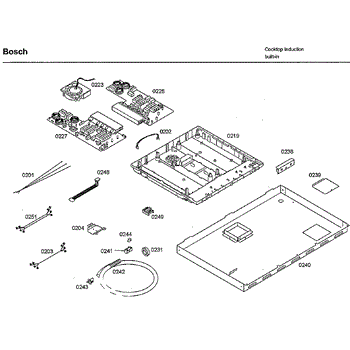

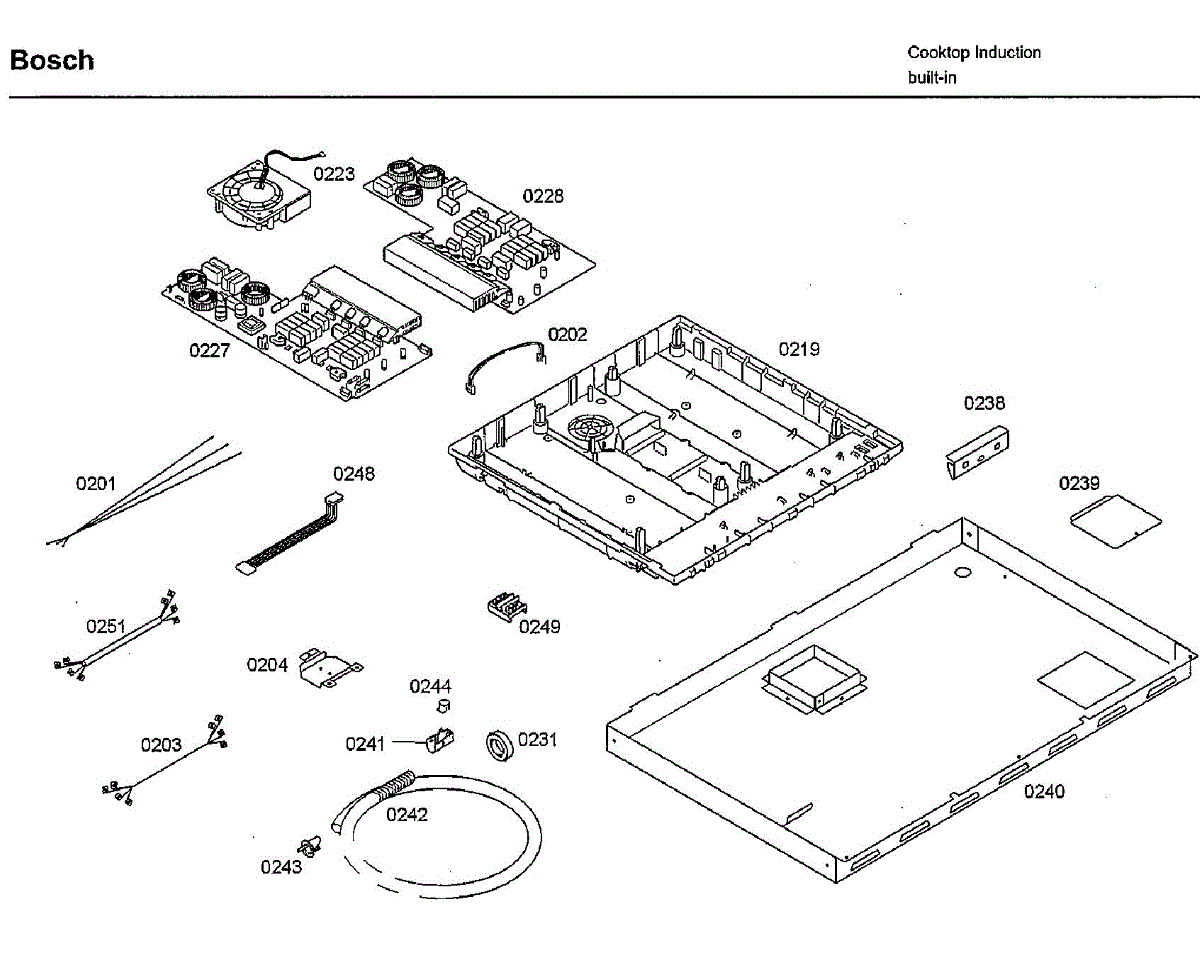

Parts for Bosch NIT5065UC/21: Pcb Asy Parts

This electronic control board manages the appliance's user interface and automatic functions, restoring reliable cycle control and communication between sensors, timers, and actuators for normal operation. What it does:

• Receives input from buttons and selectors to start and control cycles
• Controls power to motors, valves, heaters, and other components via relays or triacs
• Monitors sensors and switches to manage timed and safety functions
• Helps display status and error codes when present

• One electronic control board (main control)

• Disconnect power before servicing to avoid shock or damage
• Handle the board by its edges and avoid static discharge; use anti-static precautions
• Refer to the appliance service manual for wiring and mounting details

This flexible exhaust air hose routes vented air from the appliance to the household vent, restoring proper airflow and preventing leaks. Use it when the original hose is cracked, collapsed, or not sealing correctly. What it does:

• Directs exhaust air from the appliance to the home vent to maintain proper ventilation
• Restores airflow when a damaged hose causes reduced venting or longer run times
• Helps stop air leaks that can cause heat buildup, moisture, or unwanted noise
• Keeps the vent path sealed when secured with proper clamps

• Disconnect power and gas before servicing the appliance.
• Remove the old hose, note routing, and slide the replacement into place without kinking.
• Secure both ends with appropriate clamps; confirm a snug, leak-free fit.

A small chassis knockout protector that shields wiring and components where factory knockout holes are removed. Helps prevent wire abrasion and keeps openings tidy for safe appliance operation. What it does:

• Fits into a chassis knockout to protect wiring from sharp sheet-metal edges
• Helps prevent cable chafing and short circuits by covering exposed openings
• Keeps out debris while allowing routed harnesses to pass through the cabinet
• Commonly used where service or modifications require a sealed knockout

• One chassis knockout protector

• Install by pressing the protector into the knockout until it seats securely
• Ensure wiring is routed through the protector and not pinched between metal edges
• Disconnect power before servicing appliance to avoid shock or injury
