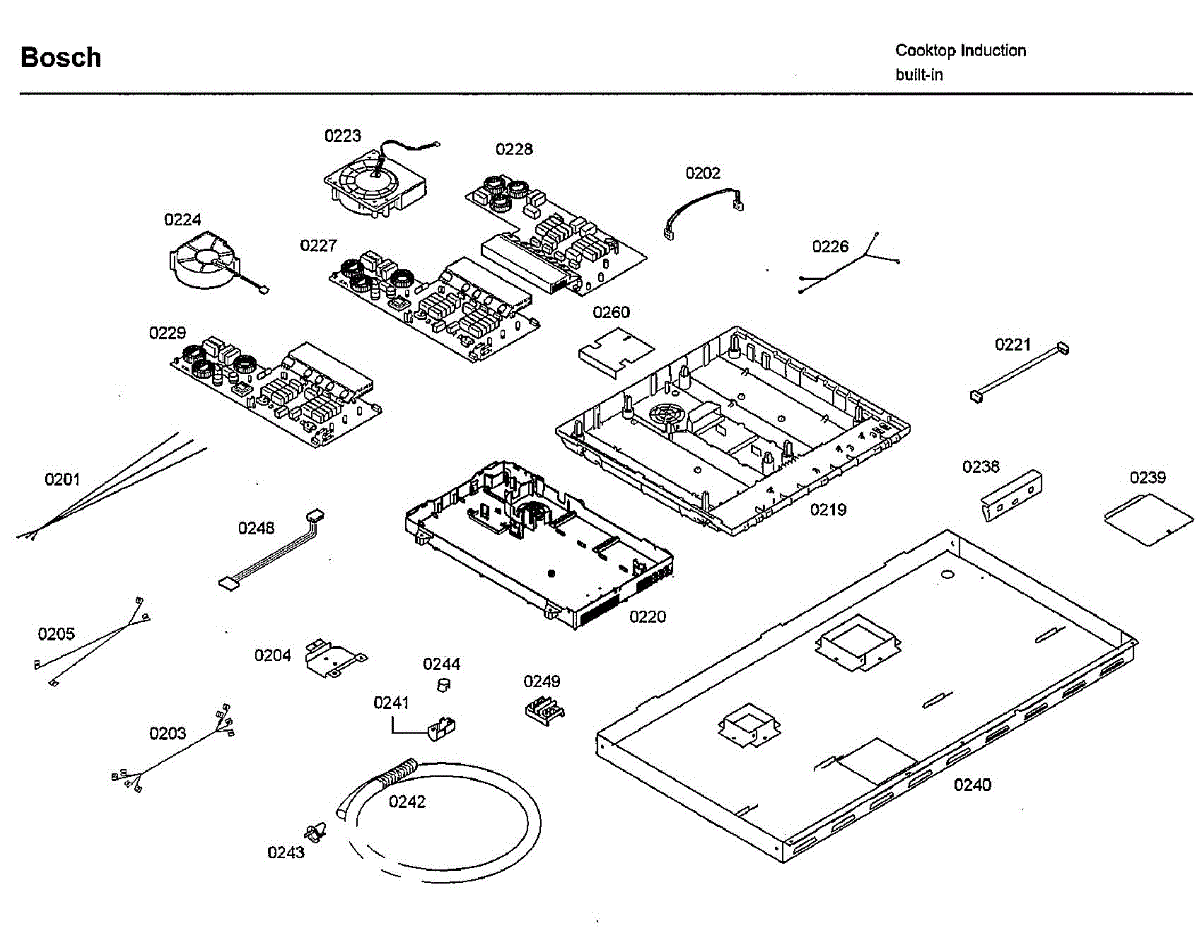

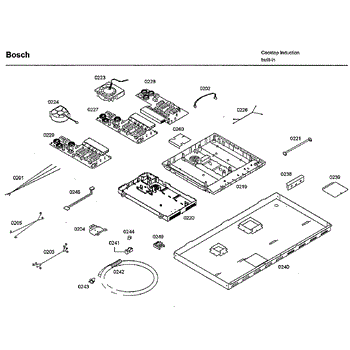

Parts for Bosch NIT8665UC/20: Pcb Asy Parts

This wiring connection restores the electrical link between components, letting your appliance send power and signals where they're needed. Replacing a failed connector helps stop intermittent power, communication errors, or non-operating circuits. What it does:

• Joins wiring harnesses or component leads to complete electrical circuits safely
• Restores consistent power and signal flow to affected parts
• Commonly replaced for symptoms like intermittent operation, no power to a module, or electrical fault codes
• Designed to mate with factory wiring and mounting points for a secure fit

• Disconnect power to the appliance before inspecting or replacing electrical parts
• Confirm connector orientation and secure seating; avoid forcing terminals
• Inspect wiring and terminals for damage; replace if corroded or frayed

This electronic control board is the appliance's primary control module that manages cycles, user inputs, and timed operations. Replacing a faulty board restores reliable control and responsiveness to the appliance's electronic functions. What it does:

• Receives input from the user interface and sensors, then directs motors, valves, heaters, and other components.
• Controls cycle timing, start/stop functions, and status indicators.
• Commonly replaced when the appliance won't start, displays error codes, or shows unresponsive buttons.
• Helps resolve intermittent operation, unexpected shutoffs, or incorrect cycle behavior linked to control failures.

• Disconnect power before starting—electrical shock risk. If hard-wired, switch off breaker.
• Handle the board by its edges and avoid static discharge; use an anti-static wrist strap if available.
• Take photos of wiring before removal to ensure correct reconnection; secure all connectors firmly.

This electronic control board manages the dishwasher's cycles and user interface, restoring proper control when the original board fails. It replaces a failed or malfunctioning main PCB to return the appliance's electronics to working order. What it does:

• Receives input from the control panel and sends commands to valves, pumps, and motors
• Monitors and coordinates cycle steps for proper operation
• Can trigger error codes or interrupt normal cycle progression

• One electronic control board (main PCB)

• Disconnect power to the appliance before servicing to avoid shock
• Handle the board by edges and avoid static discharge—use ESD protection if available
• Verify connectors match and seat fully; do not force connections

This flexible exhaust air hose routes vented air from the appliance to the household vent, restoring proper airflow and preventing leaks. Use it when the original hose is cracked, collapsed, or not sealing correctly. What it does:

• Directs exhaust air from the appliance to the home vent to maintain proper ventilation
• Restores airflow when a damaged hose causes reduced venting or longer run times
• Helps stop air leaks that can cause heat buildup, moisture, or unwanted noise
• Keeps the vent path sealed when secured with proper clamps

• Disconnect power and gas before servicing the appliance.
• Remove the old hose, note routing, and slide the replacement into place without kinking.
• Secure both ends with appropriate clamps; confirm a snug, leak-free fit.

A small chassis knockout protector that shields wiring and components where factory knockout holes are removed. Helps prevent wire abrasion and keeps openings tidy for safe appliance operation. What it does:

• Fits into a chassis knockout to protect wiring from sharp sheet-metal edges
• Helps prevent cable chafing and short circuits by covering exposed openings
• Keeps out debris while allowing routed harnesses to pass through the cabinet
• Commonly used where service or modifications require a sealed knockout

• One chassis knockout protector

• Install by pressing the protector into the knockout until it seats securely
• Ensure wiring is routed through the protector and not pinched between metal edges
• Disconnect power before servicing appliance to avoid shock or injury
