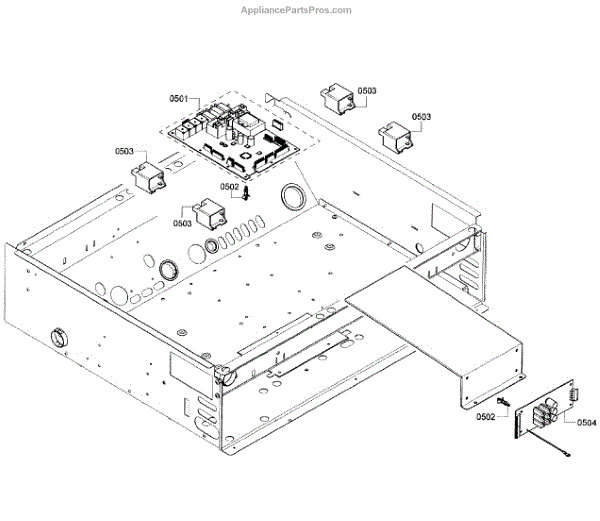

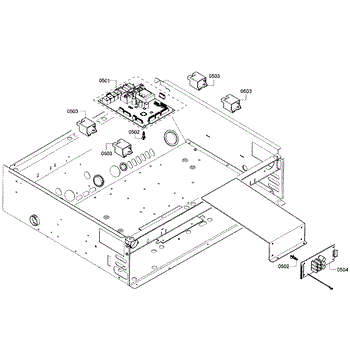

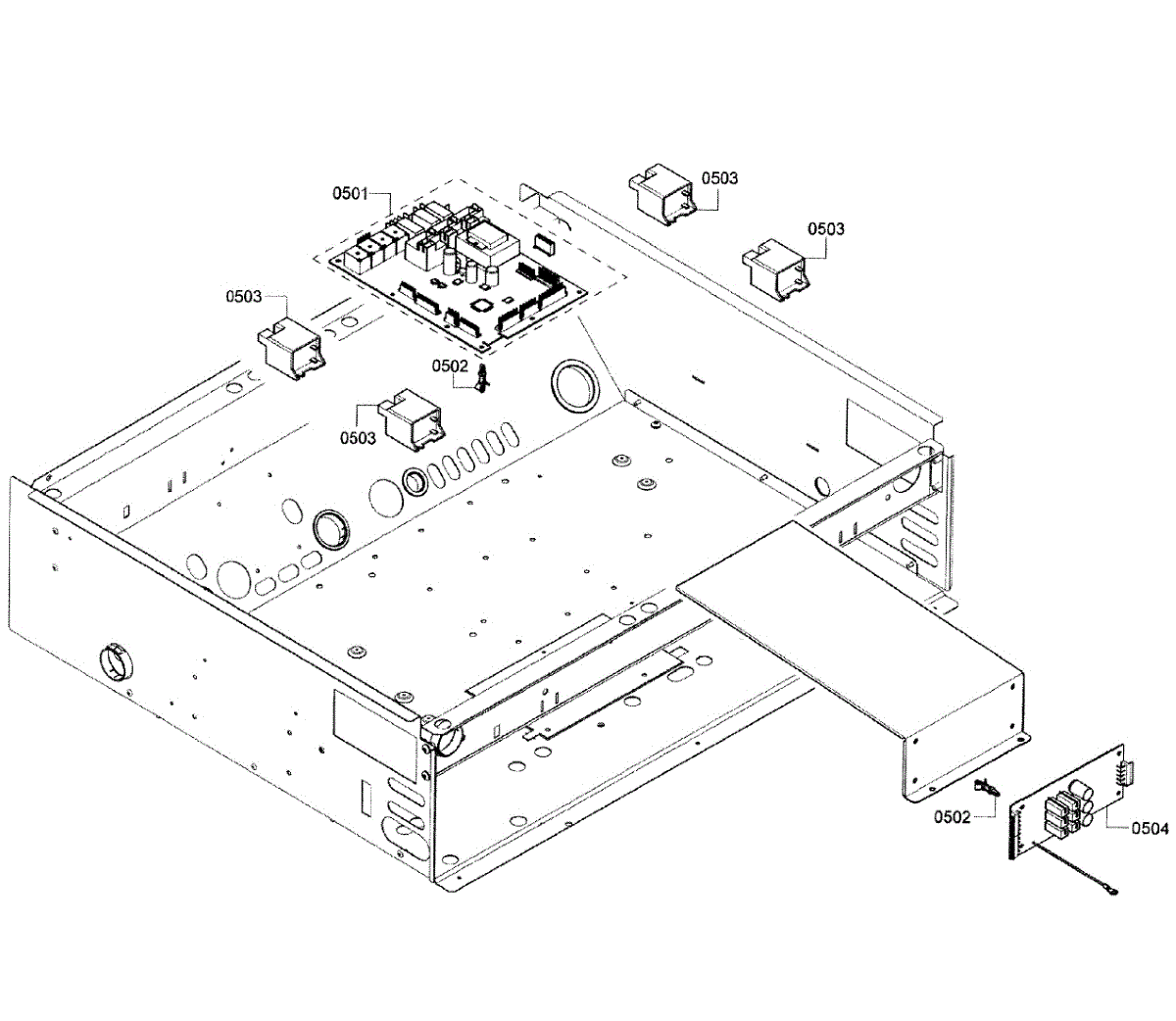

Parts for Thermador PRD304GHU/06: Pcb's Layout Parts

Fix an oven that won't heat, turns off unexpectedly, or cycles on and off. This control board manages heating elements and temperature regulation.

Small hardware pin that secures or pivots components in gas ranges and cooktops. Replace if worn, missing, or broken to restore proper alignment.

Gas burners won't light or keep clicking? This spark module generates consistent sparks to reliably ignite cooktop burners for safe operation.

This cable harness routes power and signals between key components to restore reliable electrical connections and normal appliance operation. Replace a damaged harness to fix intermittent power, control failures, or non-responsive functions. What it does:

• Provides the multi-conductor wiring path that links control boards, sensors, and motors
• Carries low-voltage signals and/or line power needed for normal appliance functions
• Commonly replaced when wires or connectors are damaged, burned, or corroded
• Can resolve symptoms such as intermittent operation, no power to components, or control errors

• Disconnect all power before accessing wiring or controls to avoid shock
• Route harness along original clips and channels to prevent pinching or chafing
• Inspect connectors for damage and replace if terminals are loose or burned

If your gas range burners won't light or ignite intermittently, a worn ignition cable may be preventing spark delivery. Restores reliable ignition.
