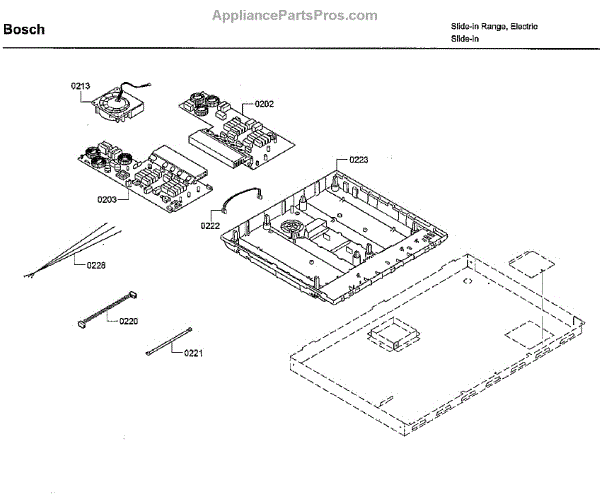

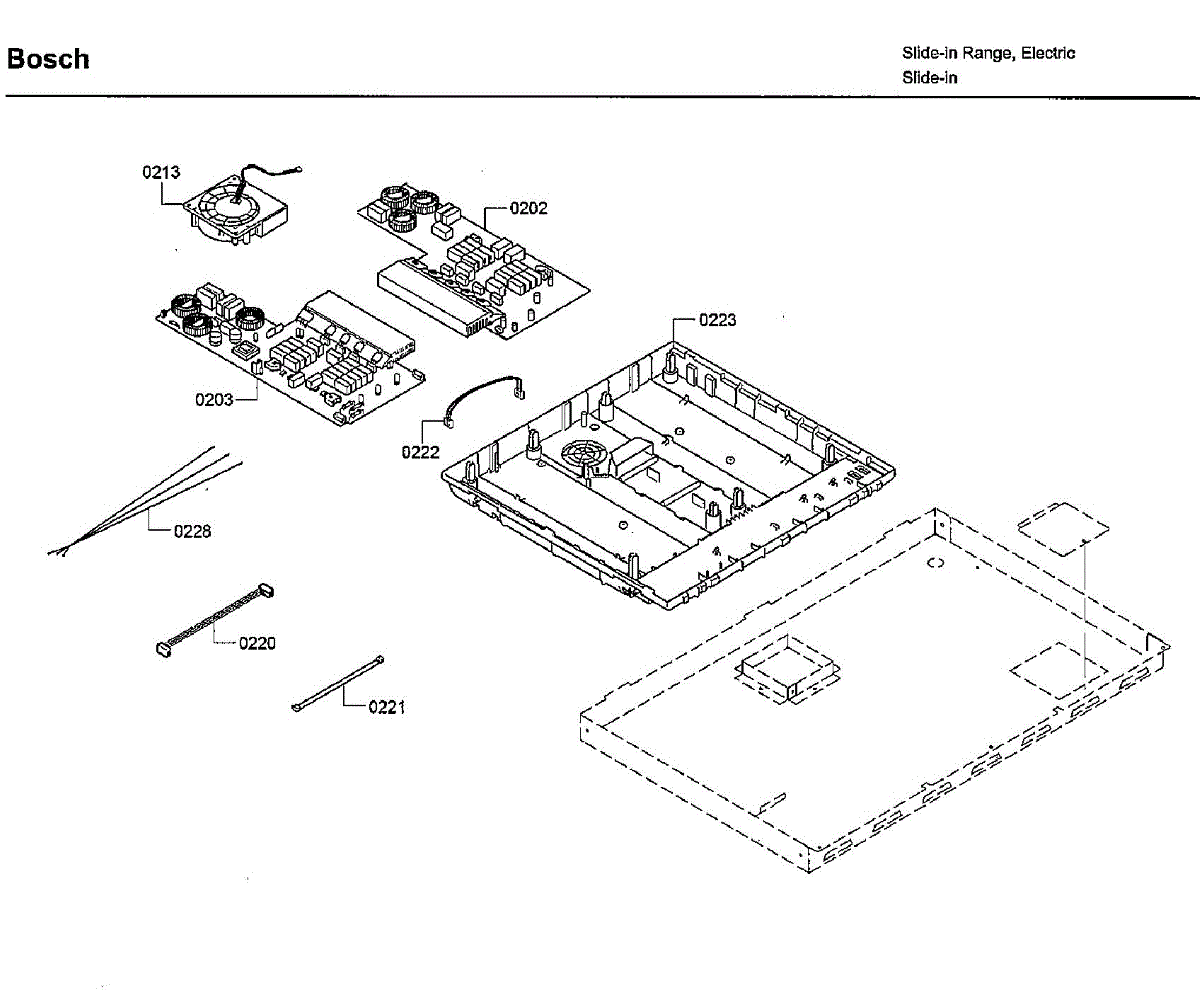

Parts for Bosch HIIP054U/06: Pcb's Parts

This electronic control board manages the appliance's user interface and automatic functions, restoring reliable cycle control and communication between sensors, timers, and actuators for normal operation. What it does:

• Receives input from buttons and selectors to start and control cycles
• Controls power to motors, valves, heaters, and other components via relays or triacs
• Monitors sensors and switches to manage timed and safety functions
• Helps display status and error codes when present

• One electronic control board (main control)

• Disconnect power before servicing to avoid shock or damage
• Handle the board by its edges and avoid static discharge; use anti-static precautions
• Refer to the appliance service manual for wiring and mounting details
