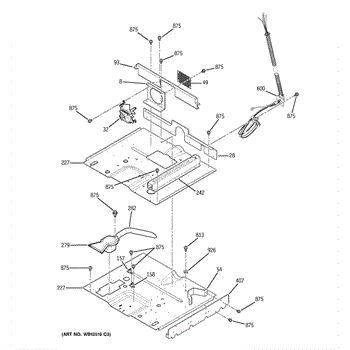

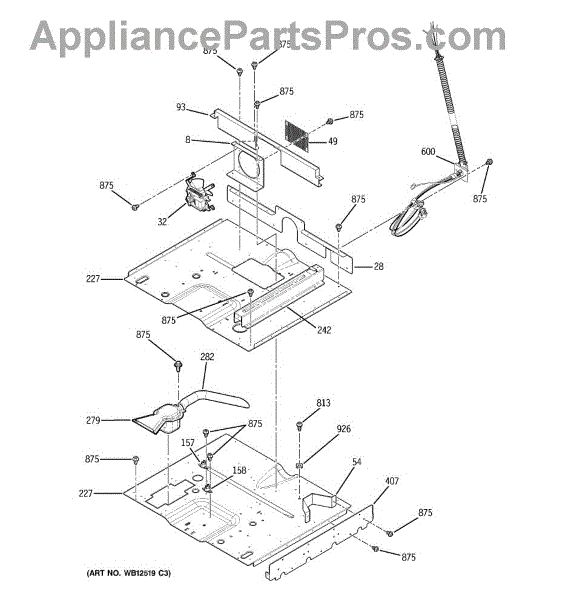

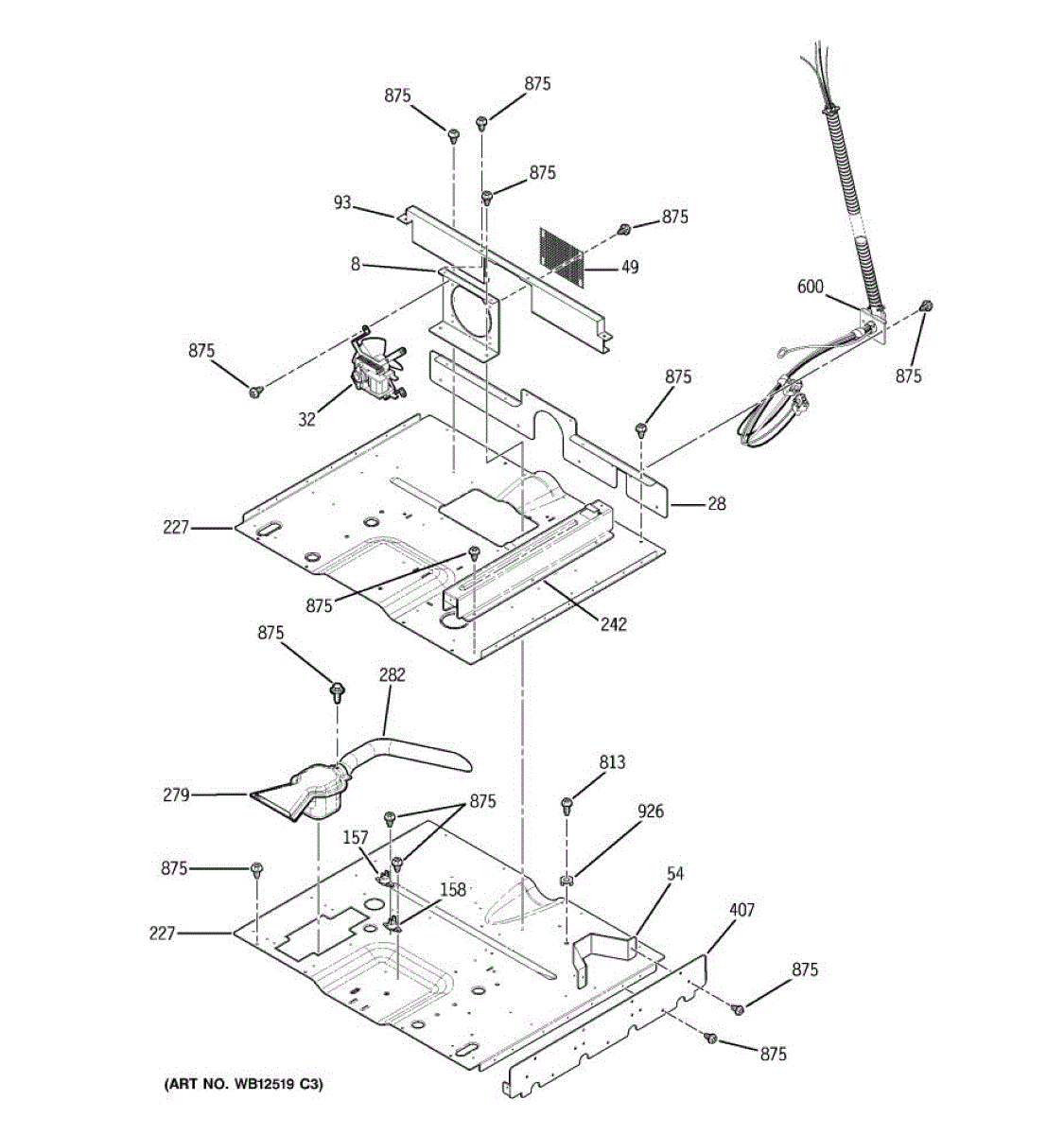

Parts for Ge JKP86BF7BB: 05 - Pedestal Parts

This convection fan assembly circulates heated air inside the oven cavity for more even baking and roasting. Replacing a worn or noisy fan restores proper airflow and helps maintain stable temperatures during convection cooking.

• Moves hot air across the cavity during convection modes for uniform results
• Helps the oven recover heat faster and reduces hot/cold spots
• Common symptoms of failure: loud humming, squealing, or rattling; fan not spinning; poor or uneven convection performance
• Can cause longer cook times or inconsistent browning when not working properly

• Disconnect power at the breaker and allow the appliance to cool completely
• Access the convection fan from the rear panel or interior back cover, depending on model; retain all screws and shielding
• Note wire locations and mounting orientation; install the new assembly in the same position
• Before restoring power, ensure the blade spins freely and does not contact the shroud or liner

The Hi-Limit Switch is an OEM replacement part for GE ranges. It is a safety component responsible for monitoring internal oven temperatures. The hi-limit switch helps prevent overheating by detecting when excessive heat has built up inside the oven cavity. It will automatically cut power to the bake/broil elements if temperatures rise too high.

Causes of a bad hi limit switch can include normal failure after years of exposure to heat, or issues with the electronic components or calibration.

Symptoms of a bad hi-limit switch include:

• The oven failing to heat up or bake/broil food properly
• Frequent thermal cut outs requiring the oven to be unplugged
• Delays in the oven reaching the set temperature
• Oven will not turn on

This is a genuine OEM part that works for some models of GE, and Hotpoint models.

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

Package of 12

Black. 8-18 AB HXW 3/8
