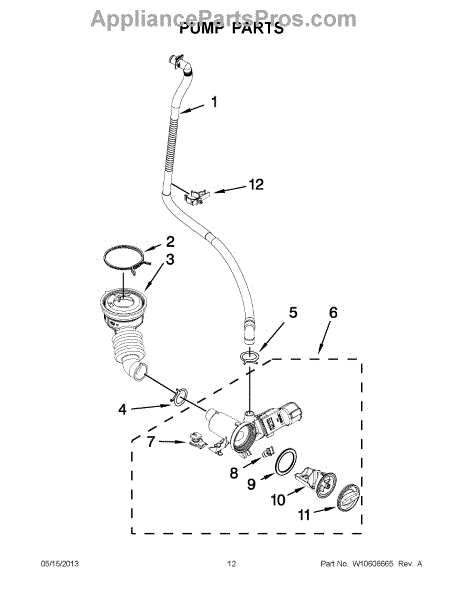

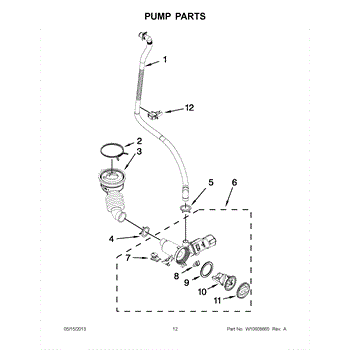

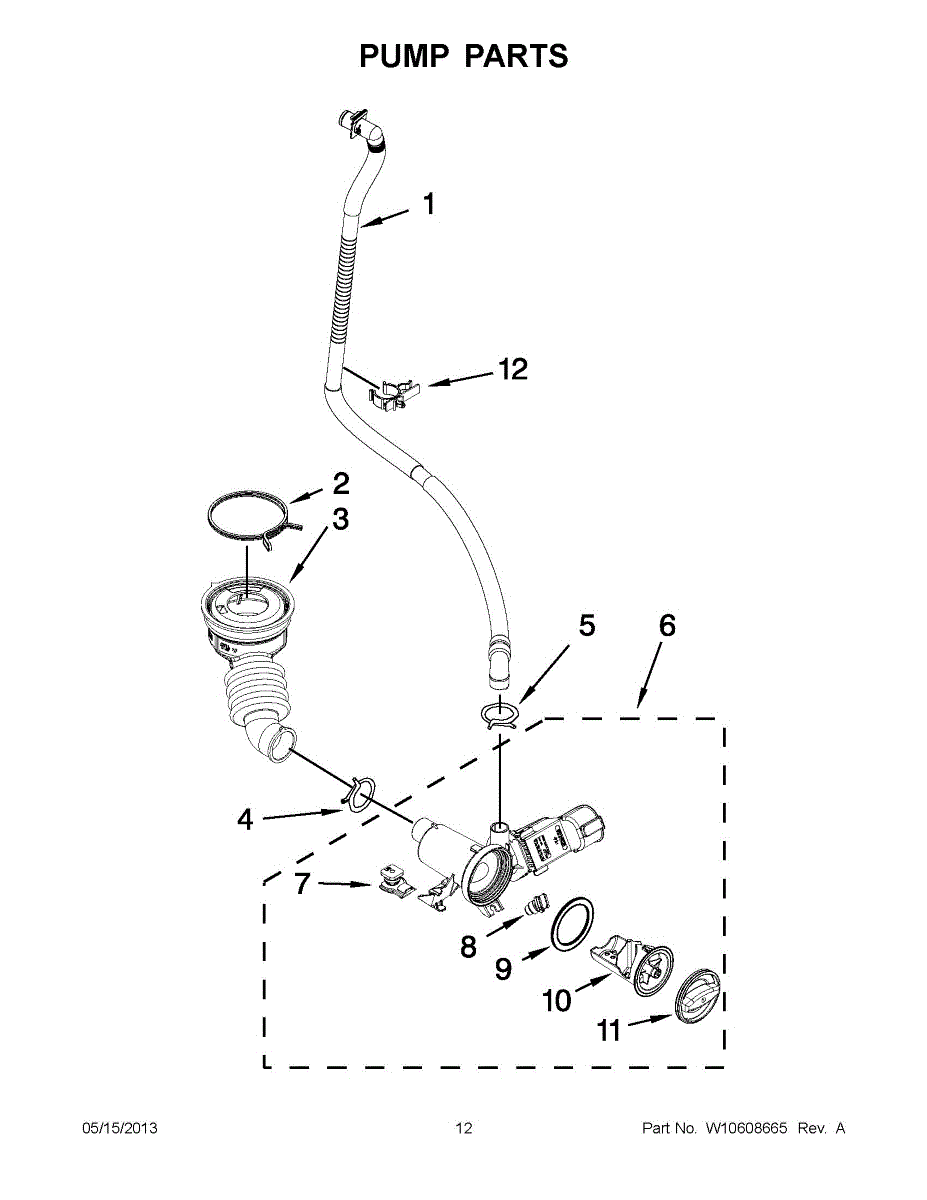

Parts for Whirlpool WFW80HEBC1: 06 - Pump Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

The Internal Drain Hose is an OEM part for Whirlpool washing machines. This part transports wastewater from the washer tub to the drain pump and out of the appliance, ensuring efficient removal of water during the drain cycle.

Causes of a bad internal drain hose can include wear and tear from regular use, blockages from debris or lint, or physical damage such as cracks, holes, or kinks from improper handling or installation.

Symptoms of a bad internal drain hose include:

• Water not draining properly from the washer
• Leaks or water pooling around the base of the washing machine
• Error codes related to drainage issues
• Visible damage such as cracks, holes, or kinks in the hose

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This 2-pack of dryer vent clamps secures the vent hose to the dryer outlet and the wall/vent hood. A tight connection helps maintain airflow, reduce lint leaks, and keep the duct from slipping off during use.

• Tightens around the vent hose to hold it securely to the dryer exhaust collar or exterior vent
• Helps prevent hose detachment, air leaks, and lint escaping at the connection
• Supports proper exhaust airflow by keeping connections sealed and stable
• Common symptoms pointing to replacement: hose won't stay on, visible gaps or lint around fittings, rattling at the vent, or longer dry times from poor ventilation

• Disconnect power; for gas dryers, shut off gas supply before moving the appliance
• Slide a clamp over the hose, seat the hose fully on the collar, position clamp over the fitting, and tighten with a screwdriver or nut driver
• Do not overtighten; avoid crushing thin foil ducting; ensure the hose is straight and not kinked
• Restore power and verify strong airflow at the exterior exhaust

The Hose is an OEM part for Whirlpool washing machines. This hose is responsible for carrying water to and from the washing machine during the wash and rinse cycles. It is designed to withstand the pressure and temperature changes associated with the washing process, ensuring a reliable and leak-free connection.  IF WASHER HAS AN ECO BALL, THE BALL IS NOT NEEDED AND MUST BE DISCARDED WHEN THE NEW HOSE IS INSTALLED.

Over time, hoses can degrade due to wear and tear, exposure to harsh water conditions, or repeated bending and flexing. Additionally, damage from accidental mishandling or improper installation can also cause hose failure.

Symptoms of a bad hose include:

• Leaks or puddles of water around the washing machine
• Reduced water flow or pressure
• Visible cracks, bulges, or wear on the hose
• Error codes related to water supply issues

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This spring-style hose clamp secures flexible water hoses to fittings to help prevent leaks and keep connections tight. It's a simple replacement that restores a proper seal at the hose connection. What it does:

• Compresses around a hose to hold it firmly on a tailpiece or barb
• Helps stop leaks or drips caused by loose or worn clamps
• Restores proper clamping force when original clamp is corroded or stretched
• Common symptom: visible water at the hose connection or water pooling under the appliance

• One spring-style hose clamp

• Disconnect power and shut off the water supply before servicing
• Slide clamp onto hose, push hose fully onto the fitting, then position clamp over the barb
• Use pliers to expand the clamp, seat it, and release to lock; avoid over-compressing the hose
• Replace any damaged hoses or fittings and test for leaks after restoring water and power

The Spring Tension Hose Clamp is an OEM part for Whirlpool washing machines. It is designed to secure hoses in place, preventing leaks by maintaining consistent tension on the hose connections.

Over time, spring tension hose clamps can lose their effectiveness due to metal fatigue, corrosion, or damage from frequent tightening and loosening. This can lead to leaks and improper hose connections.

Symptoms of a bad spring tension hose clamp include:

• Water leaks around hose connections
• Loose or disconnected hoses
• Unusual noises or vibrations during operation
• Water pressure issues within the washing machine

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This water pump assembly circulates water through the appliance during active cycles. It restores proper water movement when the original pump becomes weak, noisy, or fails, helping maintain consistent washing performance and coverage. What it does

• Circulates water through the internal system as designed
• Helps distribute detergent and cleaning action evenly
• Symptoms of a failing pump include little/no water movement and poor wash results
• May produce loud humming/grinding from the pump area or show small leaks
• Some models may display error codes related to water circulation

• 1 water pump assembly

• Disconnect power and shut off water before servicing
• Access location varies by model; remove panels as needed and prepare for residual water
• Transfer hoses and clamps to the new pump; ensure tight, leak-free connections and correct orientation
• Reconnect wiring securely, then run a test cycle and check for leaks

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This rubber grommet cushions and protects a component by isolating vibration and preventing metal-to-metal contact. It helps reduce noise and wear for a more stable, quieter appliance. What it does:

• Cushions and isolates vibration between parts to reduce noise
• Protects wiring, hoses, or mounting studs from chafing and wear
• Keeps components properly seated and aligned during operation
• Worn or damaged grommets can cause increased vibration, rattling, or visible cracking

• Disconnect power (and water if applicable) before beginning any repair
• Inspect the surrounding area and the mating part for damage before installing the grommet
• Replace the grommet if torn, compressed, or hardened; press into place by hand or with a blunt tool to avoid damage

This flexible door boot gasket seals the dishwasher door to prevent water leaks and keep hot wash water inside the tub. It restores a tight, even fit between the door and tub for reliable operation. What it does:

• Creates a watertight seal along the door opening to reduce or stop leaks
• Helps maintain proper wash temperatures and simplify drying performance
• Prevents soil and water from escaping during wash cycles
• Worn, torn, or flattened gasket may cause visible leaks or pooling at the base

• One replacement door boot gasket

• Disconnect power and water supply before beginning any service
• Remove the dishwasher door or inner door panel per manufacturer instructions to access the gasket
• Align the gasket evenly around the door opening without twisting or over-stretching
• Inspect door and tub surfaces for damage and test for leaks after reassembly

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.
