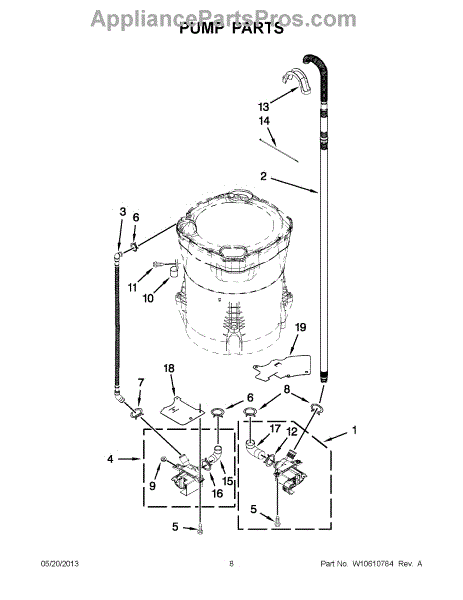

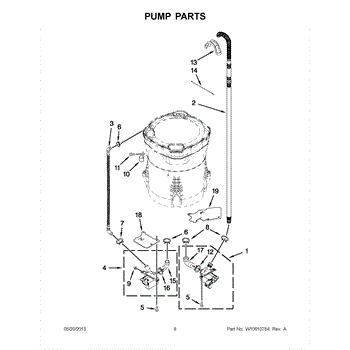

Parts for Whirlpool WTW8500BC0: 04 - Pump Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

The Drain Pump is an OEM part for Whirlpool top-loading washing machines. Located near the bottom center of the machine, it actively pumps water out of the washer tub at the end of each cycle.

The pump motor spins an impeller chamber to push water through the drain hose and out of the home. Causes of failure include clogging from mineral buildup or fabric fibers within the pumping components. Over time, motor windings experience excess heat and may burn out from consistent drainage cycles.

Symptoms of a faulty drain pump are:

• Remaining water at the bottom of the tub after washing
• Puddles or splashing near the machine during drainage
• Grinding or screeching noises when the pump should be operating

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This drain hose carries used water from your appliance to the home drain during and after the cycle. Replacing a damaged or clogged hose restores proper draining and helps prevent leaks and standing water.

• Routes wastewater from the appliance outlet to the household drain
• Maintains a sealed, unobstructed path for efficient draining
• Helps prevent leaks from splits, brittleness, or loose connections
• Commonly resolves slow/no drain, water left in the tub, or water backing up
• Visible kinks, cracks, or blockages in the hose indicate replacement is needed

• Disconnect power and shut off water supply before servicing
• Place a towel or shallow pan to catch residual water when removing the old hose
• Note original routing and clamp locations; avoid kinks or sharp bends during install
• Fully seat and tighten connections, then run a brief drain to check for leaks

This recirculation hose routes wash water from the dishwasher's circulation pump back into the spray system. Replacing a cracked or leaking hose helps restore strong spray performance and prevents water from escaping under the unit.

• Carries circulating wash water between the pump and the tub/spray system during the wash cycle
• A damaged or clogged hose can cause leaking, weak spray, or poor cleaning results
• Common signs include water on the floor, residue on dishes, or visible cracks/kinks in the hose
• Restores proper wash circulation and helps prevent leaks

• Disconnect power and shut off water supply before servicing
• Pull the dishwasher out to access the base; place a towel or pan to catch residual water
• Note hose routing; transfer and correctly position existing clamps/fittings
• After installation, run a short cycle and check all connections for leaks

This recirculation pump assembly drives water through the appliance's circulation system, maintaining steady flow and pressure for proper operation. Replace it if water won't circulate, performance drops, or the unit becomes noisy or shows a pump-related error.

• Moves water through internal channels to maintain consistent circulation and pressure
• Helps ensure effective cleaning/operation during wash or circulation steps
• Common failure symptoms: no/weak water movement, poor results, humming or grinding noises
• Trigger pump/circulation error messages or cause cycles to stall

• Disconnect power and shut off water supply before servicing
• Access is typically from the bottom/front; remove toe-kick or lower panels as needed
• Expect residual water; protect the area and transfer clamps/fittings from the old pump if required
• Seat any seals properly, reconnect hoses/wiring securely, and test for leaks and proper circulation

This factory fastener secures appliance panels and components for a tight, rattle-free fit. Replace a missing, stripped, or corroded screw to keep assemblies aligned and performing as intended.

• Fastens panels, brackets, or assemblies in place
• Helps reduce vibration and rattling caused by loose hardware
• Maintains proper alignment of parts to prevent premature wear
• Common signs you need it: missing screw, loose panel, vibration/buzzing noises, or hardware that won't tighten

• Disconnect power; for gas or water-connected appliances, shut off supply lines before service
• Match the screw to the original; verify size, length, and thread before installation
• Start threads by hand to avoid cross-threading; use the correct driver bit
• Snug only—do not overtighten, especially into plastic or thin sheet metal

The Hose Clamp is an OEM part for Whirlpool washing machines. This clamp secures the hose in place, ensuring a tight connection and preventing leaks during operation. It is essential for maintaining the integrity of the washing machine's water system, securing hoses that carry water to and from the washer.

Common causes of a bad hose clamp include rust, physical damage, or loosening from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Water leaks around the hose connection points
• The hose slipping off the fitting
• Visible rust or wear on the clamp
• Difficulty in tightening the clamp to secure the hose

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

This hose clamp secures dishwasher hoses to fittings and ports to maintain a tight, leak-resistant seal. Replacing a worn clamp helps prevent drips and loose connections that can cause water under the unit.

• Secures drain or circulation hose to the pump, sump, or other dishwasher fittings
• Helps maintain a watertight seal at hose connection points
• Can help resolve water dripping from a hose joint or a loose hose
• Replace if corroded, deformed, cracked, or no longer holds tension

• Disconnect power and turn off the water supply before servicing
• Place a towel or shallow pan to catch residual water when removing hoses
• Fully seat the hose on the fitting, position the clamp over the barb/connection, and secure firmly
• After reassembly, run a brief fill/drain and check all connections for leaks

The Hose Clamp is an OEM part for Whirlpool washing machines. This clamp secures the hose in place, ensuring a tight connection and preventing leaks during operation. It is essential for maintaining the integrity of the washing machine's water system, securing hoses that carry water to and from the washer.

Common causes of a bad hose clamp include rust, physical damage, or loosening from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Water leaks around the hose connection points
• The hose slipping off the fitting
• Visible rust or wear on the clamp
• Difficulty in tightening the clamp to secure the hose

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This replacement screw secures panels, brackets, and other components in your appliance to keep them aligned and rattle-free. Replacing worn, stripped, or missing hardware restores a tight fit and helps maintain safe, quiet operation.

• Fastens panels, brackets, or internal parts to the cabinet/frame
• Helps maintain alignment to reduce vibration and rattling
• Replaces lost, stripped, or corroded screws
• Common symptoms: loose panels/trim, rattles, or a screw that won't tighten

• Disconnect power; shut off water or gas if applicable
• Match thread and length to the original; replace one at a time to keep alignment
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten, especially into plastic or thin sheet metal

The Hose Clamp is an OEM part for Whirlpool washing machines. This clamp secures the hose in place, ensuring a tight connection and preventing leaks during operation. It is essential for maintaining the integrity of the washing machine's water system, securing hoses that carry water to and from the washer.

Common causes of a bad hose clamp include rust, physical damage, or loosening from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Water leaks around the hose connection points
• The hose slipping off the fitting
• Visible rust or wear on the clamp
• Difficulty in tightening the clamp to secure the hose

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

The Tub to Circulation Pump Hose is an OEM replacement part for Whirlpool washing machines. This hose provides a direct connection between the tub and circulation pump during wash cycles. The hose is responsible for transporting water from the tub to the circulation pump and spinning basket assembly.

Causes of a bad tub to circulation pump hose can include cracking, kinking or collapse of the inner lining. Wear and environmental factors like mineral buildup can weaken it over time.

Symptoms of a bad hose include:

• Water leaks within or around the washing machine
• The washer fails to fill or drain properly
• Reduced water pressure impacting cleaning performance

This genuine OEM Whirlpool part is compatible with brands like Maytag, KitchenAid, and more, it ensures long-lasting performance.

This hose clamp secures a flexible hose to its fitting to help prevent leaks and hose blow-offs during operation. Replace a rusted, stripped, or distorted clamp to restore a tight, reliable seal at the connection point.

• Applies clamping force around a hose to hold it on a barb or stub fitting
• Commonly used on washer drain and tub-to-pump hose connections
• Helps stop drips at the joint and prevents the hose from slipping off
• Typical failure signs: leaking at the connection, clamp won't tighten, visible rust, broken/warped band

• Unplug the appliance and turn off water supply; expect some residual water
• Seat the hose fully on the fitting; place the clamp just behind the bead/barb
• Tighten until snug and secure; do not overtighten to avoid damaging the hose
• Run a short test cycle and recheck for leaks at the connection

The Tub to Drain Pump Hose is an OEM replacement part for Whirlpool washers. This hose is responsible for transporting water from the wash tub to the drain pump during the drain cycle.

Causes relate to mineral deposits stiffening the interior over multiple years, natural cracking from repeated flexion, or punctures from foreign objects inside tub impacting the material.

Symptoms of a defective hose involve:

• Puddling or flooded pockets of water left inside tub after draining
• Slow or inefficient drainage taking excessive time
• Leaks from cracked tub connections or along hose itself

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.
