Tony M. October 13, 2015 I have a Cabrio top load washer. When powered up and push start, it just beeps but shows no code. If I push the cancel button it just beeps.
1 Answer Hello Tony, We will need the model number from the units' I.D. tag for a specific diagnosis but it still sounds like you need to pull the fault codes from the diagnostic mode. The tech sheet will fully explain this procedure. It should be in a plastic ziplock bag adhered to the inside of the front panel of the cabinet, accessed by raising the main top. Read More...
Pete November 10, 2014 for Model Number WTW6200Sw2 After I got this washer, the control board failed and was replaced on warranty. Now that one seems to be failing. It fills (on "normal"), starts to wash for a short time, but then it stops and drains and shows the overload code. However, it isn't overloaded. I've tried it with practically no load and it still does it. After that happens I have to restart it again on the rinse/spin cycle, and it again goes to overload after it fills and runs for a short time. Finally I have to restart again it on drain/spin to get the clothes spun out and somewhat cleaner. If this is a problem with the main control board it doesn't say much for Whirlpool's quality control. Do you have any suggestions for me? Thank you, Pete
1 Answer Hello Pete. You can also get this from a Mechanical friction on drive mechanism, not allowing the basket to disengage. You need to check for articles of clothing between the inner and outer baskets. Bad bearings will also cause this. Read More...
Jason November 13, 2012 for Model Number Wtw6200sw2 I have a Whirlpool Cabrio washer and my cold water takes forever to fill up. I have checked the hoses for mineral deposits and have none. We recently moved to a new house and it still does this. I have already had the motherboard replaced in this machine. It wouldn't be a big deal but our clothes have detergent on them after they're clean. I have no codes showing up on my display. Do you have any suggestions??
1 Answer Hello Jason. If the water pressure to the unit is good, it sounds like you will need to replace the water valve WPW10059310 on the unit. Read More...
Paul October 15, 2012 for Model Number Centrl_Elec Hello. I only need the metallic sensor that fits inside the Encoder. That particular part was damaged, and I would like to avoid buying the whole new Circuit Board. Can you help? Thank you.

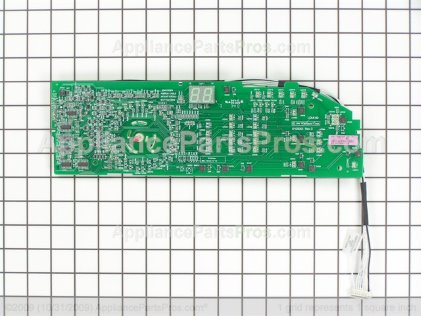

1 Answer Hello Paul! Unfortunately, the manufacturer does not supply the parts on the electronic control board WP8564288 separate from the board assembly. Sorry about that! Read More...
David H October 03, 2012 for Model Number WTW7340XW0 Is there any type of detail instructions available on removal and installation of AP4514631 circuit board? Thanks
David H October 03, 2012 for Model Number wtw73400xw0 I have a Cabrio top load washer, sometimes I have to push the satrt button 7 or 8 times to get the washer to start. There has never been any type of error code shown on the display. Would I have to replace the board to fix the problem?
1 Answer Hello David. Based on the information you provided, if the start button is not working, you will need to replace the user interface WPW10297397 in the unit. Read More...
Drew January 25, 2012 for Model Number wtw6300sw1 I have a whirlpool cabrio washing machine that i had stored in a storage unit for a year and was exposed to extreme heat and cold. Now i am trying to use it again and it is going through the wash cycle fine and draining the water out fine but when it tries to go into rinse cycle it doesnt do anything for a while and then throws up an "LD" error. i have tried unplugging it and replaceing the pump and that hasnt helped. Im almost sure its one of the control boards but not sure if it the green or gray one. If you could give me some advise I would appreciate it. thank you
1 Answer Drew, The "LD" or F32 error code, indicates > Long Drain > Ld flashes when the water level does not change after the drain pump is on. ? Is the drain hose or the drain pump clogged ? Is the drain hose height greater than 96" ? ? Is the pressure hose connection from the tub to the machine/motor control pinched or plugged?? Is the pump running? You will need to roll over the control panel, carefully disconnect the clear plastic air tube and blow in it to check and make sure it's not clogged with debris or deposits, from setting so long. Here's some help," 1. Unplug washer or disconnect power. 2. Remove the three hex-head mounting screws from the rear of the console.3. Lift the console off the cabinet, and roll it forward." Good Luck and Thanks Read More...
1 Answer Hello Jack. Based on the error code you got, you will need to replace the electronic control board WPW10189966. Hope this helps. Read More...
Santana Tetera August 07, 2011 for Model Number wtw6200sw0 During the cycle, my washing machine just stops and I have to go in there and reset it at least six times during each cycle. I'm not sure if I need the whole panel or just the control electric panel ? Thanks, SANTANA TETERA
1 Answer Santana, What is displayed on the control panel, when you have to reset the washer ? If there are no fail codes displayed, and you're sure you have at least 110 VAC to the washer, when it is running, you want to consider the control board WPW10189966. You should find the Technical Data Sheet attached to the inside of the front panel (after you raise the washer top panel) and you ran conduct the control tests. That way you'll have a better idea of the problem. Good Luck. Read More...
