Customer Questions and Answers for Timer (Electromechanical) by Whirlpool

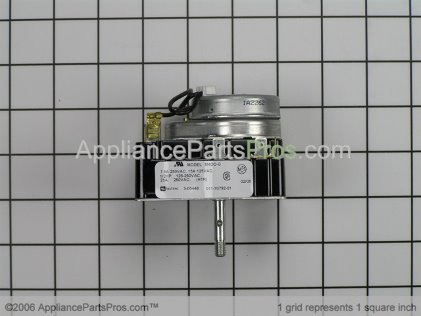

This electromechanical replacement timer restores timed cycle control for ovens, ranges and other Whirlpool appliances that use a mechanical timing mechanism. It provides reliable cycle advancement so settings run and finish as expected. What it does:

• Advances the appliance's timed cycles and signals control stages to start or stop heating/motor circuits
• Replaces a worn or non-running mechanical timer that no longer advances or keeps time
• Common symptoms fixed: timer knob won't turn, clock/timer doesn't run, cycles stop or fail to advance
• Works as the appliance's primary timing/control interface on compatible models

• One electromechanical timer assembly

• Disconnect power (unplug or switch off breaker) before removing the old timer to avoid shock
• Installation typically requires removing the control console or panel—handle trim and small parts carefully
• Avoid bending terminal tabs; ensure all wire connectors are fully seated
