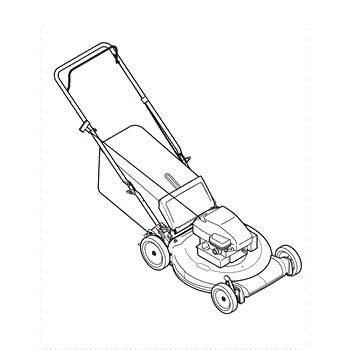

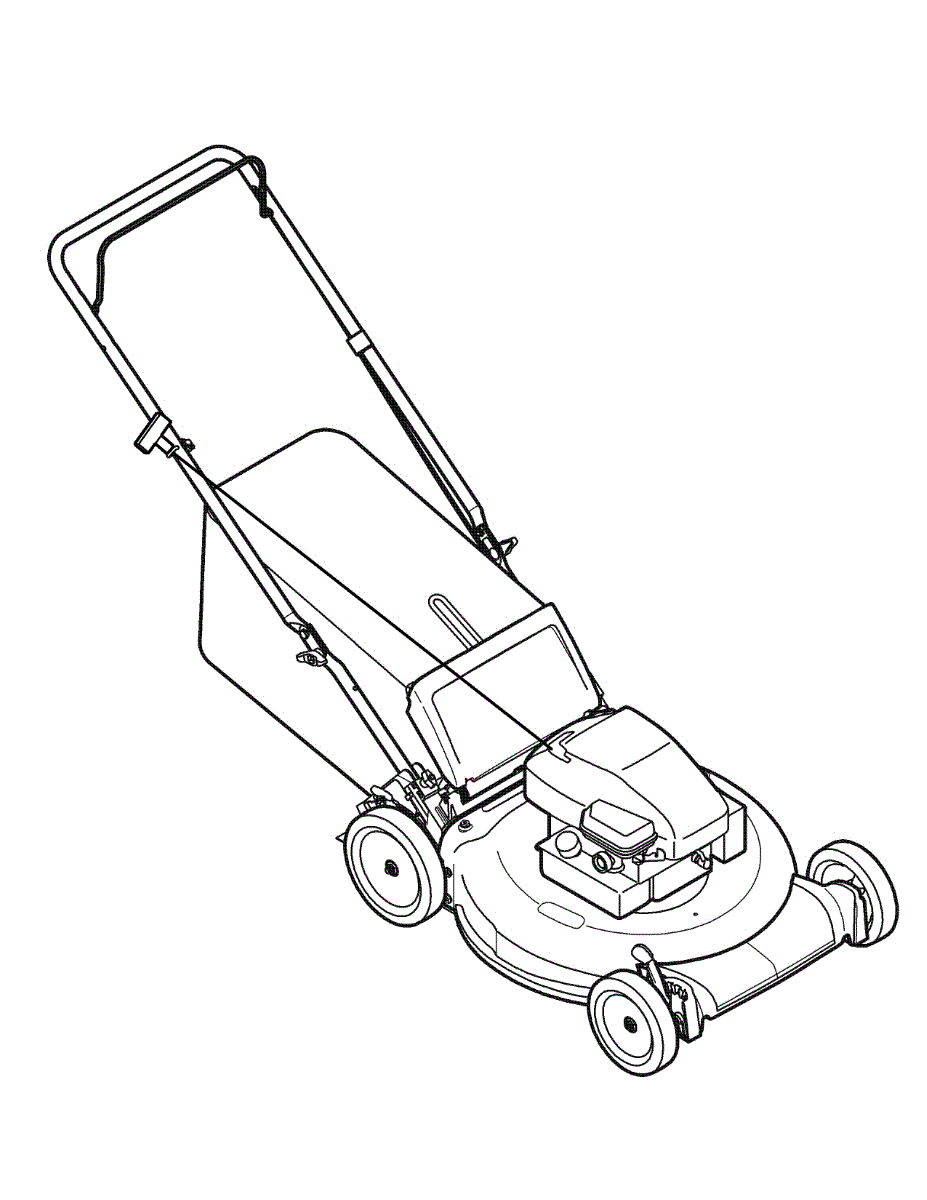

Parts for Platinum 11A-542Q724 / 2010: .Quick Reference 11A-542Q Parts

This blade adapter has a 25mm inner diameter and fits onto the blade of a variety of lawnmowers. The blade adapter allows the blade to connect to the spindle for proper performance. This blade adapter is made of metal. Regular wear and tear can cause the blade adapter to go bad or even split in half. When this happens, the blade adapter will need to be replaced.Before replacing the blade adapter, the lawnmower should be turned off and the spark plug wire needs to be disconnected. Turn the mower upside down to get access to the component. Use a socket set to remove the old blade adapter and replace it with the new component. Replace any other components, connect the spark plug wire, and test the machine before use. This component is sold on an individual basis. It is an authentic OEM replacement part that is directly sourced from the manufacturer. The blade adapter is made to be used with lawnmowers manufactured by MasterCut, Craftsman, Yard-Man, Cub Cadet, MTD, Troy-Bilt, and Yard Machines.

This 21-inch deck chute is an OEM-authorized part that is designed for use with select walk-behind push lawn mowers. The deck chute directs the grass clippings that are expelled by the mower blade as they are discharged from the deck. The mower deck cover should be removed and replaced with the chute, as they will not both fit on the hinge at the same time. This chute sees a lot of use and is subject to potential impact with the ground and various obstacles, which makes it prone to damage over time. It can even become detached and need a full replacement. This genuine OEM chute will provide the perfect fit for compatible mowers. This deck chute is manufactured to specific standards by MTD and can work with over 150 machines from RYOBI, Yard-Man, Yard Machines, Troy-Bilt, MTD, Bolens, Husky, and Cub Cadet. Refer to the parts diagram and owner's manual to confirm part number compatibility and location of the chute. This part is made of durable plastic material and is sold as a single unit. Hardware is not included with this part and will require an additional purchase. Always disable the engine before working near the mower blade for safety.

This wheel assembly is an authentic OEM replacement part sourced directly from the manufacturer for use on lawnmowers. This is a complete wheel assembly. The rim and wheel are one complete unit. If the lawnmower wheel is damaged and needs to be replaced, the entire piece can be taken off the mower and this assembly installed. Wheels can be damaged due to stationary objects that the mower runs over during operation or simply due to normal wear and tear. If the lawnmower is shaky or unstable during operation, the wheels should be inspected to determine which wheel needs replaced. It is a good idea to have an extra wheel assembly on hand so that the lawnmower can be repaired quickly if a wheel is damaged during use. Make sure the lawnmower is parked on a flat surface and that the spark plug is removed before repairing the wheel. Remove the nut holding the wheel on the shaft and set the nut aside. Place the new wheel on the shaft and use the nut to secure it. This wheel assembly is sold as an individual unit. It is designed for use on lawnmowers manufactured by Craftsman and MTD.

One of the essential parts of a walk-behind lawn mower is the gas cap. Many people don't notice that mower fuel caps are almost always rubberized or hard plastic and that they are black in color. These are specific design reasons for this. Other openings in the mower's body, especially the oil fill, are coded with different colors. This is meant to prevent users from pouring any incorrect substance into a container where it could damage the mower in any way. The rubber or hard plastic cap is meant both to be durable and non-conductive. In the past, mower caps were made of vented steel, which was conductive. Since a gallon of gasoline has the explosive potential of two sticks of dynamite, manufacturers have resorted to a number of wise safety measures to prevent accidents. As durable as they are, these caps do sometimes need to be replaced. If a cut or a heat-related deformation causes the cap to lose its water-tight capability, it must be replaced. Often caps are lost when users forget to replace them after gassing up. When choosing a replacement cap for a Troy-Bilt, MTD, or Yard-Man mower, make sure to select one like this OEM genuine certified replacement fuel cap. It's important to make sure the generator is not running when you replace the cover.

This control cable is a mower part that works with the control handle or lever bar that engages the wheels. It is also known as choke cable, brake cable, choke control, and control assembly cable. The inner wire total length is 53 inches, and the cable casing or conduit length is 40 inches. The control cable can stretch over time and it will result in a mower that moves forward slower than usual. A cable that's too corroded won't be capable of moving the drive lever. A broken or cut cable won't make the mower move. Here is a manufacturer-approved replacement control cable that's easy to install. A genuine OEM replacement part, this control cable is made to fit specific models of walk-behind mowers from Bolens, Ryobi, MTD, Troy-Bilt, and Yard-Man. It is sold individually.

This hex screw can be used as a replacement part for the small engine of a lawn mower or a lawn tractor. The hex screw is a fastener with a six-sided head that is responsible for fastening components to one another. A hex screw might be lost or misplaced, which is a frequent occurrence in small engine appliances as a result of long-term usage. Hex screws are easily lost and misplaced as they are small components that do not necessarily cause damage upon unscrewing unless it results in the materials coming loose. If this is the case, or if the hex screw suffers from impact or corrosion to the metal material, the hex screw should be removed and replaced with this genuine OEM replacement for lawn mowers and lawn tractors. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. This is an OEM part sourced directly from the manufacturer, MTD. It is sold individually. This hex screw is compatible with the following brands: MTD, Troy-Bilt, Yard Man, and Bolens.

This MTD 17211-ZL8-023 Air Cleaner is used in lawnmowers to help prevent dirt, dust, and other debris from contaminating the carburetor and damaging the engine. A lawnmower's air filter is typically housed in a plastic or metal case and usually mounted on top of the engine. It comes in paper, foam, or a combination of the two. The foam filter can be cleaned with water and detergent, while the paper filter requires replacement at least once a year. If the air filter is clogged or dirty, the engine may not start or may run rough. In this case, the filter needs to be replaced to breathe new life into the engine. Regular maintenance is essential and installing a new air filter can help keep the engine running in top condition. Aside from lawnmowers, this MTD air cleaner can be used in log splitters, pressure washers, generators, and tillers. It is also compatible with other brands like Briggs & Stratton, Craftsman, Cub Cadet, Honda, Huskee, Lawn-Boy, MasterCut, Toro, Troy-Bilt, Murray, Yard Machines, and Yard-Man. It is an OEM part sourced directly from the manufacturer and is sold individually.

This is a grass catcher that attaches to the cutting deck of a number of walk behind lawn mowers. The bag fits over the metal bag frame, which is sold separately. The bag and frame are designed to detach easily from the mower so that grass clippings can be discarded quickly and the bag can be reattached. Although it is made of durable fabric, bags do become worn out. This is primarily a result of being dragged against grass, obstacles, fences, and other impediments. Once worn, the bags cannot be satisfactorily repaired and thus need to be replaced. Replacement is a simple matter of removing the fabric bag from the metal frame and slipping the new replacement bag back onto the frame. While making the replacement, it is a good idea to check the status of the metal frame, which can also become bent or even broken during normal use. When replacing this grass catcher bag, it is essential to avoid purchasing a generic, lower quality item. Instead, make sure to use a genuine OEM replacement part such as this one, which is manufactured to be identical to the original. This bag is compatible with mowers offered by Ryobi, MTD, Yard Man, Bolens, Yard Machine, Husky, Cub Cadet, and Troy-Bilt.

A train shield is found on many walk-behind lawn mowers. It is located on the rear side of the lawn mower. The function from the position where it is mounted is to keep grass from expelling from the mower deck. With use or as a result of accidental impact, the train shield may become damaged or fall off. If the train shield is broken or missing, it will allow grass to come out from the mower deck, which poses a safety risk. Check to see if grass is being expelled from the motor deck.Installing a train shield on a lawn mower is an easy task. There is hardware required to secure the part in place. Wear gloves for protection. Make sure the machine is entirely cool.This train shield is a genuine OEM replacement part. It is sourced from the manufacturer. The train shield is made of durable, high-quality plastic. It is sold individually. The train shield can be installed on MTD, Troy-Bilt, Yard-Man, Bolens, Yard Machines, Cub Cadet, and Huskee brand lawn equipment. It is compatible with several models of walk-behind lawn mowers.

The blade support is found between the blade and the bolt. As its name suggests, it is designed to provide support for the blade to ensure it is secured to the base of the mower deck. It is made of metal and it will need a replacement if it becomes worn or damaged. To replace a blade support or blade spacer, first, the engine needs to be cool. Remove the wire and boot from the spark plug. Tip the mower back on its handle assembly and use a piece of wood or sturdy object to hold the cutting blade in place. Remove the old blade support and blade. When installing the new one, ensure that the blade's sharp edge faces away from the mower deck. Re-thread and torque the bolt between 40 and 50 ft-lbs. This is an original OEM replacement part for lawnmower blade support made by Craftsman, Cub Cadet, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Bolens, Yard-Man, MasterCut. It is sold individually.

A mulching blade has a unique curved or angled design that allows discharging, bagging, and mulching. If its edges are already dull, it can lead to longer mowing time and frayed and torn grass blades. Mulching blade installation is easy. First, unplug the spark plug wire. Then, position the lawnmower on its side. Get a woodblock, preferably 6 x 2 in size, and put it between the old blade and housing deck. Make sure that the wood will prevent the old blade from moving. Take a socket wrench and remove the blade’s nut and washer. Remove the old blade and put the new mulching blade in. Put the nut and washer back and tighten until it is secured. You can use the woodblock to prevent the replacement blade from moving when it is tightened. This mulching blade replacement s an original MTD product. This OEM mulching blade can be used for MTD, Craftsman, Cub Cadet, Murray, Yard-Man, and Bolens lawnmower models. This brand-new mulching blade is sold individually. The support blade and screw hex are sold separately.
