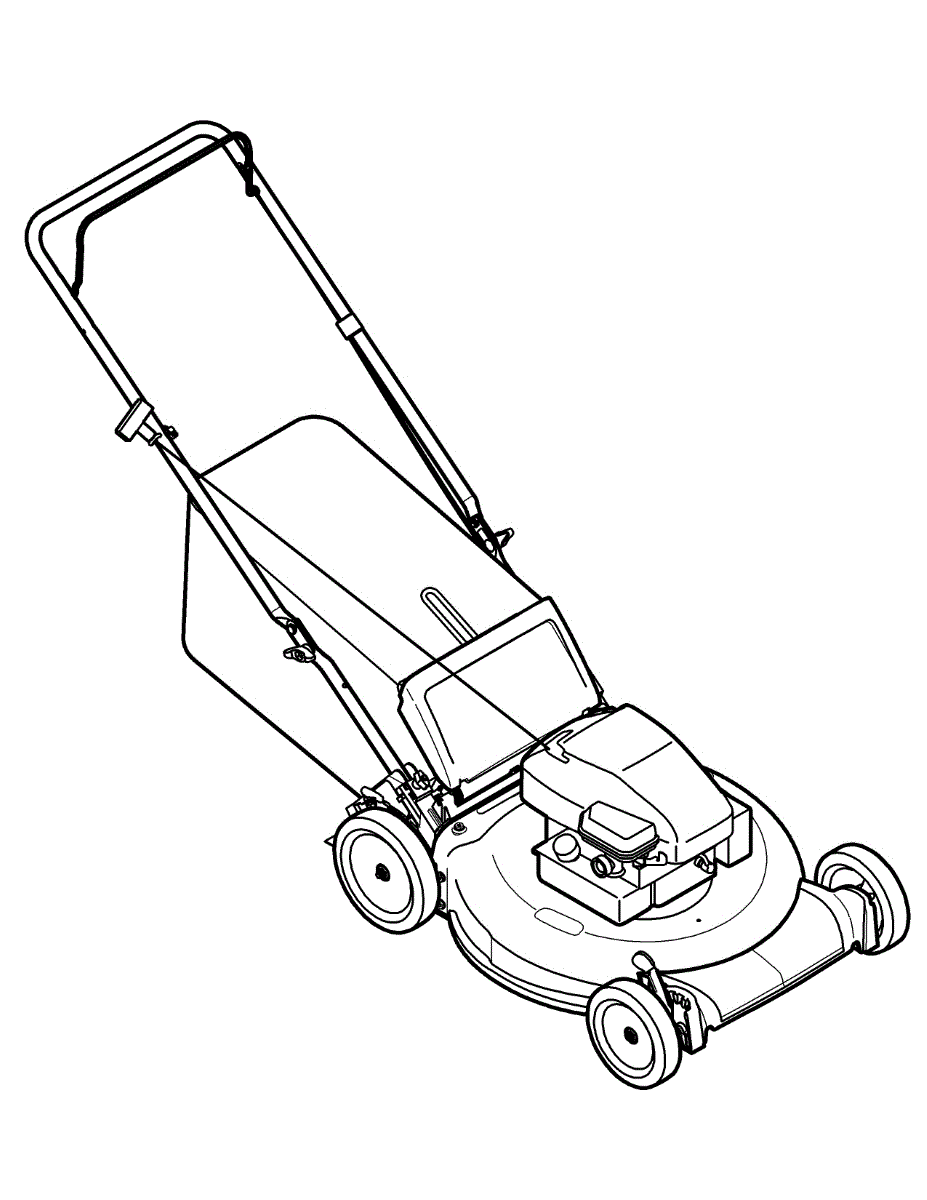

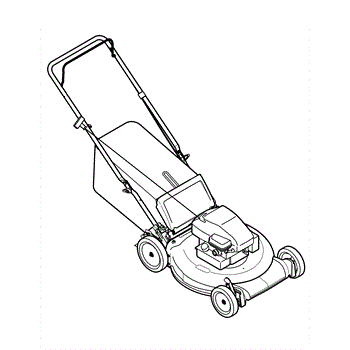

Parts for Yard-Man 11A-A19Q701 / 2012: .Quick Reference 11A-B2x Parts

A fuel filter is designed to ensure that the fuel flowing into an engine is as clean as possible. When combined with an effective air filter, this dramatically improves engine durability. In general, a fuel filter should be replaced during a small engine’s annual maintenance cycle. This is true whether the filter is inside a lawnmower, snowblower, or another small engine. Symptoms of a failed fuel filter include stalling, particularly when the throttle is fully open. A clogged fuel filter can also be checked visually. If it’s cloudy or there are particles are inside, it needs to be replaced. If there is visible rust during this process, check the fuel can and gas tank for any rust on the inside. Discard any bad gas and replace it with fresh gasoline. Initially, this fuel filter was used for MTD snowblowers. Since then, it’s been used by several other manufacturers, including Briggs & Stratton, Cub Cadet, Yard Machines, and Honda. This is an OEM filter sourced directly from MTD, and it is sold individually.

Fuel filters are created to strain out gas before it reaches the carburetor in lawnmowers and other gardening tools. Located in the fuel line or the fuel tank, it prevents unwanted debris from reaching the carburetor, which can cause engine damage. If the fuel filter is damaged or becomes clogged with material, it no longer offers the same protection to the carburetor. This can lead to difficulty starting the lawnmower and decreased performance. Correcting this issue early can prevent damage that might require a new lawnmower. Maintenance of the lawnmower by adding fuel stabilizer, changing the oil, and replacing the air filter will increase the life of lawn care equioment. Even if no issues are present, the fuel filter should be replaced after about 200 hours of use. Disconnecting the spark plug should be done prior to installing a new fuel filter. This fuel filter is a genuine OEM component directly from the manufacturer and comes as an individual part. It can be used with various Craftsman, Cub Cadet, Murray, Yard Machines, MTD, Huskee, Bolens, Yard-Man, and Mastercut lawnmowers, tillers, blowers, and wood chippers.

This control cable is a mower part that works with the control handle or lever bar that engages the wheels. It is also known as choke cable, brake cable, choke control, and control assembly cable. The inner wire total length is 53 inches, and the cable casing or conduit length is 40 inches. The control cable can stretch over time and it will result in a mower that moves forward slower than usual. A cable that's too corroded won't be capable of moving the drive lever. A broken or cut cable won't make the mower move. Here is a manufacturer-approved replacement control cable that's easy to install. A genuine OEM replacement part, this control cable is made to fit specific models of walk-behind mowers from Bolens, Ryobi, MTD, Troy-Bilt, and Yard-Man. It is sold individually.

A fuel tank cap assembly prevents contaminants and particles from entering the gas tank and causing problems with the carburetor or engine. The cord between the insert and the fuel cap is meant to prevent the loss of the fuel cap. However, over time the cord can wear out and break. The threads on the cap can also become worn down or swell from heat. When this occurs, consider replacing the fuel tank cap assembly. The replacement job is easy and should not need any tools, except maybe some vice grips to remove the old fuel tank cap assembly. This fuel tank cap assembly will work in conjunction with many different types of lawn and garden maintenance equipment. Most have a small engine, like lawnmowers, tillers, and log splitters. Some of this equipment is produced by the brands Craftsman, Cub Cadet, Honda, Huskee, Lawn-Boy, Mastercut, MTD, Murray, Troy-Bilt, and Yard Machines. It is a genuine OEM part.

This cover is a genuine MTD part, sold individually. This cover can be used as a replacement part in a lawn mower. This cover helps to protect the mower from exposure to dust and the elements.If the cover is punctured, ripped, torn, or otherwise leaves the lawn mower exposed, the cover should be replaced by this genuine OEM replacement part. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. Always unplug the appliance before performing any kind of repair or replacement.Sourced directly from the manufacturer, this component is a genuine replacement part that is sold individually. This cover is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Murray, Yard Machines, Huskee, Bolens, Yard Man, and MasterCut.

A fuel cap assembly is a component often seen on lawnmowers and other lawn and garden equipment. It is made of durable black plastic and is used to ensure that fuel doesn’t spill out of the fuel tank. Over time, fuel cap assemblies can begin to wear out and cause problems. Sometimes this results in a cap that doesn’t tighten all the way or there may be a fuel smell when using a lawnmower or snowblower. If fuel is leaking, the cap doesn’t fit right, or the cap seems damaged, it’s best to replace it with a new component. This is a simple process that involves removing the original fuel cap assembly and fitting the new assembly to the lawn machine. This fuel cap assembly is a genuine OEM component that comes directly from the manufacturer. It is an individual part that is compatible with MTD, Murray, Cub Cadet, Bolens, Yard-Man, and Yard Machines lawnmowers, snowblowers, chipper shredders, and tillers. No tools are required to replace this component.

This replacement part is a hand-held oil pump, and it is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. This oil pump is small and portable and is able to assist the user during oil changes in their lawn mowers. Oil changes are a normal part of maintenance for many lawn mower models and this oil pump will facilitate that.A user might require a new oil pump if the old one is damaged. This part with the lawn mower at purchase, so it may need to be purchased after the fact. It makes changing the oil inside of the engine very easy.This hand-held oil pump is sold individually and is a genuine OEM replacement part sourced directly from the manufacturer. This device can come in handy for those looking to change the oil in their lawn mowers.

This is a small engine spark plug positioned in the engine cylinder head. It supplies the spark that will ignite the air-fuel mixture to enable an engine to produce power. This particular spark plug is designed with superior corrosion resistance and dependable performance. Small but mighty, this component allows for increased conductivity and heat control. If the spark plug is damaged or in poor condition, many problems may arise in equipment, including sudden stop while running, overheating, and excessive gas consumption. Replace the spark plug by disconnecting the spark plug wire first, then use a socket driver or wrench to remove the spark plug. Install the new spark plug by turning it by hand initially to avoid cross-threading. If it doesn't twist anymore, use a deep socket wrench or socket driver to tighten the plug until snug. The spark plug can also be used to tune up outdoor power equipment or improve a small engine. This part is recommended to be replaced once per season. This part works with lawn mowers, snowblowers, tillers, leaf blowers, log splitters, wood chippers, and others with small engines. It is compatible with brands such as Craftsman, Cub Cadet, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Bolens, Yard-Man, and MasterCut. This is a genuine OEM part directly from the manufacturer and is sold individually.

This MTD 17211-ZL8-023 Air Cleaner is used in lawnmowers to help prevent dirt, dust, and other debris from contaminating the carburetor and damaging the engine. A lawnmower's air filter is typically housed in a plastic or metal case and usually mounted on top of the engine. It comes in paper, foam, or a combination of the two. The foam filter can be cleaned with water and detergent, while the paper filter requires replacement at least once a year. If the air filter is clogged or dirty, the engine may not start or may run rough. In this case, the filter needs to be replaced to breathe new life into the engine. Regular maintenance is essential and installing a new air filter can help keep the engine running in top condition. Aside from lawnmowers, this MTD air cleaner can be used in log splitters, pressure washers, generators, and tillers. It is also compatible with other brands like Briggs & Stratton, Craftsman, Cub Cadet, Honda, Huskee, Lawn-Boy, MasterCut, Toro, Troy-Bilt, Murray, Yard Machines, and Yard-Man. It is an OEM part sourced directly from the manufacturer and is sold individually.

This wheel assembly is created for a variety of lawnmowers and attaches to the front of the machine. The wheel is made from a durable plastic material and connects to the front axle assembly. It is a required part for moving the lawnmower around the yard. The wheel can sometimes become broken or experience damage which results in the need to replace it. Pushing it over large items or bumping into things can cause damage.A visual inspection of each of the front wheels on a lawnmower will provide information about whether it needs to be replaced or not. If the wheel is broken or has a large amount of damage, it will need to be removed and replaced. Taking off the wheel and replacing it with a new one may require a variety of tools including a wrench set, a screwdriver, and a socket set. This wheel assembly is made for lawnmowers created by Bolens, Craftsman, Murray, Huskee, MasterCut, MTD, Yard-Man, and Yard Machines. It is a genuine OEM replacement part that is sourced directly from the manufacturer. It comes with a single wheel assembly.

The blade support is found between the blade and the bolt. As its name suggests, it is designed to provide support for the blade to ensure it is secured to the base of the mower deck. It is made of metal and it will need a replacement if it becomes worn or damaged. To replace a blade support or blade spacer, first, the engine needs to be cool. Remove the wire and boot from the spark plug. Tip the mower back on its handle assembly and use a piece of wood or sturdy object to hold the cutting blade in place. Remove the old blade support and blade. When installing the new one, ensure that the blade's sharp edge faces away from the mower deck. Re-thread and torque the bolt between 40 and 50 ft-lbs. This is an original OEM replacement part for lawnmower blade support made by Craftsman, Cub Cadet, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Bolens, Yard-Man, MasterCut. It is sold individually.

This is a blade adapter that is intended for use with lawnmowers. The blade adapter attaches the motor shaft to the lawnmower blade. A new blade adapter may be needed if there is any damage to the part. Any damage to the blade adapter can make the lawnmower vibrate excessively and loosen the blade mounting. If the blade loosens, it can strike the housing or the ground and cause it to break. This can be dangerous. Blade adapters are designed to be a breaking point between the blade and the crankshaft, making any damages less expensive to repair. Make sure to wear gloves when performing care and maintenance or replacing any parts on a lawnmower. The spark plug wire should be disconnected before attempting to install the blade adapter. A power drill, wrench set, and socket set are required to replace this part.This blade adapter is a genuine OEM Craftsman part. It is sold individually. This particular blade adapter is compatible with lawnmowers that are manufactured by the Husqvarna brand.

This blade adapter is made to attach a lawn mower cutting blade to the drive shaft of a push mower. Though it is made of sturdy metal and is tightly fastened to the mower's drive, the adapter and blade may wear and loosen over time. This can present a dangerous situation as well as poor cutting performance for the blade. Also, each adapter has a small insert tab that fits into the blade attachment. This tab, called a “key,” is actually a shear pin. Should the blade strike a solid object, the key will sheer off, preventing the blade from coming loose or suffering irreparable damage. The solution to either of these problems is to replace the blade adapter. The blade itself should be closely examined to make sure it fits the new adapter with no wobble or slack. To replace the blade adapter, turn the mower on its side with the air filter on top. Use a ratchet to remove the bolt that attaches the blade and adapter to the drive shaft. Make certain to fit the new adapter key into the keyway on the shaft. Always use a replacement part like this one, that is OEM certified to be identical to the original. This blade adapter is compatible with Ryobi, Yard Machines, Yard Man, Huskee, Cub Cadet, Troy-Bilt, MTD, and Bolens mowers.

Installing a brand-new air filter keeps the engine in top running condition. When the machine is in operation, the vacuumed air goes through the air filter. Any dirt or dust is left in the filter media. Over time, the filter will become dirty and can no longer provide the same filtering efficiency as before. If left ignored, the tiny particles could clog the engine and the carburetor. You may experience misfires and no engine start-up. An air filter replacement is cheap and easy to do. Simply remove the air cleaner cover and take out the dirty filter. Insert the new filter into the housing. This replacement will take less than 5 minutes. A screwdriver will be needed. The MTD 951-10298 Air Cleaner Kit is a genuine air filter from MTD. Each kit comes with one paper filter and one foam filter. The foam filter can be cleaned with water and detergent. The paper filter, however, needs replacement at least once a year. This air filter kit is compatible with Cub Cadet, PowerMore, and Troy-Bilt. It can also work with other garden equipment like wheel string trimmers, chipper-shredder vacuums, and log splitters.

Designed for comfortable mowing, this trail shield attaches to walk-behind lawnmowers. It secures to the back of the deck on the lawnmower and prevents grass and other debris from reaching the person using the mower. This trail shield is made of durable plastic but can become damaged use. If it is broken, it will not be able to keep grass from collecting behind the mower deck, so it will need to be replaced.To replace the part with a new shield, put the lawnmower on a stable surface and ensure it is powered off. On the original trail shield, find the metal clasps that hold it secure. Unclasp each of these and remove the trail shield from the lawnmower. The new replacement part can be attached and the lawnmower will operate correctly.This trail shield is an authentic OEM replacement part that is directly sourced from the manufacturer. It is an individual component and does not come with hardware. The part is compatible with lawnmowers by MasterCut, Craftsman, Yard-Man, Cub Cadet, Bolens, Troy-Bilt, Huskee, Murray, MTC, and Yard Machines.

This replacement part is a hex bolt. It is a genuine replacement part made by MTD. Hex bolts are named because they are shaped like a hexagon and are different from the regular circle-shaped bolts. These parts are able to hold other parts secure and in place so that everything can operate as needed. A new hex bolt might be needed if the current ones are damaged in any way. It is possible that these bolts become stripped or lodged in place over time due to normal wear and tear and should be replaced. The repair should be fairly easy, only requiring a screwdriver or pliers if the previous part is stuck. Be sure the engine is completely powered down before beginning this repair. This bolt is sold individually. Be sure to purchase the correct amount as many appliances require more than one. This is a genuine OEM replacement part sourced directly from the manufacturer.

A side discharge chute is engineered to move the debris away from the machine's underside. This is because grass that is not only long and thick but also moist can get trapped and clog the deck and the blades. When this happens, you will have to stop to clear the accumulated clippings periodically. To mitigate clogging and maximize cutting, using a side discharge chute is ideal. When a side discharge chute is installed, but clogging still occurs, there might be a problem with the chute itself. It can be torn or already loose. Luckily, installing a brand-new side discharge chute is easy and will take less than 5 minutes. Start the installation by removing the spark plug. The engine should be cool to the touch. Then, lift and hold the mulch cover up. Take the brand-new side discharge chute and hook the tabs on to the hinge pins. Then, release the mulch cover. MTD manufactures this brand-new side discharge chute. It is an original replacement with Craftsman, MTD, Murray, Yard-Man, Yard Machines, Bolens, Huskee, and Mastercut lawnmowers. It comes in solid plastic material with a black finish. This side chute is sold individually.

A mulching blade has a unique curved or angled design that allows discharging, bagging, and mulching. If its edges are already dull, it can lead to longer mowing time and frayed and torn grass blades. Mulching blade installation is easy. First, unplug the spark plug wire. Then, position the lawnmower on its side. Get a woodblock, preferably 6 x 2 in size, and put it between the old blade and housing deck. Make sure that the wood will prevent the old blade from moving. Take a socket wrench and remove the blade’s nut and washer. Remove the old blade and put the new mulching blade in. Put the nut and washer back and tighten until it is secured. You can use the woodblock to prevent the replacement blade from moving when it is tightened. This mulching blade replacement s an original MTD product. This OEM mulching blade can be used for MTD, Craftsman, Cub Cadet, Murray, Yard-Man, and Bolens lawnmower models. This brand-new mulching blade is sold individually. The support blade and screw hex are sold separately.
