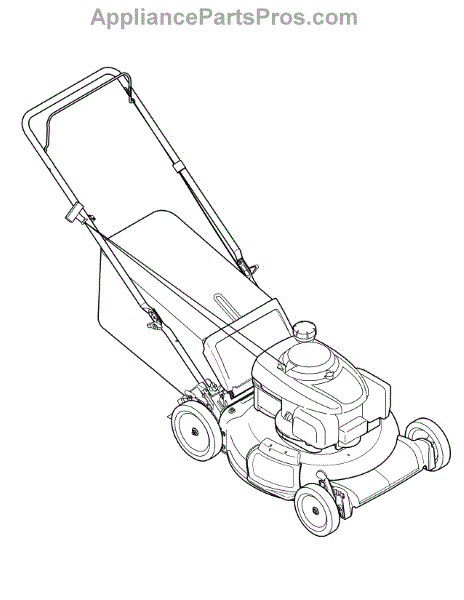

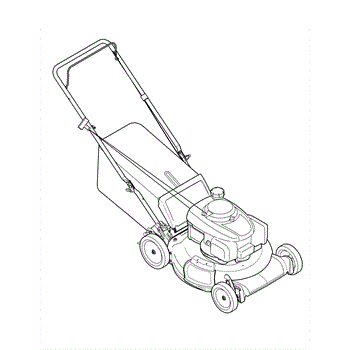

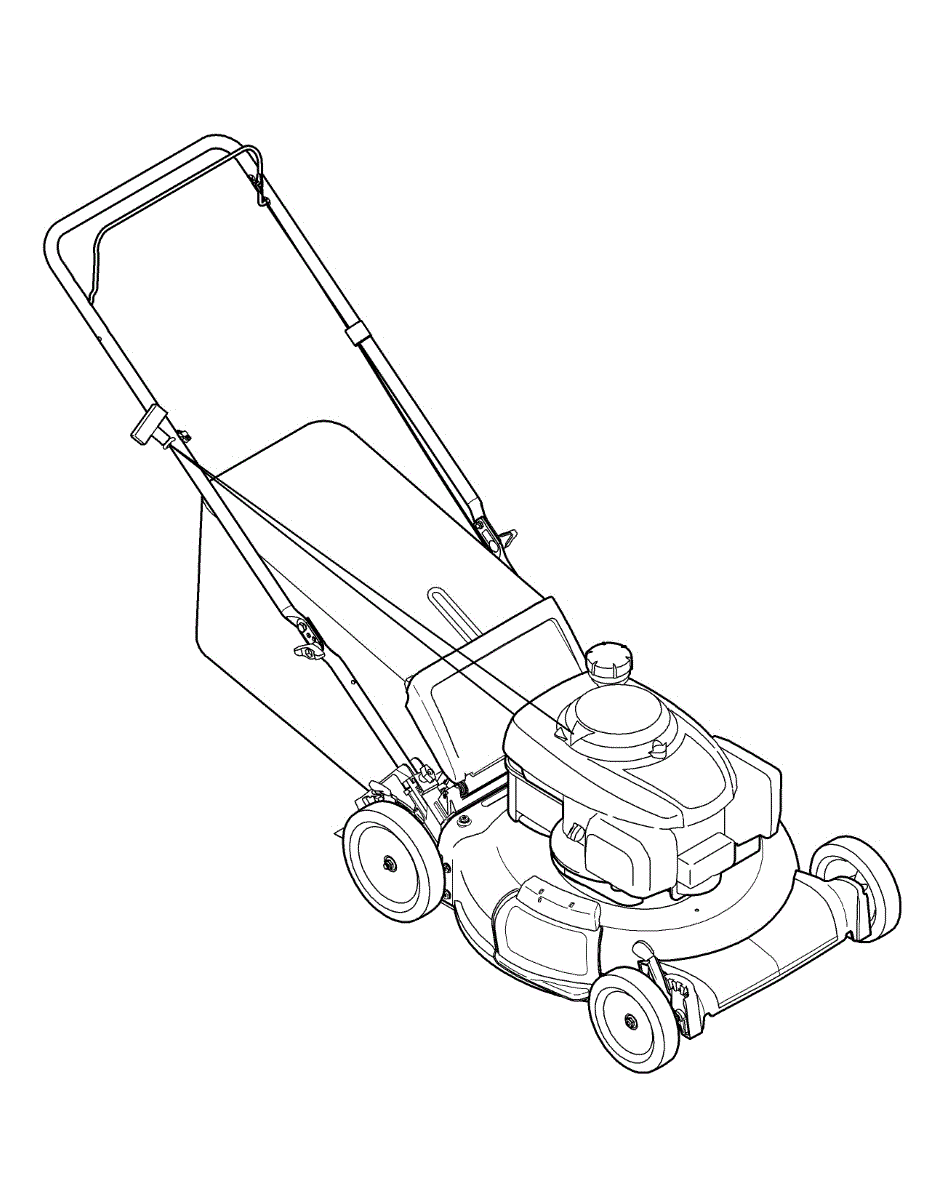

Parts for Columbia 11A-B29Q897 / 2011: .Quick Reference Parts

One of the essential parts of a walk-behind lawn mower is the gas cap. Many people don't notice that mower fuel caps are almost always rubberized or hard plastic and that they are black in color. These are specific design reasons for this. Other openings in the mower's body, especially the oil fill, are coded with different colors. This is meant to prevent users from pouring any incorrect substance into a container where it could damage the mower in any way. The rubber or hard plastic cap is meant both to be durable and non-conductive. In the past, mower caps were made of vented steel, which was conductive. Since a gallon of gasoline has the explosive potential of two sticks of dynamite, manufacturers have resorted to a number of wise safety measures to prevent accidents. As durable as they are, these caps do sometimes need to be replaced. If a cut or a heat-related deformation causes the cap to lose its water-tight capability, it must be replaced. Often caps are lost when users forget to replace them after gassing up. When choosing a replacement cap for a Troy-Bilt, MTD, or Yard-Man mower, make sure to select one like this OEM genuine certified replacement fuel cap. It's important to make sure the generator is not running when you replace the cover.

This MTD 17211-ZL8-023 Air Cleaner is used in lawnmowers to help prevent dirt, dust, and other debris from contaminating the carburetor and damaging the engine. A lawnmower's air filter is typically housed in a plastic or metal case and usually mounted on top of the engine. It comes in paper, foam, or a combination of the two. The foam filter can be cleaned with water and detergent, while the paper filter requires replacement at least once a year. If the air filter is clogged or dirty, the engine may not start or may run rough. In this case, the filter needs to be replaced to breathe new life into the engine. Regular maintenance is essential and installing a new air filter can help keep the engine running in top condition. Aside from lawnmowers, this MTD air cleaner can be used in log splitters, pressure washers, generators, and tillers. It is also compatible with other brands like Briggs & Stratton, Craftsman, Cub Cadet, Honda, Huskee, Lawn-Boy, MasterCut, Toro, Troy-Bilt, Murray, Yard Machines, and Yard-Man. It is an OEM part sourced directly from the manufacturer and is sold individually.

The blade support is found between the blade and the bolt. As its name suggests, it is designed to provide support for the blade to ensure it is secured to the base of the mower deck. It is made of metal and it will need a replacement if it becomes worn or damaged. To replace a blade support or blade spacer, first, the engine needs to be cool. Remove the wire and boot from the spark plug. Tip the mower back on its handle assembly and use a piece of wood or sturdy object to hold the cutting blade in place. Remove the old blade support and blade. When installing the new one, ensure that the blade's sharp edge faces away from the mower deck. Re-thread and torque the bolt between 40 and 50 ft-lbs. This is an original OEM replacement part for lawnmower blade support made by Craftsman, Cub Cadet, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Bolens, Yard-Man, MasterCut. It is sold individually.

This is a blade adapter that is intended for use with lawnmowers. The blade adapter attaches the motor shaft to the lawnmower blade. A new blade adapter may be needed if there is any damage to the part. Any damage to the blade adapter can make the lawnmower vibrate excessively and loosen the blade mounting. If the blade loosens, it can strike the housing or the ground and cause it to break. This can be dangerous. Blade adapters are designed to be a breaking point between the blade and the crankshaft, making any damages less expensive to repair. Make sure to wear gloves when performing care and maintenance or replacing any parts on a lawnmower. The spark plug wire should be disconnected before attempting to install the blade adapter. A power drill, wrench set, and socket set are required to replace this part.This blade adapter is a genuine OEM Craftsman part. It is sold individually. This particular blade adapter is compatible with lawnmowers that are manufactured by the Husqvarna brand.

Designed for comfortable mowing, this trail shield attaches to walk-behind lawnmowers. It secures to the back of the deck on the lawnmower and prevents grass and other debris from reaching the person using the mower. This trail shield is made of durable plastic but can become damaged use. If it is broken, it will not be able to keep grass from collecting behind the mower deck, so it will need to be replaced.To replace the part with a new shield, put the lawnmower on a stable surface and ensure it is powered off. On the original trail shield, find the metal clasps that hold it secure. Unclasp each of these and remove the trail shield from the lawnmower. The new replacement part can be attached and the lawnmower will operate correctly.This trail shield is an authentic OEM replacement part that is directly sourced from the manufacturer. It is an individual component and does not come with hardware. The part is compatible with lawnmowers by MasterCut, Craftsman, Yard-Man, Cub Cadet, Bolens, Troy-Bilt, Huskee, Murray, MTC, and Yard Machines.

This replacement part is a hex bolt. It is a genuine replacement part made by MTD. Hex bolts are named because they are shaped like a hexagon and are different from the regular circle-shaped bolts. These parts are able to hold other parts secure and in place so that everything can operate as needed. A new hex bolt might be needed if the current ones are damaged in any way. It is possible that these bolts become stripped or lodged in place over time due to normal wear and tear and should be replaced. The repair should be fairly easy, only requiring a screwdriver or pliers if the previous part is stuck. Be sure the engine is completely powered down before beginning this repair. This bolt is sold individually. Be sure to purchase the correct amount as many appliances require more than one. This is a genuine OEM replacement part sourced directly from the manufacturer.

A side discharge chute is engineered to move the debris away from the machine's underside. This is because grass that is not only long and thick but also moist can get trapped and clog the deck and the blades. When this happens, you will have to stop to clear the accumulated clippings periodically. To mitigate clogging and maximize cutting, using a side discharge chute is ideal. When a side discharge chute is installed, but clogging still occurs, there might be a problem with the chute itself. It can be torn or already loose. Luckily, installing a brand-new side discharge chute is easy and will take less than 5 minutes. Start the installation by removing the spark plug. The engine should be cool to the touch. Then, lift and hold the mulch cover up. Take the brand-new side discharge chute and hook the tabs on to the hinge pins. Then, release the mulch cover. MTD manufactures this brand-new side discharge chute. It is an original replacement with Craftsman, MTD, Murray, Yard-Man, Yard Machines, Bolens, Huskee, and Mastercut lawnmowers. It comes in solid plastic material with a black finish. This side chute is sold individually.

A mulching blade has a unique curved or angled design that allows discharging, bagging, and mulching. If its edges are already dull, it can lead to longer mowing time and frayed and torn grass blades. Mulching blade installation is easy. First, unplug the spark plug wire. Then, position the lawnmower on its side. Get a woodblock, preferably 6 x 2 in size, and put it between the old blade and housing deck. Make sure that the wood will prevent the old blade from moving. Take a socket wrench and remove the blade’s nut and washer. Remove the old blade and put the new mulching blade in. Put the nut and washer back and tighten until it is secured. You can use the woodblock to prevent the replacement blade from moving when it is tightened. This mulching blade replacement s an original MTD product. This OEM mulching blade can be used for MTD, Craftsman, Cub Cadet, Murray, Yard-Man, and Bolens lawnmower models. This brand-new mulching blade is sold individually. The support blade and screw hex are sold separately.
