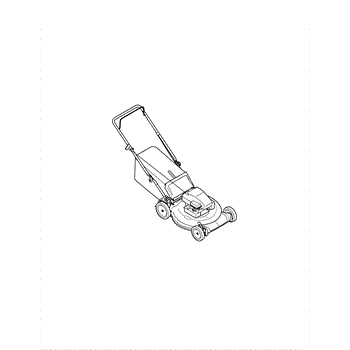

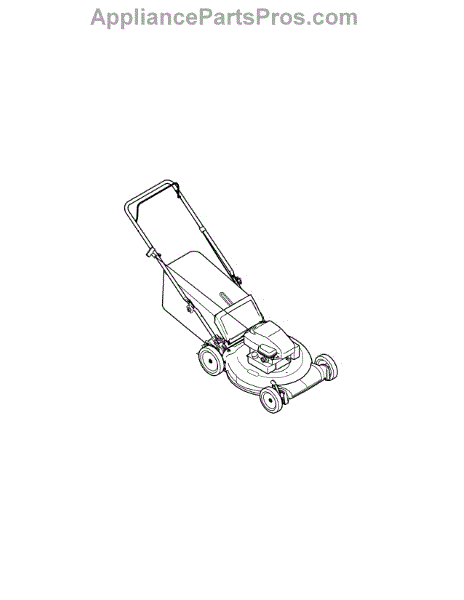

Parts for Craftsman 11A-A15A099 / 2011: .Quick Reference Parts

This grass catcher bag is a genuine OEM factory-built replacement part. This is the fabric container into which grass discharges as it is ejected from beneath the mowing deck so it can be discarded or composted. If your current bag is torn or does not fit closely against the mower housing, the bag should be replaced. Replacing the bag is a simple proposition. After removing the original bag from the metal frame and discarding it, make certain that the replacement bag is right side out with the plastic side on the bottom. In pulling the bag over the frame, make certain that the fit is snug and that it fits without bowing the frame or being excessively loose. Next, notice there is a channel on the bag. It fits over the hooks on the frame. Once this is completed, simply lift the rear discharge door of the mower and slide the grass catcher into place. This grass catcher fits most Craftsman and MTD walk-behind lawnmowers. This OEM part is sold individually.

This is a replacement wheel. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part can be used to replace a damaged or faulty wheel on a variety of lawnmower models. This particular part is an 8 x 1.8 rear wheel Wheels can easily become damaged or broken with regular equipment use. When worn out, a wheel should be replaced in order to continue using the lawnmower safely. It is always recommended that the appropriate safety precautions are adhered to when attempting to fix any power tools or machinery. For more accurate information on how and where to install this wheel, the appropriate owner's manual and included diagrams should be referenced.As an authentic replacement part, this wheel is suitable for use on several different lawnmower models manufactured by MTD, Bolen, Yard Man, Husky, and Yard Machines. This is a genuine part made of high-quality, durable materials and is sold individually.

This wheel assembly is created for a variety of lawnmowers and attaches to the front of the machine. The wheel is made from a durable plastic material and connects to the front axle assembly. It is a required part for moving the lawnmower around the yard. The wheel can sometimes become broken or experience damage which results in the need to replace it. Pushing it over large items or bumping into things can cause damage.A visual inspection of each of the front wheels on a lawnmower will provide information about whether it needs to be replaced or not. If the wheel is broken or has a large amount of damage, it will need to be removed and replaced. Taking off the wheel and replacing it with a new one may require a variety of tools including a wrench set, a screwdriver, and a socket set. This wheel assembly is made for lawnmowers created by Bolens, Craftsman, Murray, Huskee, MasterCut, MTD, Yard-Man, and Yard Machines. It is a genuine OEM replacement part that is sourced directly from the manufacturer. It comes with a single wheel assembly.

Mowers are manufactured to last for about 500 hours of running, which breaks down to about 19-20 years for the typical non-commercial user. Commercial mowers, which see a great deal more use, are designed to last for 1000 hours of service, which is about 10 years. To extend the life of a lawn mower to its full potential, there are certain simple preventative routines a user can follow, including annual oil and filter changes. One important routine maintenance ritual for mowers that is often overlooked is changing the air filter, something that should be done at least annually. When the mower chugs, cycles, or simply will not start, the first thing to check is the air filter. When replacing the filter, make sure to use a genuine OEM certified replacement part like this one, which is manufactured according to the specification of the original factory filter. This filter is compatible with Bolens, Yard-Man, Troy-Bilt, Yard Machines, and MTD.

The blade support is found between the blade and the bolt. As its name suggests, it is designed to provide support for the blade to ensure it is secured to the base of the mower deck. It is made of metal and it will need a replacement if it becomes worn or damaged. To replace a blade support or blade spacer, first, the engine needs to be cool. Remove the wire and boot from the spark plug. Tip the mower back on its handle assembly and use a piece of wood or sturdy object to hold the cutting blade in place. Remove the old blade support and blade. When installing the new one, ensure that the blade's sharp edge faces away from the mower deck. Re-thread and torque the bolt between 40 and 50 ft-lbs. This is an original OEM replacement part for lawnmower blade support made by Craftsman, Cub Cadet, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Bolens, Yard-Man, MasterCut. It is sold individually.

This blade adapter is made to attach a lawn mower cutting blade to the drive shaft of a push mower. Though it is made of sturdy metal and is tightly fastened to the mower's drive, the adapter and blade may wear and loosen over time. This can present a dangerous situation as well as poor cutting performance for the blade. Also, each adapter has a small insert tab that fits into the blade attachment. This tab, called a “key,” is actually a shear pin. Should the blade strike a solid object, the key will sheer off, preventing the blade from coming loose or suffering irreparable damage. The solution to either of these problems is to replace the blade adapter. The blade itself should be closely examined to make sure it fits the new adapter with no wobble or slack. To replace the blade adapter, turn the mower on its side with the air filter on top. Use a ratchet to remove the bolt that attaches the blade and adapter to the drive shaft. Make certain to fit the new adapter key into the keyway on the shaft. Always use a replacement part like this one, that is OEM certified to be identical to the original. This blade adapter is compatible with Ryobi, Yard Machines, Yard Man, Huskee, Cub Cadet, Troy-Bilt, MTD, and Bolens mowers.

Designed for comfortable mowing, this trail shield attaches to walk-behind lawnmowers. It secures to the back of the deck on the lawnmower and prevents grass and other debris from reaching the person using the mower. This trail shield is made of durable plastic but can become damaged use. If it is broken, it will not be able to keep grass from collecting behind the mower deck, so it will need to be replaced.To replace the part with a new shield, put the lawnmower on a stable surface and ensure it is powered off. On the original trail shield, find the metal clasps that hold it secure. Unclasp each of these and remove the trail shield from the lawnmower. The new replacement part can be attached and the lawnmower will operate correctly.This trail shield is an authentic OEM replacement part that is directly sourced from the manufacturer. It is an individual component and does not come with hardware. The part is compatible with lawnmowers by MasterCut, Craftsman, Yard-Man, Cub Cadet, Bolens, Troy-Bilt, Huskee, Murray, MTC, and Yard Machines.

This replacement part is a hex bolt. It is a genuine replacement part made by MTD. Hex bolts are named because they are shaped like a hexagon and are different from the regular circle-shaped bolts. These parts are able to hold other parts secure and in place so that everything can operate as needed. A new hex bolt might be needed if the current ones are damaged in any way. It is possible that these bolts become stripped or lodged in place over time due to normal wear and tear and should be replaced. The repair should be fairly easy, only requiring a screwdriver or pliers if the previous part is stuck. Be sure the engine is completely powered down before beginning this repair. This bolt is sold individually. Be sure to purchase the correct amount as many appliances require more than one. This is a genuine OEM replacement part sourced directly from the manufacturer.

A mulching blade has a unique curved or angled design that allows discharging, bagging, and mulching. If its edges are already dull, it can lead to longer mowing time and frayed and torn grass blades. Mulching blade installation is easy. First, unplug the spark plug wire. Then, position the lawnmower on its side. Get a woodblock, preferably 6 x 2 in size, and put it between the old blade and housing deck. Make sure that the wood will prevent the old blade from moving. Take a socket wrench and remove the blade’s nut and washer. Remove the old blade and put the new mulching blade in. Put the nut and washer back and tighten until it is secured. You can use the woodblock to prevent the replacement blade from moving when it is tightened. This mulching blade replacement s an original MTD product. This OEM mulching blade can be used for MTD, Craftsman, Cub Cadet, Murray, Yard-Man, and Bolens lawnmower models. This brand-new mulching blade is sold individually. The support blade and screw hex are sold separately.
