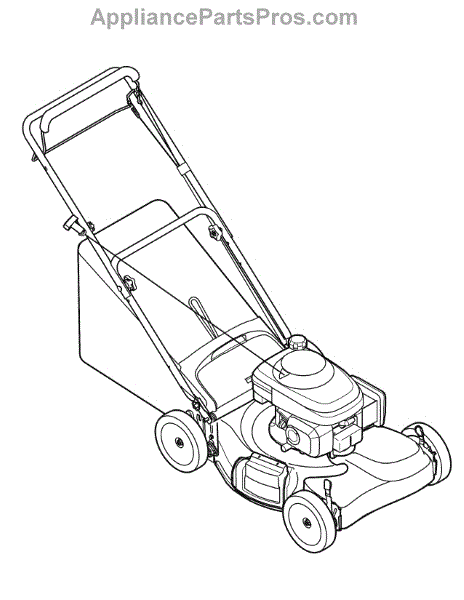

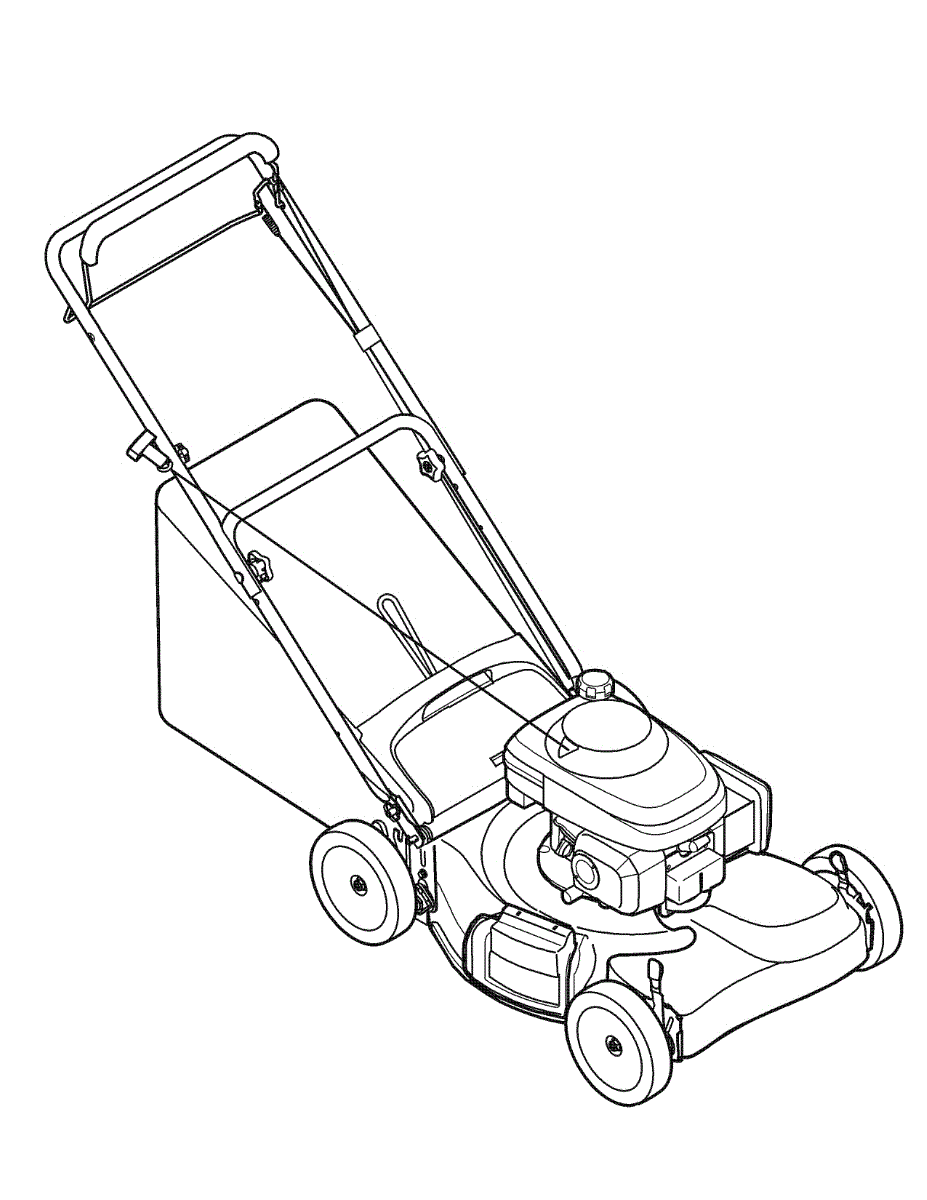

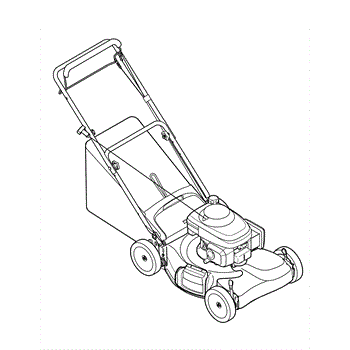

Parts for Craftsman 247.37683 / 2009: .Quick Reference Parts

A fuel filter is designed to ensure that the fuel flowing into an engine is as clean as possible. When combined with an effective air filter, this dramatically improves engine durability. In general, a fuel filter should be replaced during a small engine’s annual maintenance cycle. This is true whether the filter is inside a lawnmower, snowblower, or another small engine. Symptoms of a failed fuel filter include stalling, particularly when the throttle is fully open. A clogged fuel filter can also be checked visually. If it’s cloudy or there are particles are inside, it needs to be replaced. If there is visible rust during this process, check the fuel can and gas tank for any rust on the inside. Discard any bad gas and replace it with fresh gasoline. Initially, this fuel filter was used for MTD snowblowers. Since then, it’s been used by several other manufacturers, including Briggs & Stratton, Cub Cadet, Yard Machines, and Honda. This is an OEM filter sourced directly from MTD, and it is sold individually.

Air cleaner filter prevents dirt and debris from damaging your mower engine. Replace when thin, damaged, or dirty to maintain performance. Verify fit.

Metal blade adapter with 25mm inner diameter connects mower blade to spindle. Replace if worn, split, or pins have broken off for proper blade mounting.

A fuel tank cap assembly prevents contaminants and particles from entering the gas tank and causing problems with the carburetor or engine. The cord between the insert and the fuel cap is meant to prevent the loss of the fuel cap. However, over time the cord can wear out and break. The threads on the cap can also become worn down or swell from heat. When this occurs, consider replacing the fuel tank cap assembly. The replacement job is easy and should not need any tools, except maybe some vice grips to remove the old fuel tank cap assembly. This fuel tank cap assembly will work in conjunction with many different types of lawn and garden maintenance equipment. Most have a small engine, like lawnmowers, tillers, and log splitters. Some of this equipment is produced by the brands Craftsman, Cub Cadet, Honda, Huskee, Lawn-Boy, Mastercut, MTD, Murray, Troy-Bilt, and Yard Machines. It is a genuine OEM part.

Hex screw fastener for lawn mower and lawn tractor small engines. Secures components together. Replace if lost, stripped, or corroded during maintenance.

Mulch plug assembly for walk-behind mowers. Blocks the discharge chute opening to enable mulching mode. Replace if cracked, broken, or missing.

Replacement discharge chute for 21-inch walk-behind mowers. Directs grass clippings from the deck during discharge. Needed when original is cracked or missing.

This is a rear trail shield (also called a rear skirt) that mounts to the back of a walk-behind lawn mower deck. It deflects grass clippings, debris, and small objects downward to prevent them from being thrown behind the mower during operation. Replace this part if it is cracked, broken, or missing, which can create a safety hazard from flying debris.

Metal blade support spacer that mounts between the mower blade and bolt. Secures the blade to the deck base. Replace if worn, damaged, or missing.

Replacement wheel assembly for walk-behind mowers and lawn equipment. Installs on axle to restore mobility. Order when wheel is cracked, broken, or worn.
