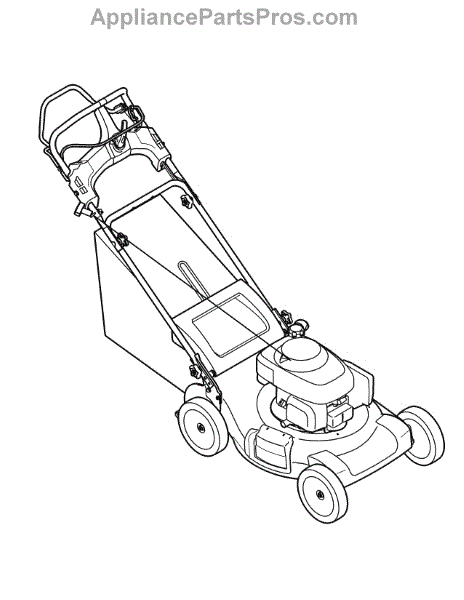

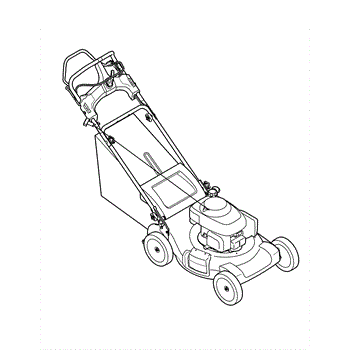

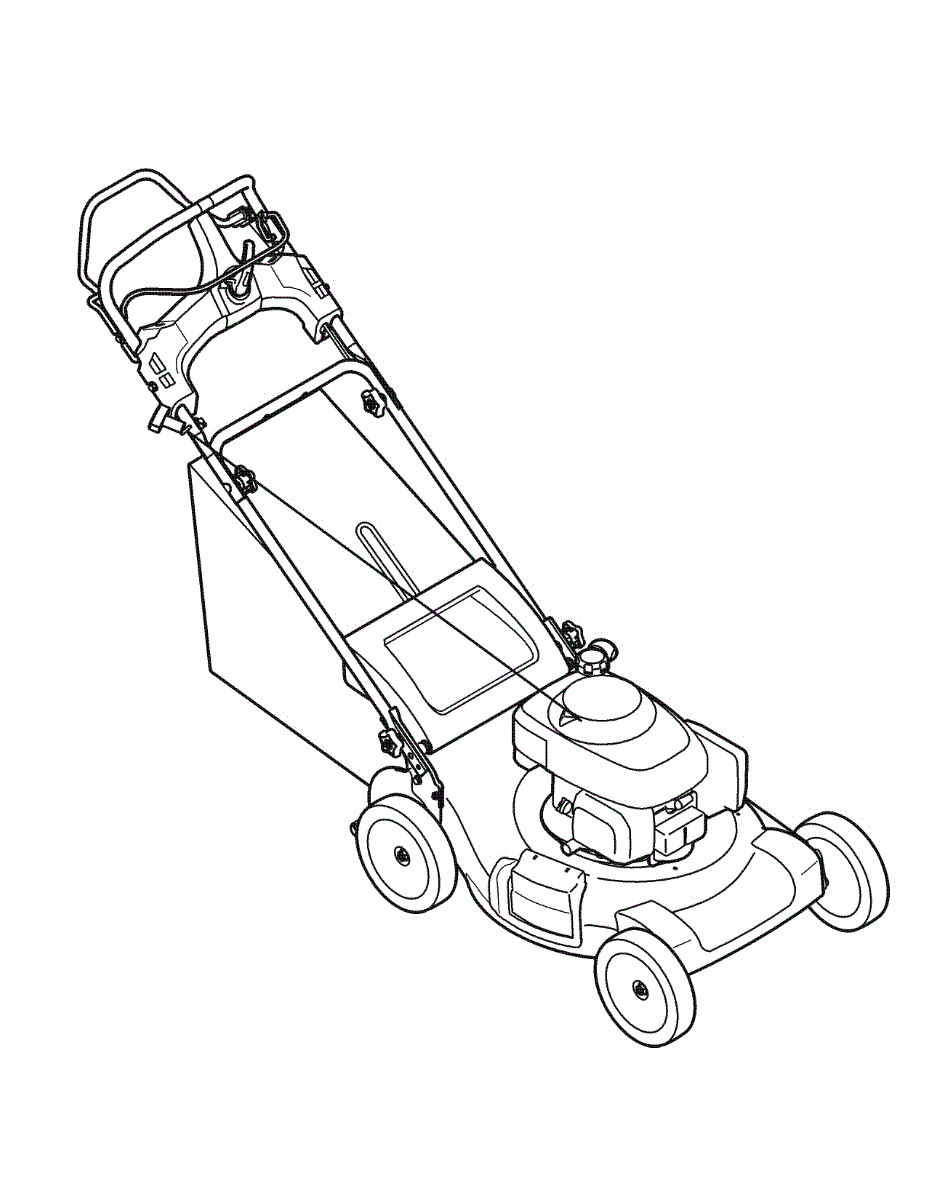

Parts for Platinum 12AI832Q724 / 2009: .Quick Reference Parts

Mulch plug assembly for walk-behind mowers. Blocks the discharge chute opening to enable mulching mode. Replace if cracked, broken, or missing.

Drive wheel kit for walk-behind mowers. Replaces worn, cracked, or damaged drive wheels that affect self-propulsion. Includes components for wheel assembly.

Air cleaner filter prevents dirt and debris from damaging your mower engine. Replace when thin, damaged, or dirty to maintain performance. Verify fit.

This replacement part is a V-belt. This is a genuine replacement part made by MTD. V-belts are usually found in engines and allow for the parts to run smoothly and efficiently while in use.A new v-belt might be needed if the current one is becoming worn down or is damaged. This can be caused by normal wear and tear over time as belts typically experience lots of friction during use. Be sure the engine is completely turned off and cooled down before attempting to replace any kind of belt. Refer to the owner manual for more specific directions on how to replace this part.This v-belt is a genuine OEM replacement part. This part is sold individually and is sourced directly from the manufacturer.

Replacement discharge chute for 21-inch walk-behind mowers. Directs grass clippings from the deck during discharge. Needed when original is cracked or missing.

Replacement grass bag assembly for walk-behind mowers. Attaches to catch grass clippings during mowing. Replace if torn, cracked, or missing.

Metal blade support spacer that mounts between the mower blade and bolt. Secures the blade to the deck base. Replace if worn, damaged, or missing.

Mower vibrating excessively or blade loosening? This blade adapter connects the motor shaft to the mower blade. Simple DIY repair, typically 15 minutes.

Hex bolt secures blade adapter and other components on lawn mowers. Replace if bolt is stripped, damaged, or missing to properly fasten parts.
