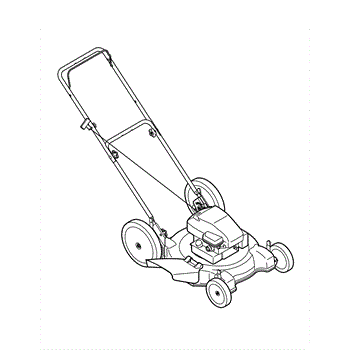

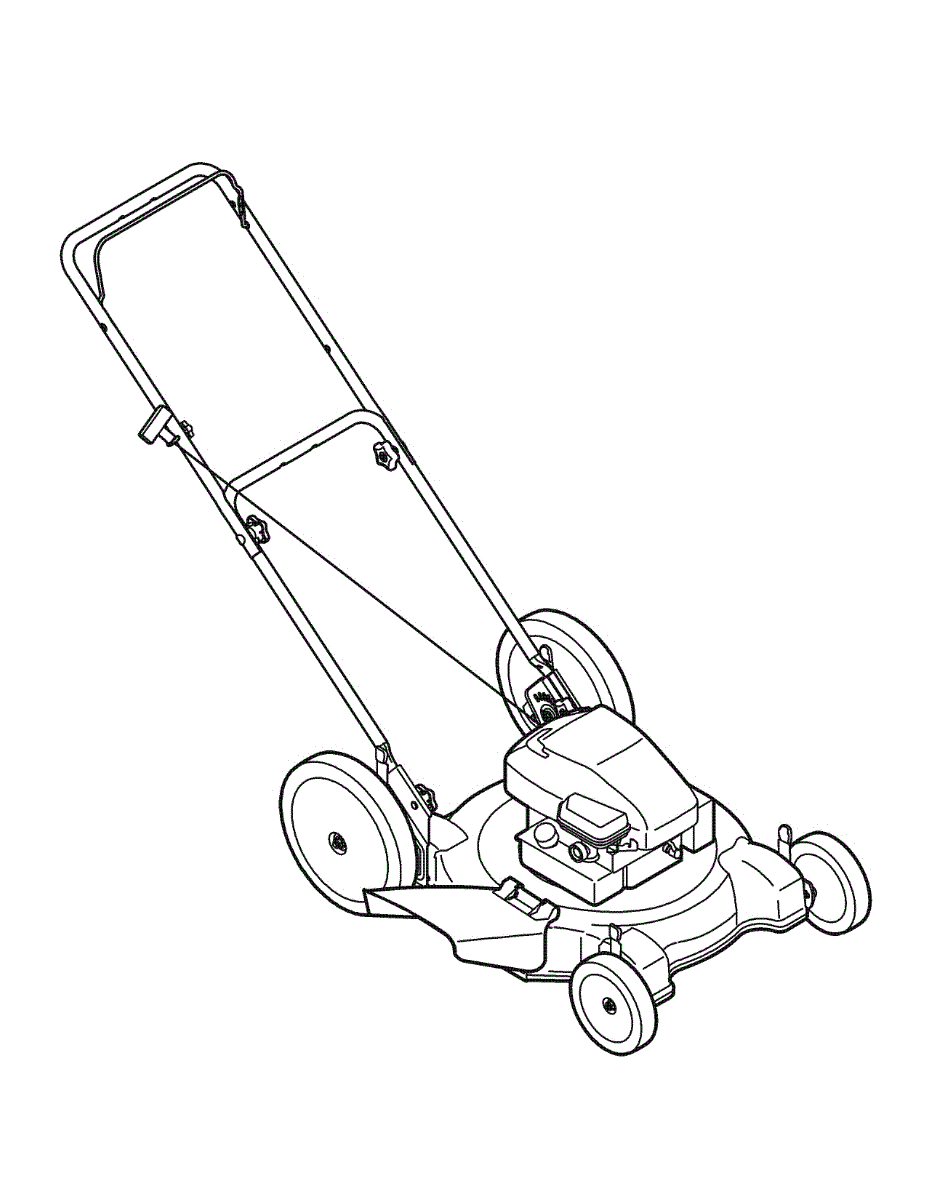

Parts for Yard Machines 11A-504G200 / 2009: .Quick Reference Parts

Replace your cracked, broken, or missing fuel tank cap. This vented cap seals the fuel tank on lawn mowers, tillers, and edgers to prevent leaks and spills.

Replace your worn or damaged 22-inch mulching blade. This lawn mower blade installs under the deck to finely cut grass clippings for mulching.

Replacement discharge chute deflector assembly for lawn mowers. Installs on the side deck to direct grass clippings. Replace if cracked or broken.

This is a rear trail shield - also called a rear skirt - that mounts to the back of a walk-behind lawn mower deck. It acts as a deflector to contain grass clippings, debris, and small objects thrown by the spinning blade. Replace this shield if it is cracked, missing, or warped, which can allow debris to be ejected from under the deck and create a safety hazard.

Replacement wheel for walk-behind lawn mowers and tillers. Mounts to the axle to support the deck and aid maneuverability. Replace if cracked or worn.

Mulch plug assembly for gas walk-behind mowers. Blocks the discharge chute to enable mulching mode. Replace if cracked, broken, or missing.

Air filter for lawn mowers and outdoor power equipment. Replace when dirty or clogged to maintain engine performance. Verify fit with your model number.

This part is a spark plug that is used on a number of lawn and garden power equipment. A spark plug is used as part of an internal combustion engine. The spark plug delivers the electric current from the ignition system to the engine.A new spark plug may be needed after normal wear and tear over a period of time. The operator of the outdoor power equipment may notice that the engine misfires or it is difficult to start. If this is the case, a new spark plug will be needed. Never perform care and maintenance on outdoor power equipment that is powered on. Remember to wear gloves when operating or performing care and maintenance on any outdoor power equipment.This spark plug is a genuine MTD part. It is sold individually. This particular spark plug is compatible with various outdoor power equipment that are manufactured by MTD, Yard Machines, Troy-Bilt, Bolens, Yard-Man, and Cub Cadet.

Metal blade support spacer that mounts between the mower blade and bolt. Secures the blade to the deck base. Replace if worn, damaged, or missing.

Hex bolt secures blade adapter and other components on lawn mowers. Replace if bolt is stripped, damaged, or missing to properly fasten parts.
