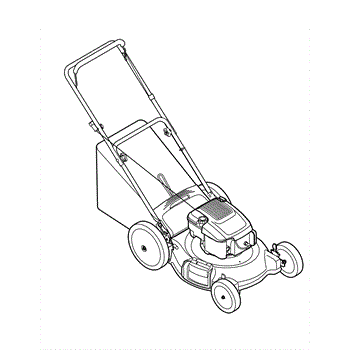

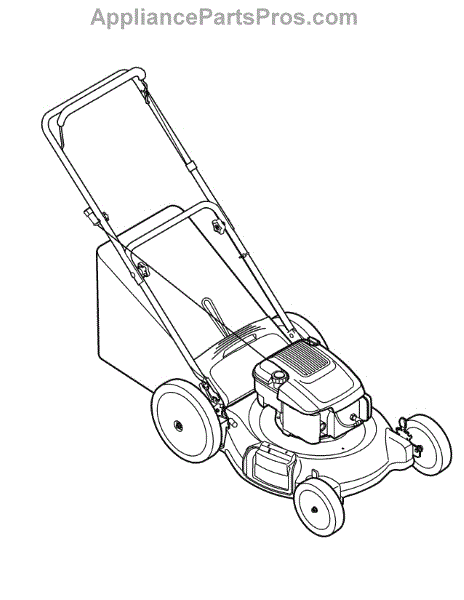

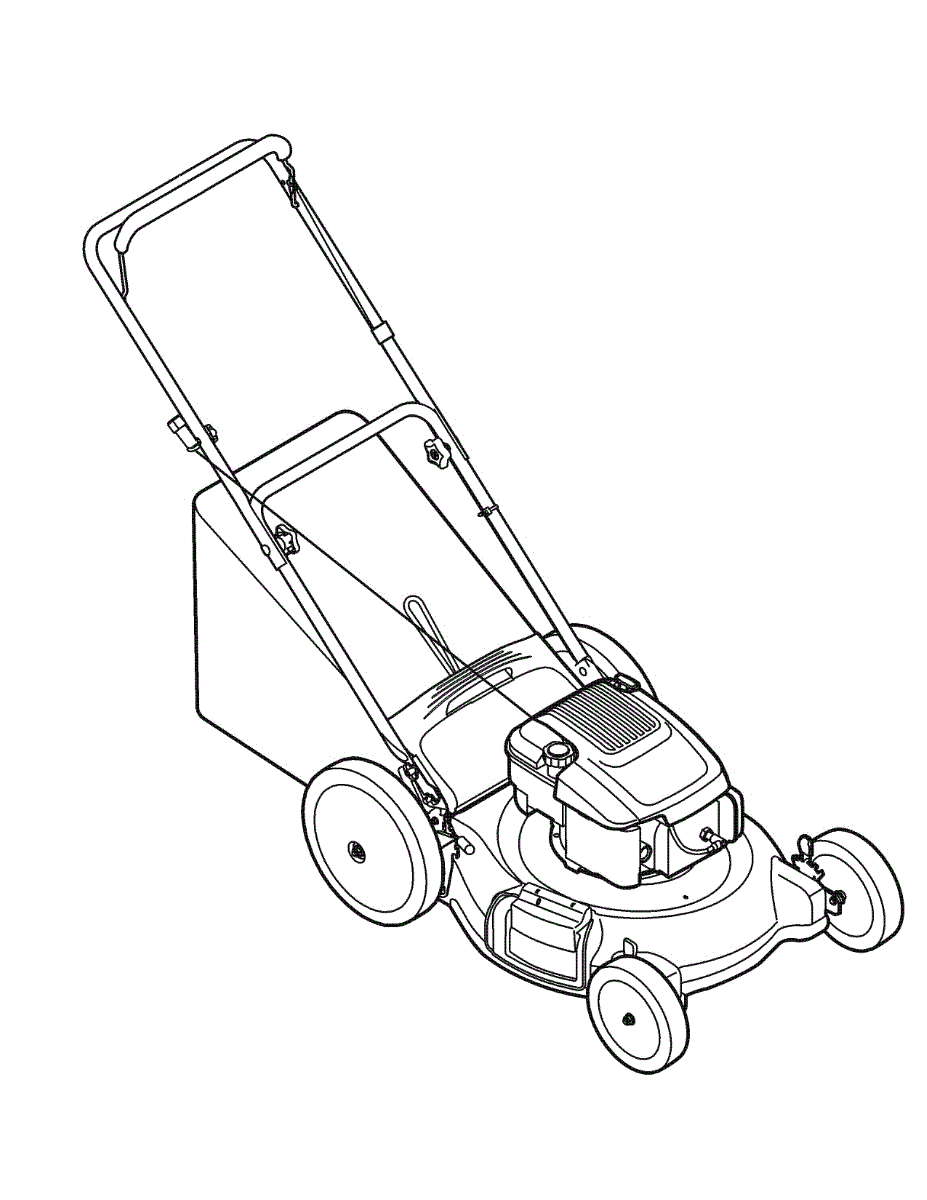

Parts for Yard Machines 11A-544E029 / 2009: .Quick Reference Parts

This wheel assembly is an authentic OEM replacement part sourced directly from the manufacturer for use on lawnmowers. This is a complete wheel assembly. The rim and wheel are one complete unit. If the lawnmower wheel is damaged and needs to be replaced, the entire piece can be taken off the mower and this assembly installed. Wheels can be damaged due to stationary objects that the mower runs over during operation or simply due to normal wear and tear. If the lawnmower is shaky or unstable during operation, the wheels should be inspected to determine which wheel needs replaced. It is a good idea to have an extra wheel assembly on hand so that the lawnmower can be repaired quickly if a wheel is damaged during use. Make sure the lawnmower is parked on a flat surface and that the spark plug is removed before repairing the wheel. Remove the nut holding the wheel on the shaft and set the nut aside. Place the new wheel on the shaft and use the nut to secure it. This wheel assembly is sold as an individual unit. It is designed for use on lawnmowers manufactured by Craftsman and MTD.

This hex screw can be used as a replacement part for the small engine of a lawn mower or a lawn tractor. The hex screw is a fastener with a six-sided head that is responsible for fastening components to one another. A hex screw might be lost or misplaced, which is a frequent occurrence in small engine appliances as a result of long-term usage. Hex screws are easily lost and misplaced as they are small components that do not necessarily cause damage upon unscrewing unless it results in the materials coming loose. If this is the case, or if the hex screw suffers from impact or corrosion to the metal material, the hex screw should be removed and replaced with this genuine OEM replacement for lawn mowers and lawn tractors. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. This is an OEM part sourced directly from the manufacturer, MTD. It is sold individually. This hex screw is compatible with the following brands: MTD, Troy-Bilt, Yard Man, and Bolens.

This blade adapter has a 25mm inner diameter and fits onto the blade of a variety of lawnmowers. The blade adapter allows the blade to connect to the spindle for proper performance. This blade adapter is made of metal. Regular wear and tear can cause the blade adapter to go bad or even split in half. When this happens, the blade adapter will need to be replaced.Before replacing the blade adapter, the lawnmower should be turned off and the spark plug wire needs to be disconnected. Turn the mower upside down to get access to the component. Use a socket set to remove the old blade adapter and replace it with the new component. Replace any other components, connect the spark plug wire, and test the machine before use. This component is sold on an individual basis. It is an authentic OEM replacement part that is directly sourced from the manufacturer. The blade adapter is made to be used with lawnmowers manufactured by MasterCut, Craftsman, Yard-Man, Cub Cadet, MTD, Troy-Bilt, and Yard Machines.

This replacement wheel is designed for use with select walk-behind lawn mowers. The wheel is one of four on a mower that is responsible for keeping the deck from making contact with the ground. It also helps maneuver the mower through grass and on uneven terrain. It is attached to the axle with a nut that allows it to spin when the mower is pushed. Wheels can become worn over time or become damaged in a way that stops them from functioning correctly. In that case, a replacement of the wheel would typically be the best option. Without functional wheels, mowing could become difficult or even impossible. This replacement wheel will resolve the issue for compatible models. This genuine OEM wheel is manufactured by MTD. It can be used with hundreds of walk-behind lawn mowers from MTD, Craftsman, Troy-Bilt, Yard Machines, Yard Man, RYOBI, Bolens, and Husky. This wheel is made of high-quality durable plastic and sold as a single unit. Those who need more than one wheel will have to purchase multiple quantities. A socket set or wrench will be required for a wheel replacement. Always wear gloves when performing equipment repairs.

This 21-inch deck chute is an OEM-authorized part that is designed for use with select walk-behind push lawn mowers. The deck chute directs the grass clippings that are expelled by the mower blade as they are discharged from the deck. The mower deck cover should be removed and replaced with the chute, as they will not both fit on the hinge at the same time. This chute sees a lot of use and is subject to potential impact with the ground and various obstacles, which makes it prone to damage over time. It can even become detached and need a full replacement. This genuine OEM chute will provide the perfect fit for compatible mowers. This deck chute is manufactured to specific standards by MTD and can work with over 150 machines from RYOBI, Yard-Man, Yard Machines, Troy-Bilt, MTD, Bolens, Husky, and Cub Cadet. Refer to the parts diagram and owner's manual to confirm part number compatibility and location of the chute. This part is made of durable plastic material and is sold as a single unit. Hardware is not included with this part and will require an additional purchase. Always disable the engine before working near the mower blade for safety.

This OEM part is a 21 inch grass catcher frame that is used on walk-behind lawnmowers. The grass catcher frame holds and secures the fabric bag which catches the grass clippings from the lawnmower as it cuts them.The grass catcher frame may need to be replaced if it has broken or if it has become bent due to use over time. The operator may notice that the grass-catching bag is dragging on the ground or it is not staying in place; these are signs that the grass catcher frame needs to be replaced. This grass catcher frame part is a genuine Ryobi part sourced directly from the manufacturer and it is sold individually. It is used on both push and propelled walk-behind lawnmowers that are manufactured by Troy-Bilt, Ryobi, MTD, Bolens, Yard-Man, Yard Machines, Cub Cadet, and Husky. Please note that this is just the frame, it does not include the fabric bag.

This MTD 17211-ZL8-023 Air Cleaner is used in lawnmowers to help prevent dirt, dust, and other debris from contaminating the carburetor and damaging the engine. A lawnmower's air filter is typically housed in a plastic or metal case and usually mounted on top of the engine. It comes in paper, foam, or a combination of the two. The foam filter can be cleaned with water and detergent, while the paper filter requires replacement at least once a year. If the air filter is clogged or dirty, the engine may not start or may run rough. In this case, the filter needs to be replaced to breathe new life into the engine. Regular maintenance is essential and installing a new air filter can help keep the engine running in top condition. Aside from lawnmowers, this MTD air cleaner can be used in log splitters, pressure washers, generators, and tillers. It is also compatible with other brands like Briggs & Stratton, Craftsman, Cub Cadet, Honda, Huskee, Lawn-Boy, MasterCut, Toro, Troy-Bilt, Murray, Yard Machines, and Yard-Man. It is an OEM part sourced directly from the manufacturer and is sold individually.

This is a Briggs & Stratton Original Equipment 491588S Air Filter Cartridge. The purpose of this filter is to prevent dirt, dust, and debris from contaminating the carburetor and damaging the engine. This flat panel style, pleated paper air filter provides the first line of defense against the destructive effects of dirt ingestion. It is designed for 3.5 through 6.75 HP quantum engines and 625-1575 series engines. Over time, the air filter can get clogged or damaged, and this can lead to reduced engine performance. Locate the air filter cover, unscrew it, and remove the old filter. Make sure to clear out any debris that has found its way into the air filter assembly before inserting the new cartridge. Reattach the air filter cover and secure it with the screws. This replacement part works with generators, lawnmowers, pressure washers, wood chippers, and tillers. Aside from Briggs & Stratton, it is also compatible with specific products from Craftsman, Husqvarna, Lawn-Boy, Toro, Troy-Bilt, Simplicity, Snapper, and Wheel Horse. It is a genuine OEM replacement part and is sold individually.

A train shield is found on many walk-behind lawn mowers. It is located on the rear side of the lawn mower. The function from the position where it is mounted is to keep grass from expelling from the mower deck. With use or as a result of accidental impact, the train shield may become damaged or fall off. If the train shield is broken or missing, it will allow grass to come out from the mower deck, which poses a safety risk. Check to see if grass is being expelled from the motor deck.Installing a train shield on a lawn mower is an easy task. There is hardware required to secure the part in place. Wear gloves for protection. Make sure the machine is entirely cool.This train shield is a genuine OEM replacement part. It is sourced from the manufacturer. The train shield is made of durable, high-quality plastic. It is sold individually. The train shield can be installed on MTD, Troy-Bilt, Yard-Man, Bolens, Yard Machines, Cub Cadet, and Huskee brand lawn equipment. It is compatible with several models of walk-behind lawn mowers.

Mowers are manufactured to last for about 500 hours of running, which breaks down to about 19-20 years for the typical non-commercial user. Commercial mowers, which see a great deal more use, are designed to last for 1000 hours of service, which is about 10 years. To extend the life of a lawn mower to its full potential, there are certain simple preventative routines a user can follow, including annual oil and filter changes. One important routine maintenance ritual for mowers that is often overlooked is changing the air filter, something that should be done at least annually. When the mower chugs, cycles, or simply will not start, the first thing to check is the air filter. When replacing the filter, make sure to use a genuine OEM certified replacement part like this one, which is manufactured according to the specification of the original factory filter. This filter is compatible with Bolens, Yard-Man, Troy-Bilt, Yard Machines, and MTD.

This part is a spark plug that is used on a number of lawn and garden power equipment. A spark plug is used as part of an internal combustion engine. The spark plug delivers the electric current from the ignition system to the engine.A new spark plug may be needed after normal wear and tear over a period of time. The operator of the outdoor power equipment may notice that the engine misfires or it is difficult to start. If this is the case, a new spark plug will be needed. Never perform care and maintenance on outdoor power equipment that is powered on. Remember to wear gloves when operating or performing care and maintenance on any outdoor power equipment.This spark plug is a genuine MTD part. It is sold individually. This particular spark plug is compatible with various outdoor power equipment that are manufactured by MTD, Yard Machines, Troy-Bilt, Bolens, Yard-Man, and Cub Cadet.

The blade support is found between the blade and the bolt. As its name suggests, it is designed to provide support for the blade to ensure it is secured to the base of the mower deck. It is made of metal and it will need a replacement if it becomes worn or damaged. To replace a blade support or blade spacer, first, the engine needs to be cool. Remove the wire and boot from the spark plug. Tip the mower back on its handle assembly and use a piece of wood or sturdy object to hold the cutting blade in place. Remove the old blade support and blade. When installing the new one, ensure that the blade's sharp edge faces away from the mower deck. Re-thread and torque the bolt between 40 and 50 ft-lbs. This is an original OEM replacement part for lawnmower blade support made by Craftsman, Cub Cadet, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Bolens, Yard-Man, MasterCut. It is sold individually.

Lawnmowers and other lawn and garden equipment need to be mobile, and that means they need wheels. There are many warning signs that it is time to replace the wheel. For example, if a self-propelling machine struggles to move easily or if a push mower is not operating as smoothly as in the past, it may be that the wheel assembly has failed. The reasons for failures include the materials, the amount of weight put on the wheels, the amount of use, and the type of use. Changing a wheel is simple but requires the appropriate parts. It features a bar tread and roughly 8 in diameter. It should work with all self-propelled and manually operated mowers, as well as the machine and equipment types listed. This authentic OEM complete wheel replacement will work on chipper and shredder machines, edgers, and lawnmowers from the Craftsman, Bolens, and Yard Machines brands. It will also work with Ryobi, MTD, Huskee, and Yardman equipment. It will require the appropriate hardware, which is not included.
