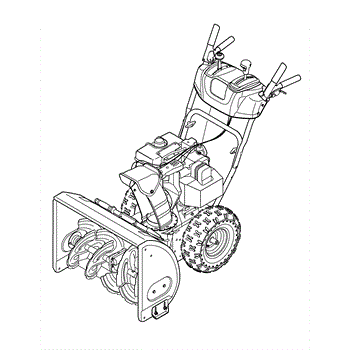

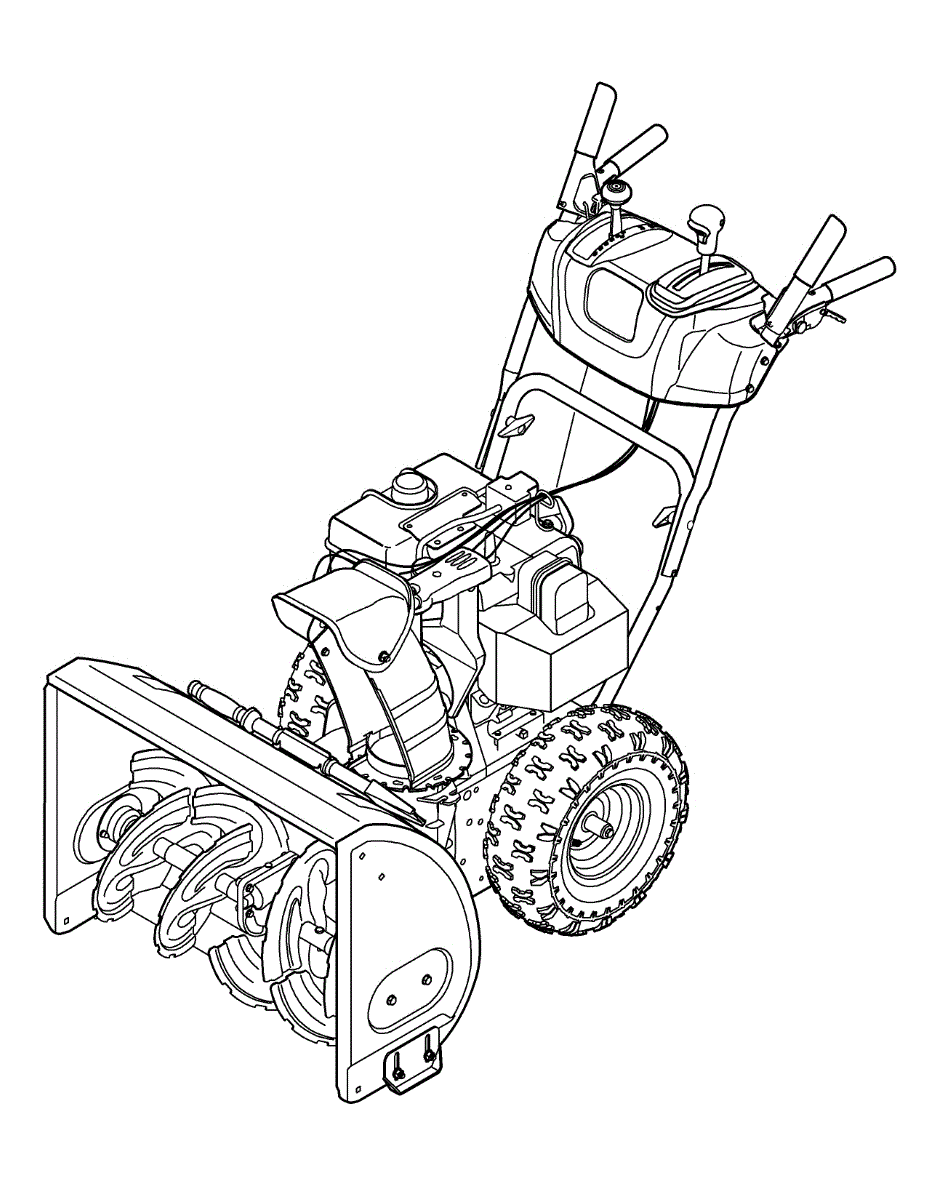

Parts for Yard-Man 31AE5KLF801 / 2006: .Quick Reference Parts

This belt is used for snowblowers. When the machine is running, the belt turns and propels the auger, which then blows the snow through the chute. If the belt is broken or otherwise not functioning properly, the snowblower will not work.The belt may need to be replaced for any number of reasons. It could become damaged while in use, although this is rare. Over time, the belt could start to stretch and weaken. It may not longer provide the same level of efficiency as when it was new. There is also the chance that the belt could snap. When replacing the belt, it is recommended that the owner also clean the pulleys. This can prevent premature wear and tear.This snowblower belt is for use with many models from MTD, Yard Machines, Cub Cadet, and Troy-Bilt. The belt is a genuine OEM replacement part sourced from the manufacturer. It is sold individually.

This replacement part is a key starter. This is a genuine replacement part made by MTD. This handy part is made to assist users in starting up and turning off riding lawn mowers. This works with the key itself to allow the user to control the engine during use.A new key starter might be needed if the current one is damaged. This can be due to an isolated incident or from normal wear and tear caused over time. If the key starter is damaged, it should be replaced as soon as possible so that the machine can return to working order. Be sure to refer to the proper user manual before attempting to replace this part. This part is also a genuine OEM replacement part to ensure proper fit. This part is sold individually and is sourced directly from the manufacturer.

Slide shoes, otherwise known as skid shoes, are attached to a snowblower to help protect the concrete it moves over. The slide shoe also helps to protect the underside of the snowblower. They are composed of metal and are attached to the bottom of the machine. With use, the slide shoes may wear down. They can also become defective from accidents while operating the snow throwing machine. When the slide shoes are not working correctly, there can be irreversible damage done to both the snowblower and the concrete. Replacement slide shoes can easily be attached to the bottom of a snowblower. Be sure to allow the machine to cool down completely. It's recommended to set the snowblower on top of a piece of cardboard. Remove the old shoes and install the new ones, tightening all nuts and washers while the skid shoe is flat on the ground.This is a manufacturer supplied OEM MTD snowblower slide shoe. Each shoe is sold separately. The slide shoe is made of high-quality, durable black steel. It is suggested to replace both shoes simultaneously to ensure an even and consistent path for the MTD snowblower.

This part is a spark plug that is used on a number of lawn and garden power equipment. A spark plug is used as part of an internal combustion engine. The spark plug delivers the electric current from the ignition system to the engine.A new spark plug may be needed after normal wear and tear over a period of time. The operator of the outdoor power equipment may notice that the engine misfires or it is difficult to start. If this is the case, a new spark plug will be needed. Never perform care and maintenance on outdoor power equipment that is powered on. Remember to wear gloves when operating or performing care and maintenance on any outdoor power equipment.This spark plug is a genuine MTD part. It is sold individually. This particular spark plug is compatible with various outdoor power equipment that are manufactured by MTD, Yard Machines, Troy-Bilt, Bolens, Yard-Man, and Cub Cadet.

This is a replacement shave plate for use with snowblowers. The plate attaches to the bottom of the auger housing on the machine and provides protection for the auger and the housing. If it is broken or not functioning properly, debris could damage these other parts of the snowblower. This would then require a larger repair.The shave plate is made from metal and is durable. However, the nature of the plate is to provide protection, which means it will become dinged and damaged over time. It could become bent if the user hits a large rock or chunk of ice. If there is damage to the snowblower shave plate, the user should be sure to replace it before using the machine again.This snowblower shave plate is compatible with models from Craftsman, MTD, White Outdoor, Ranch King, Yard-Man, and Yard Machines. The plate is sold individually, and it is a genuine OEM replacement part sourced from the manufacturer.

This replacement is a friction wheel assembly that is designed to work with a snow blower. The friction wheel engages the friction disc assembly to assist in the forward and rearward travel movement of the snowblower. If the friction wheel becomes worn or damaged, the snowblower moves slowly or erratically. Prior to the start of this project, ensure all appropriate personal protective equipment is worn. This would include work gloves and eye protection. To replace this part, first disconnect the spark plug wire. Then, remove the frame cover and wheels. Next, remove the hex shaft mounting nut and the friction disc. Clean the shaft and install the new friction disc. Reinstall the wheels and the frame panel. Reconnect the spark plug and test the snowblower. The snowblower is now ready for use.To clean the friction wheel assembly, remove the cover of the snowblower to expose the friction wheel. With all PPE donned, take a cloth with a small amount of gas saturated on it and place it over the friction wheel. Spin the wheels to engage the friction wheel. The gas saturated cloth will work by cleansing the grease off the friction wheel. Once there is no more grease coming off the friction wheel, take a dry cloth and repeat the steps to dry the friction wheel assembly. Replace the frame cover and the snowblower is ready for use. The friction wheel assembly is manufactured and compatible with MTD, Craftsman, Troy-Bilt, Noma, Murray, Ariens, Husqvarna, Snapper and Yard Man snowblowers. This is a genuine OEM part sourced directly from the manufacturer and it is sold individually.

This is a replacement skid shoe for Craftsman snowblowers. Ideally, when one shoe becomes so worn that it needs to be replaced, the other shoe should be replaced as well. Replacement is not difficult and should only require about half an hour. First, take out the key and disconnect the plug wire to prevent the machine from starting during repair. Remove the carriage bolts, nuts, and washers that hold the skid shoes in place. Replace the skid shoes. Ensure that the adjustable skids shoes are elevated enough that the snow blades will not collide with the ground during use. This will prolong the life of the shave plate. This OEM part fits a variety of different snowblowers made by Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man. Sold individually. The carriage bolts that hold the shoe in place may also need to be replaced and are sold separately.

The shear pin’s purpose is to stop the engine when it is broken. If the machinery hits something hard, the shear pin will break. This prevents injuries that could be fatal. If something large or small becomes clogged or jammed in the auger, the shear pin is meant to snap in half, rendering the auger useless. This happens once the auger reaches a certain point in pressure load, which also prevents damage to the rest of your equipment. The auger part of your machinery cannot turn without a shear pin. Since the purpose of the shear pin is to break on impact, it's a good idea to have several of these on hand for quick replacements. There’s nothing like having your equipment break down in the middle of a job. Repair is simple. Just remove the broken shear pin, line up the auger’s holes, and insert your new shear pin. Use the cotter pin to secure your shear pin. This genuine OEM auger shear pin works in conjunction with small engine equipment with augers made by Craftsman, Cub Cadet, MTD, Troy-Built, Yard Machines, and Yard-Man. This part is sold individually. Consider also ordering an MTD Pin-Bow Tie Cotter or retaining clip.

A cotter pin, also known as a hitch pin, is used to secure pins and shafts in place. Meant for snowblowers, riding lawnmowers, and lawn tractors, this bow-tie shaped cotter pin has a double-end design making it easy to pull or push through either side of a pre-drilled hole. This pin snaps into a locked position without tension, keeping it secure during operation. Designed for lawn and garden maintenance equipment, this part ensures secure fastening. If the power equipment is used frequently, cotter pins may have to be replaced regularly so it would be practical to keep extra bow tie cotter pins on hand. It is highly recommended that work gloves be worn during the installation of this part. This part is compatible with Craftsman, Cub Cadet, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Bolens, Yard-Man, and MasterCut brands of lawn mower, snowblower, and log splitters. This is a genuine OEM replacement part that is sold individually.
