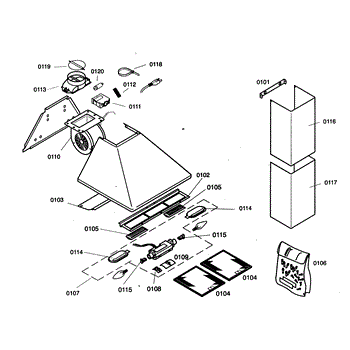

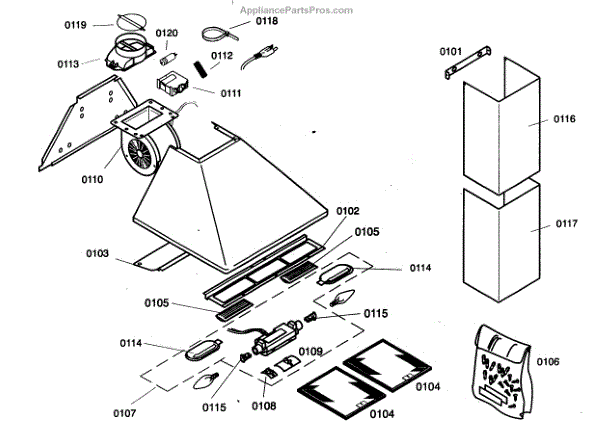

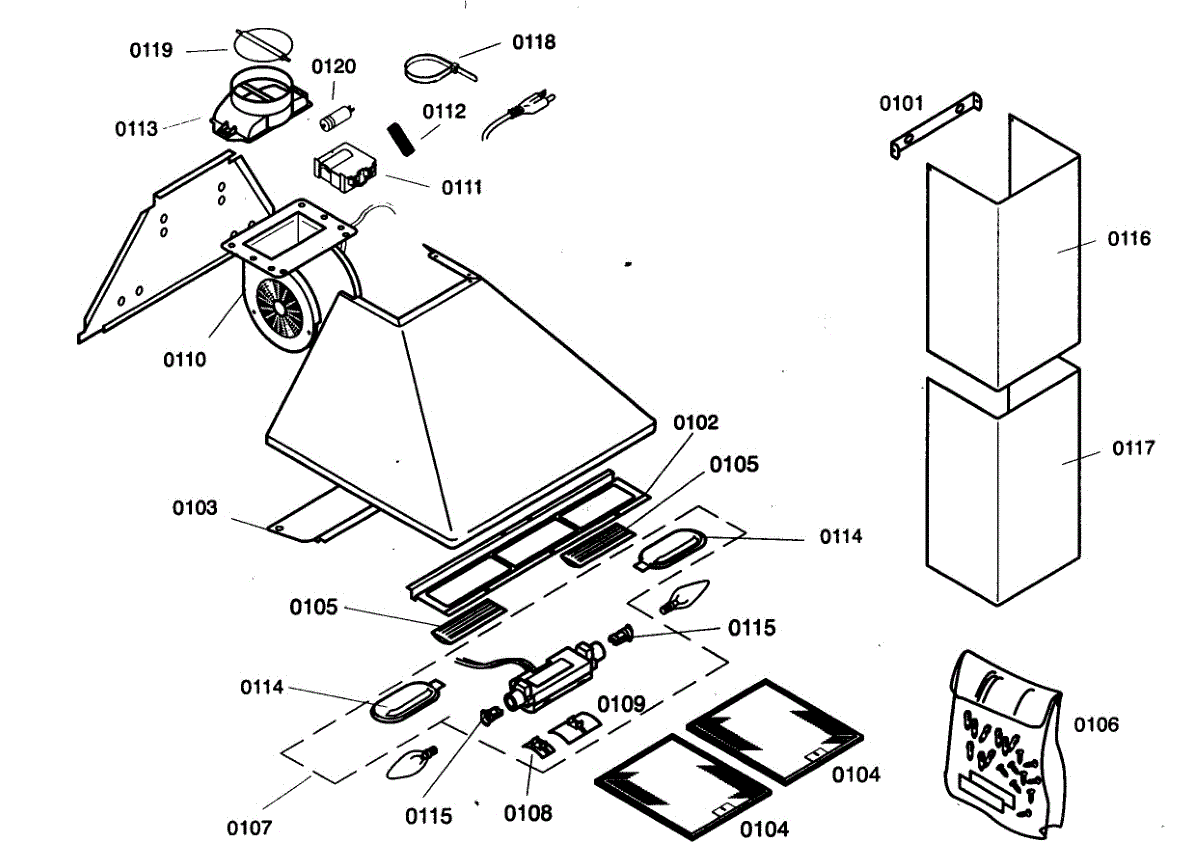

Parts for Bosch DKE9306AUC: Range Hood Assembly Parts

Mounting bracket for range hood installation. Securely attaches hood to wall or cabinet. Replace if bent, cracked, or rusted to restore stability.

Illuminates your cooking surface. Replace when lights flicker, dim, or fail to turn on. Verify compatibility with your range hood model number before ordering.

Metal mesh grease filter traps airborne cooking residues to protect your range hood's blower. Replace when clogged to restore airflow. Confirm fit with model.

This is a translucent cover that fits over the light bulb on a range hood, diffusing the light and protecting the bulb from grease and moisture. It snaps or slides into place on the underside of the hood. Replace this lens if it is cracked, yellowed, missing, or no longer clips securely into position.

This air channel directs airflow inside the appliance to support proper venting and drying performance. It replaces a damaged or cracked channel to restore routed air pathways and reduce airflow leaks. What it does:

• Channels circulating air through the appliance cabinet to support drying and ventilation
• Helps maintain correct airflow patterns that can affect drying time and cycle performance
• Can prevent air bypass caused by cracked, broken, or warped channel pieces
• May be replaced when visible damage, distortion, or air leakage is present

• One air channel

• Designed for direct replacement; inspect surrounding clips/gaskets and replace if brittle or damaged
• Power off and unplug the appliance (or disconnect power) before beginning service
• Use appropriate hand tools and avoid forcing plastic tabs to prevent breakage

Light socket for range hood bulb installation. Replaces cracked, melted, or corroded sockets that no longer hold bulbs securely or make proper contact.

Replacement air channel for range hoods. Guides airflow from the blower to the vent outlet. Replace if cracked, damaged, or missing to restore proper ventilation.

Air channel for range hood ventilation systems. Directs airflow from the blower to the exhaust duct. Replace if cracked, damaged, or missing.

A one-way flap (check valve) that directs airflow/liquid in a single direction to prevent backflow and protect the appliance's internal components. Replaces a worn or damaged flap to restore proper flow control. What it does

• Blocks reverse flow to prevent odor, water, or air from returning into the appliance.
• Helps maintain correct drainage/venting or airflow depending on application.
• Commonly needed when you see intermittent backflow, odors, or reduced drainage/venting performance.
• Works as a passive one-way seal—no electrical connection.

• Install in the orientation shown in the appliance's parts diagram; wrong direction prevents proper function.
• Inspect mating seals and mounting surfaces for damage; replace if torn or warped.
• Disconnect power and water (if applicable) and follow the appliance manufacturer's safety instructions before servicing.

Fix a ventilation fan that won't start or runs weakly. This motor capacitor restores reliable operation when the original fails in downdraft systems.
