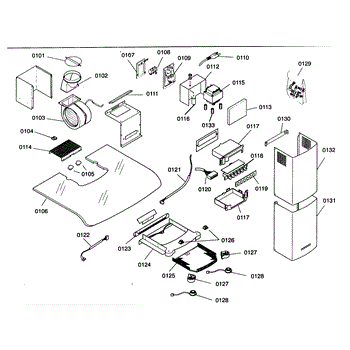

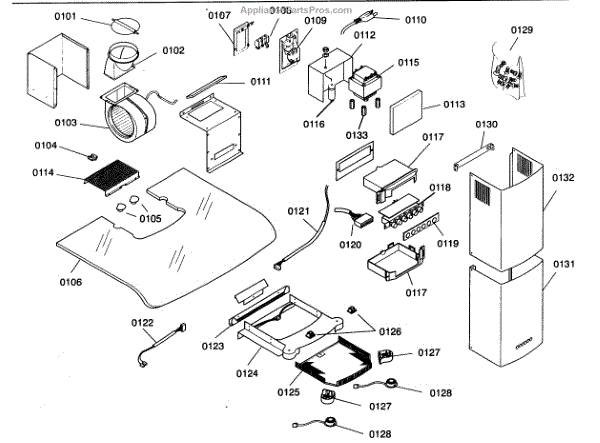

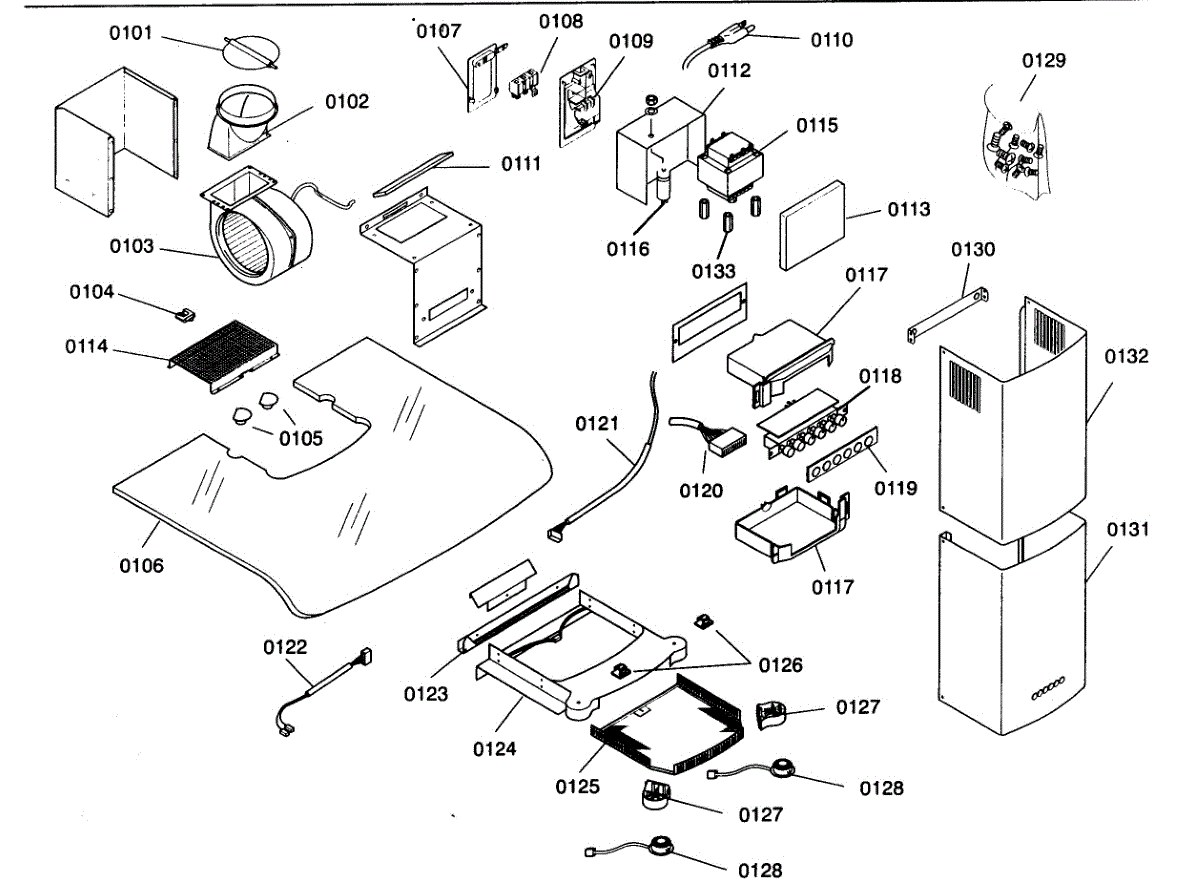

Parts for Bosch DKE9505AUC: Range Hood Assembly Parts

A replacement power transformer that supplies the control board with the low-voltage power it needs to operate. Restores proper control function and helps resolve power-related control failures. What it does

• Converts incoming mains voltage to the low-voltage supply used by the appliance control board.
• Commonly replaces a failed transformer when the control board loses power or behaves intermittently.
• Can stop symptoms such as a dead control panel, unresponsive buttons, or intermittent operation when caused by a failed transformer.
• Works as the electrical interface between the main power and the appliance's electronics.

• Disconnect power to the appliance before starting any repair to avoid shock risk.
• Handle wiring carefully and match connectors/terminals exactly; take a photo before disconnection for reference.
• Requires basic hand tools; mounting screws and connector retainers should be reused unless damaged.

The Capacitor is an OEM part for Bosch vent hoods. This part temporarily stores electrical energy to generate stable high voltage for halogen light operation.

Situated near the light ballast, the capacitor traps charges that build up after each discharge then holds them for instantaneous delivery during the next bulbs ignition. This allows continuous high-frequency halogen lighting for enhanced visibility over cooktops.

Symptoms of a faulty capacitor include:

• Dim or flickering halogen lights failing to illuminate as intended
• Buzzing noises or humming from internal components
• Lights refusing to trigger on or operating intermittently
• Tripped circuit breakers due to capacitor malfunction

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This wire harness assembly routes power and signals between components, restoring electrical connections for proper appliance operation. Use it to replace damaged, frayed, or disconnected wiring that can cause intermittent or no power to parts. What it does:

• Provides factory-style wiring connections between control, sensors, and motors
• Replaces damaged or burned wires and faulty connectors that cause intermittent faults
• Restores reliable voltage and signal paths to eliminate component communication issues
• Helps stop arcing, shorts, or open circuits caused by worn insulation or broken terminals

• Disconnect all power before inspecting or replacing wiring to avoid shock or short circuits
• Match connector shapes and pin counts; do not force connectors together
• Route the harness away from sharp edges and moving parts; secure with existing clips or ties

This halogen oven light replaces a burned or dim interior cooking lamp so you can clearly see inside the oven while cooking. It restores interior illumination with the same fit and function as the original lamp. What it does

• Replaces a failed or flickering oven interior lamp
• Restores bright, focused halogen illumination for better visibility while checking food
• Helps diagnose lighting issues by eliminating the bulb as the cause of a dark oven
• Matches common oven lamp sockets for direct replaceability

• Allow the oven to fully cool and disconnect power before accessing the light
• Use a cloth or gloves when handling the bulb to avoid skin oils on the glass
• Remove the light cover per your oven's instructions before replacing the bulb
