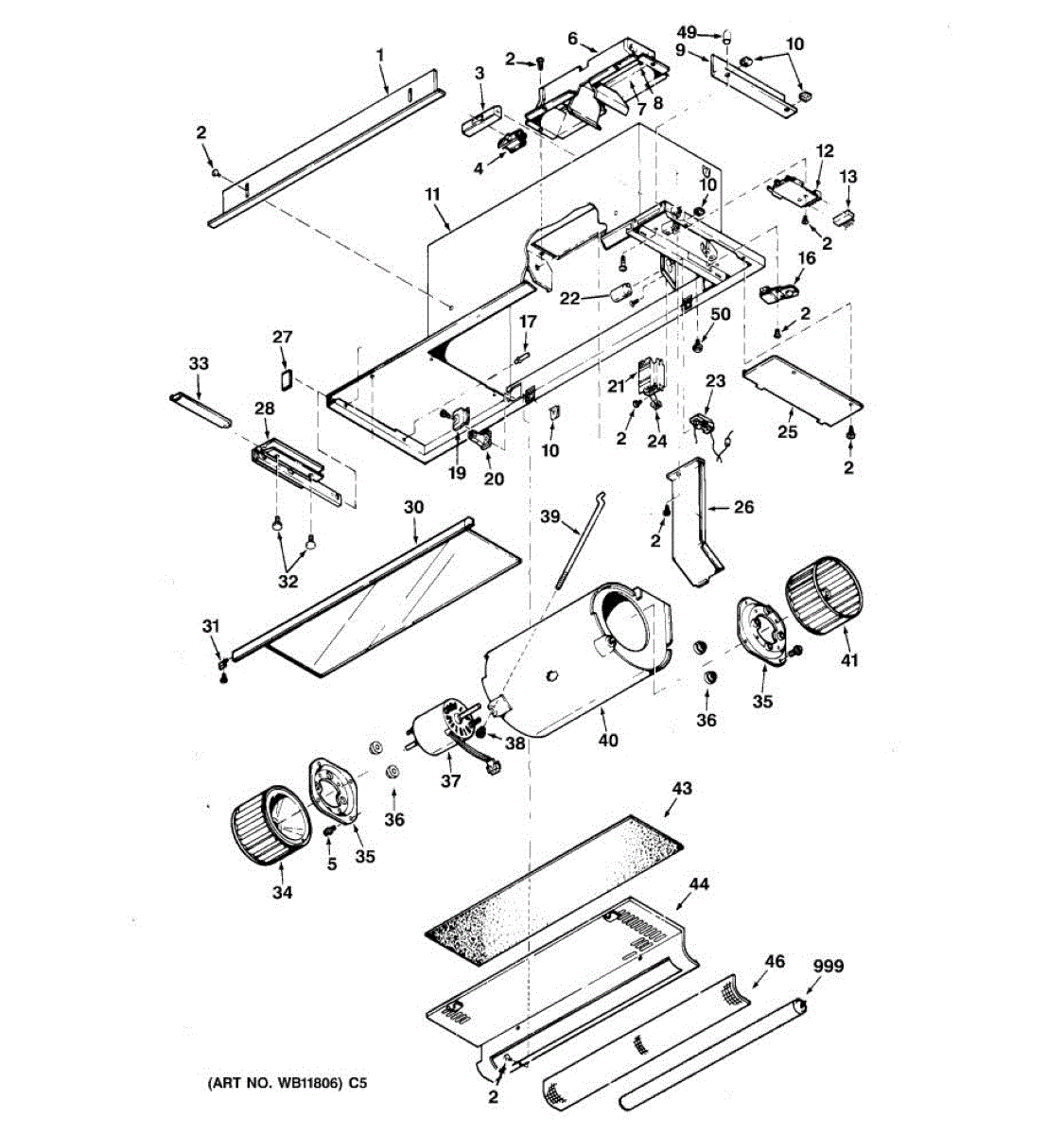

Parts for Ge JV694SBB: 01 - Range Hood Parts

Phillips truss head screw for range hood assembly. Secures internal components and housing panels. Replace if stripped, missing, or damaged during installation.

Touch pad control trim for range hoods. Replaces cracked, broken, or worn trim panels on the control interface. Essential for restoring appearance.

Damper assembly installs in your range hood duct system to control airflow. Replace if damaged, cracked, or missing to restore proper ventilation.

Replace a cracked, broken, or missing range hood damper. Installs in the exhaust duct system to prevent backdraft when the hood is not in use.

Left-hand mounting bracket assembly for range hoods. Secures hood to wall or cabinet. Replace if bracket is bent, cracked, or missing hardware.

Right mounting bracket assembly for range hoods. Secures hood to cabinet or wall. Replace if bent, cracked, or missing to ensure proper installation.

Tinnerman nut clip secures components in your compactor or hood. Replace if loose, damaged, or missing to maintain proper assembly. Verify fit with model.

Fix a hood fan that only works on high speed or requires manual spinning to start. This control board regulates fan speed settings and motor operation.

Replace your hood's blower and light switch assembly if buttons don't respond or fan won't turn on. Includes integrated thermostat control. Easy install.

This blind rivet secures appliance panels and small components by forming a tight, permanent connection when installed. It restores proper fit and reduces rattles caused by missing or damaged fasteners. What it does:

• Anchors trim, panels, and brackets to sheet metal where access is limited
• Creates a strong, tamper-resistant connection once set
• Helps eliminate loose or vibrating panels and noise symptoms
• Commonly used where a nut or weld is not practical

• One blind rivet

• Installed with a compatible blind-rivet (pop-rivet) tool; follow tool manufacturer's instructions
• Wear eye protection and gloves when riveting
• Replace only with the same rivet size and style to ensure proper fit and strength

A lampholder bucket that secures the oven/stove lamp socket and positions the bulb for proper illumination. Replaces damaged or melted lamp housings to restore the light assembly and protect wiring from heat. What it does:

• Holds and aligns the o

Black access cover for range hood housing. Replaces cracked, broken, or missing covers on control panel or motor access areas. Direct fit part.

Endcap for range hood assemblies. Installs at the terminal edge to provide finished appearance. Replace if cracked, broken, or missing.

Replace your hood blower wheel if your range hood runs but has weak airflow or makes excessive noise. Restores proper ventilation and quiet operation.

Rubber motor mount cushions and secures the blower motor in your range hood. Replace if cracked, deteriorated, or missing to restore proper motor support.

Blower scroll housing for range hoods. Encloses and directs airflow from the blower motor. Replace if cracked, damaged, or missing to restore proper fit.

If your range hood isn't venting properly or making unusual noises, a worn blower wheel may be the cause. This part restores proper airflow in minutes.

Captures grease and smoke from cooking emissions in your range hood. Replace when clogged or visibly dirty to maintain ventilation. Verify fit with model.

Plastic cap cover for range hoods and ovens. Installs on exterior housing to conceal fasteners or cover openings. Order a replacement if cracked or missing.

A small replacement screw used to fasten appliance components where the OEM "ws bdrh" screw is specified. Replacing a worn or missing screw restores secure attachment and helps eliminate vibration or loose parts. What it does

• Secures panels, brackets, or internal components in place to maintain proper alignment and function.
• Prevents rattling, vibration noise, and parts from shifting during operation.
• Helps maintain safety by keeping covers and guards fastened.
• Works wherever the OEM "ws bdrh" screw is specified in the service diagram.

• Use the correct screwdriver or driver bit to match the screw head to avoid stripping.
• Tighten to a snug fit; avoid overtightening which can strip threads or crack plastic parts.
• Disconnect power and follow appliance safety procedures before accessing internal parts.

Replace your range hood light bulb to restore bright task lighting over your cooktop. Install when bulb burns out or dims. Verify compatibility with your model.
