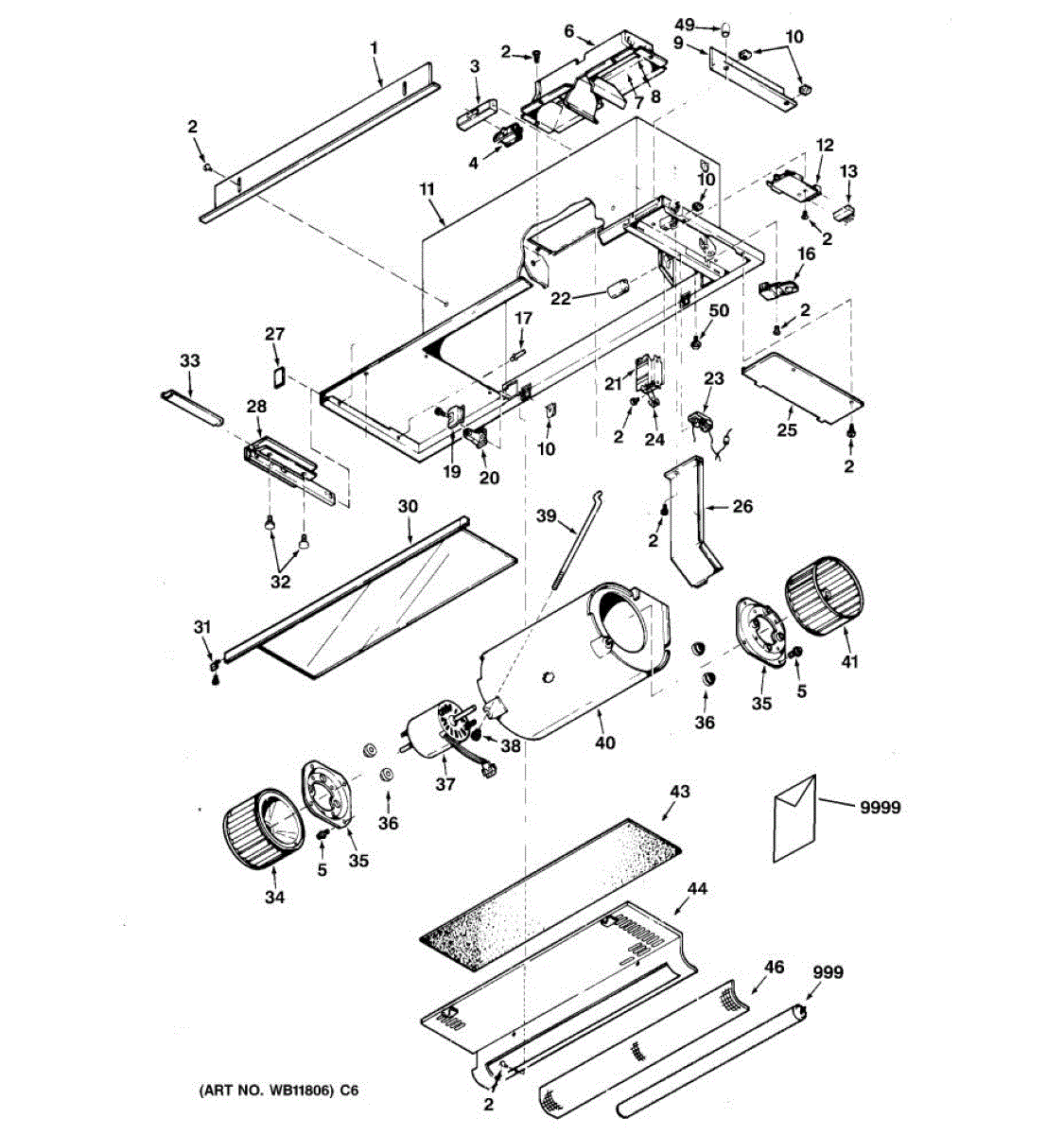

Parts for Ge JV696SCC: 01 - Range Hood Parts

Damper assembly installs in your range hood duct system to control airflow. Replace if damaged, cracked, or missing to restore proper ventilation.

Replace a cracked, broken, or missing range hood damper. Installs in the exhaust duct system to prevent backdraft when the hood is not in use.

Left-hand mounting bracket assembly for range hoods. Secures hood to wall or cabinet. Replace if bracket is bent, cracked, or missing hardware.

Right mounting bracket assembly for range hoods. Secures hood to cabinet or wall. Replace if bent, cracked, or missing to ensure proper installation.

Tinnerman nut clip secures components in your compactor or hood. Replace if loose, damaged, or missing to maintain proper assembly. Verify fit with model.

This canopy bracket secures the range hood canopy to the cabinet and keeps the canopy aligned for safe, quiet operation. Replaces a worn or damaged support bracket so the canopy sits flush and stable. What it does

• Supports and anchors the range hood canopy to cabinet or mounting plate
• Prevents canopy sagging, misalignment, or gaps that affect appearance and airflow
• Reduces movement, rattling, and vibration from the canopy during use
• Restores correct canopy positioning after impact or hardware failure

• Turn off power to the appliance before servicing to avoid electrical hazards
• Use proper fasteners and alignment to ensure a secure, flush fit
• Replace as needed to ensure safe installation

Fix a hood fan that only works on high speed or requires manual spinning to start. This control board regulates fan speed settings and motor operation.

A lampholder bucket that secures the oven/stove lamp socket and positions the bulb for proper illumination. Replaces damaged or melted lamp housings to restore the light assembly and protect wiring from heat. What it does:

• Holds and aligns the oven/stove lamp socket and bulb in the cavity
• Shields the socket and wiring from oven heat and grease
• Helps ensure stable electrical contact for consistent illumination
• Prevents the bulb from shifting or contacting other components

• Disconnect power to the appliance before servicing to avoid shock
• Replace with the exact OEM bucket to ensure correct fit and heat resistance
• Inspect the lamp socket and wiring; replace any damaged components
• Use basic hand tools; refer to the appliance service manual for disassembly steps

This is a white access cover panel for a range or oven. It conceals internal wiring or components behind the control area or rear panel, providing a clean finished appearance and protection. Replace this cover if it is cracked, discolored, or missing, which can leave internal parts exposed.

A full-width 36 in drawer assembly that restores lower storage and smooth sliding action on compatible GE ovens and ranges. Replaces a worn, damaged or misaligned drawer to help keep cookware and bakeware secure. What it does:

• Provides the drawer box, slide mechanism and mounting points for the lower oven/storage compartment
• Restores smooth open-and-close action when the original drawer sticks, rubs or drags
• Secures loose or sagging drawer fronts and prevents items from shifting during use
• Helps replace cracked, dented or otherwise damaged drawer components that no longer function properly

• Disconnect power to the appliance and allow the oven to cool before attempting service
• Remove the oven drawer and follow OEM diagram for correct alignment of slides and fasteners
• Tighten mounting hardware evenly; verify smooth travel before returning the appliance to service

This is a plastic or metal end cap that attaches to the side of the storage drawer beneath the oven. It provides a finished appearance and helps secure the drawer panel in place. Replace this cap if it is cracked, broken, or missing, which can cause the drawer to look unfinished or fit loosely.

Replace your hood blower wheel if your range hood runs but has weak airflow or makes excessive noise. Restores proper ventilation and quiet operation.

Rubber motor mount cushions and secures the blower motor in your range hood. Replace if cracked, deteriorated, or missing to restore proper motor support.

Blower scroll housing for range hoods. Encloses and directs airflow from the blower motor. Replace if cracked, damaged, or missing to restore proper fit.

If your range hood isn't venting properly or making unusual noises, a worn blower wheel may be the cause. This part restores proper airflow in minutes.

Captures grease and smoke from cooking emissions in your range hood. Replace when clogged or visibly dirty to maintain ventilation. Verify fit with model.

A small replacement screw used to fasten appliance components where the OEM "ws bdrh" screw is specified. Replacing a worn or missing screw restores secure attachment and helps eliminate vibration or loose parts. What it does

• Secures panels, brackets, or internal components in place to maintain proper alignment and function.
• Prevents rattling, vibration noise, and parts from shifting during operation.
• Helps maintain safety by keeping covers and guards fastened.
• Works wherever the OEM "ws bdrh" screw is specified in the service diagram.

• Use the correct screwdriver or driver bit to match the screw head to avoid stripping.
• Tighten to a snug fit; avoid overtightening which can strip threads or crack plastic parts.
• Disconnect power and follow appliance safety procedures before accessing internal parts.

Replace your range hood light bulb to restore bright task lighting over your cooktop. Install when bulb burns out or dims. Verify compatibility with your model.
