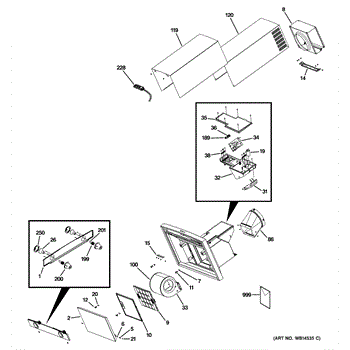

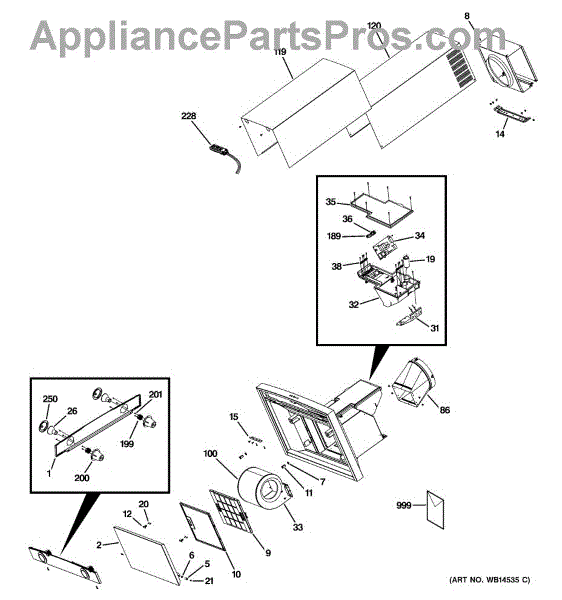

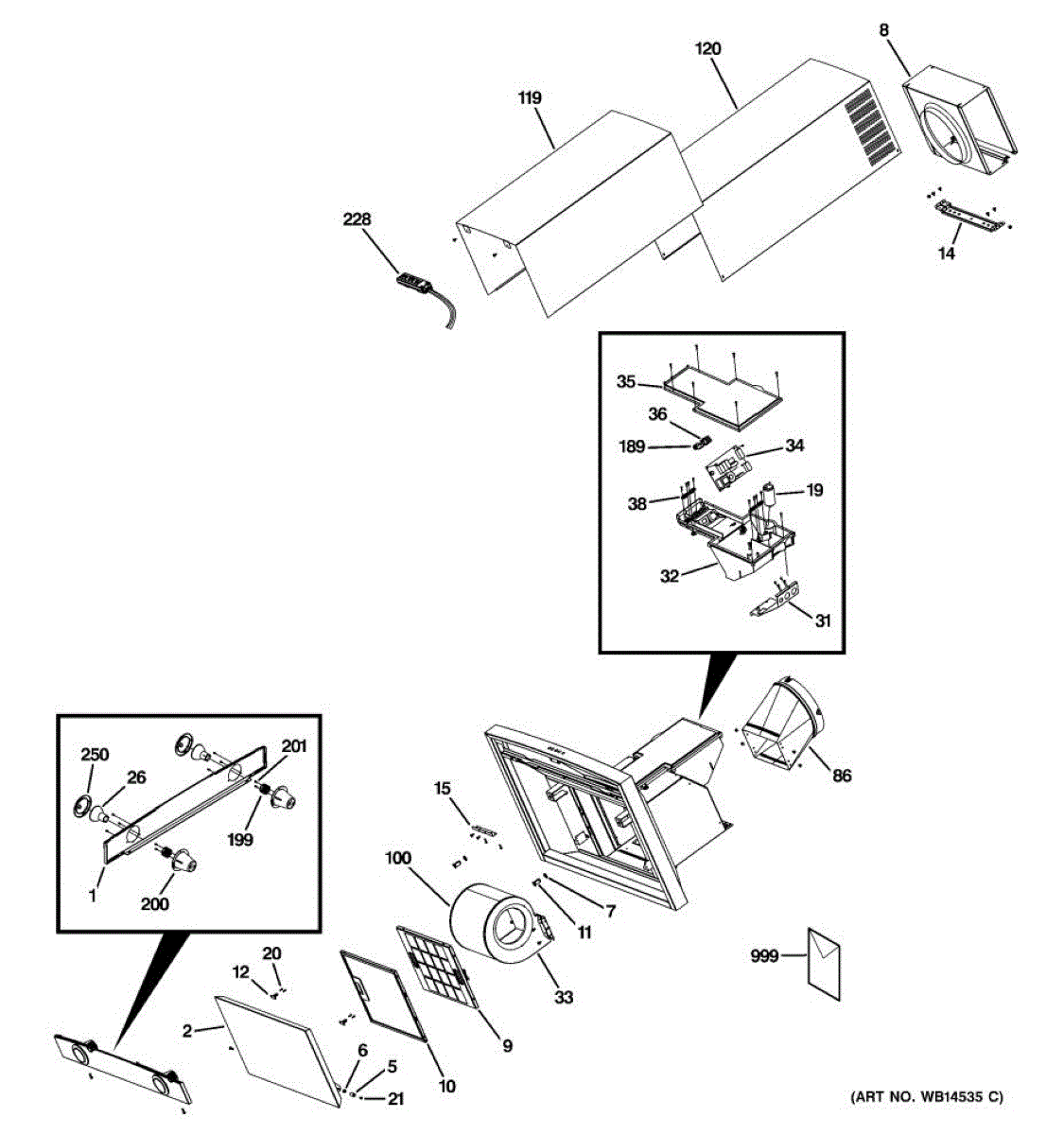

Parts for Ge ZV830SM1SS: 01 - Range Hood Parts

This is a threaded nut designed to secure compatible appliance components, providing a reliable connection that prevents parts from loosening during normal use. Use it to replace a missing, stripped, or damaged nut. What it does

• Secures mating threaded parts to hold panels, brackets, or components in place
• Replaces stripped or corroded fasteners that cause rattling or loose parts
• Restores proper fit where vibration or wear allowed the original nut to loosen
• Helps eliminate movement that can lead to noise or intermittent contact

• Disconnect power and/or gas and follow appliance-specific safety procedures before starting
• Use the correct-size wrench or socket to avoid rounding the nut
• Thread by hand first, then snug with a tool; avoid overtightening which can strip threads or damage components
• Replace both pieces for a secure fit

This charcoal filter removes cooking odors in appliances configured to recirculate air instead of venting outdoors. Replacing a saturated or damaged filter helps restore odor absorption and maintain effective airflow. What it does:

• Adsorbs cooking odors and some smoke in non-vented installations
• Helps maintain airflow and fan performance when replaced as the filter becomes saturated
• Common symptoms of a spent filter: lingering odors, reduced airflow, darkened or crumbling media
• Designed for recirculating setups; typically not used on externally vented installations

• Charcoal filter

• Disconnect power before service and allow the appliance to cool
• Open the front grille or bottom access panel and release any tabs or screws holding the old filter
• Install the new filter in the same orientation and secure it
• Wear gloves; nearby metal edges can be sharp

This duct bucket is a replacement plastic exhaust channel that helps direct dryer airflow from the drum to the blower and vent, restoring proper venting and reducing lint bypass. What it does

• Channels exhaust air through the dryer to maintain consistent airflow.
• Helps route lint toward the lint filter area and prevents bypass leaks.
• Reduces air restrictions that can cause longer dry times or overheating.
• A cracked or warped bucket can cause unusual noises, air leaks, or reduced drying performance.

• Disconnect power (and gas, if applicable) before starting any repair.
• Access typically requires removing the dryer front panel or top; keep fasteners organized.
• Inspect surrounding seals and the lint trap for damage; replace as needed to ensure a proper seal.

This motor start/run capacitor helps the appliance motor start and run smoothly, restoring proper motor performance and reducing strain. Replace a failing capacitor to address motor start problems and intermittent operation. What it does:

• Provides the electrical boost motors need to start and maintain RPM
• Helps prevent motor hesitating, sluggish starts, or failure to start
• Can reduce motor overheating and tripping caused by poor starting torque
• Works with the motor's electrical circuit to stabilize operation during run cycles

• Always disconnect power to the appliance before servicing.
• Discharge the capacitor before touching terminals to avoid shock.
• Match wiring and terminal orientation to the original part; secure connections tightly.

This is a replacement latch stud screw used to secure a door latch or latch stud assembly. It restores proper latch retention so the door closes and stays aligned for normal operation. What it does:

• Secures the latch stud or latch mounting point to the appliance frame
• Keeps the latch firmly in place to prevent a loose or rattling door
• Helps restore proper door alignment and reliable latching
• Common symptom: door won't latch, latch feels loose, or parts shift when closing

• Disconnect power to the appliance before starting any repair
• Use the correct-size screwdriver to avoid stripping the head
• Thread the screw in carefully and tighten until snug; avoid overtightening
• Check latch alignment and operation after installation

This metal blower mounting bracket secures the dryer blower assembly to the cabinet, keeping the blower wheel aligned for proper airflow and quieter operation. It restores stable blower positioning after wear or damage. What it does:

• Holds the blower housing/assembly in place to maintain correct blower wheel alignment
• Reduces wobble, vibration, and rubbing between the blower and housing
• Helps restore proper airflow and drying performance when bracket failure causes misalignment
• Prevents further wear to the blower motor and wheel by stabilizing the assembly

• Disconnect power (and gas supply for gas dryers) before servicing; follow lockout/tagout practices.
• Access requires removing the dryer cabinet/front or rear panel.
• Reuse or replace screws and fasteners as specified by the manufacturer; ensure bracket is seated and blower wheel clearance is correct.
• If you find additional damage to the blower wheel or motor, inspect and replace those parts as needed.

This transition damper is a replacement damper assembly that directs and seals oven/exhaust airflow for proper venting. Restores correct airflow management to help prevent backflow and reduce venting issues. What it does:

• Opens and closes to route exhaust airflow through the cooking appliance vent path
• Seals the vent when closed to limit backdraft and unwanted air transfer
• Helps maintain proper venting for consistent oven performance
• Commonly replaces dampers that are stuck, warped, or fail to move smoothly

• Disconnect power (and gas, if applicable) before installing to avoid injury
• Handle the damper and actuator components gently; avoid bending the damper flap
• Verify orientation and fit against the vent housing before final fastening

This is a replacement mounting screw used to fasten appliance panels and components, restoring secure fit and reducing rattles or loose parts. It's a direct-fit threaded fastener commonly used in household ranges and ovens. What it does

• Secures panels, brackets, or small components to the appliance frame
• Prevents parts from shifting, vibrating, or producing noise during operation
• Restores proper alignment when a worn or missing screw causes loose-fitting parts
• Works where a short machine or sheet-metal screw is required for repair

• Use the matching screw hole and thread; do not force or cross-thread
• Hand-start threads, then tighten with the appropriate screwdriver until snug
• If replacing a stripped thread, assess need for a nut, clip, or thread repair before tightening
• Disconnect power and follow appliance safety procedures when working near electrical components
