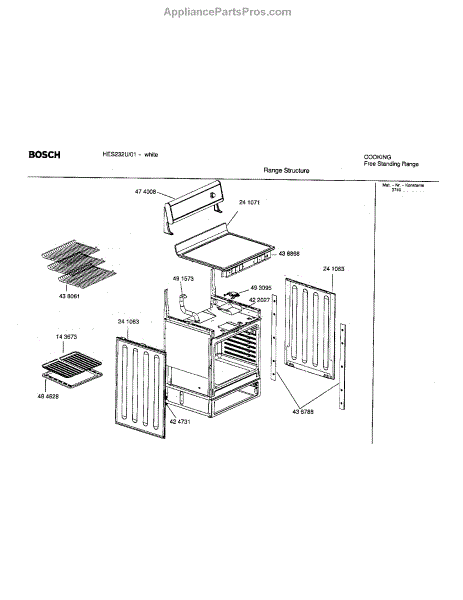

Parts for Bosch HES232U/01: Range Structure Parts

This grille for pan is a replacement trim piece that restores proper airflow and appearance around the appliance pan. It helps keep the pan area protected and looking finished after repair. What it does:

• Covers and ventilates the pan opening to help direct airflow and prevent debris entry
• Replaces a cracked, warped, or missing grille to restore fit and finish
• Helps eliminate rattling or rubbing caused by a damaged trim piece
• Matches OEM fit so it installs cleanly with the original mounting points

• Install requires removal of the surrounding trim or access panel; follow your appliance manual
• Handle carefully to avoid scratching the finish; use non-marring tools as needed
• Disconnect power to the appliance before working in the service area
• Replace damaged clips or screws with OEM fasteners for secure fit

This replacement mounting bracket secures internal components and panels to restore proper alignment and stability. Use it when a broken or missing bracket causes loose parts, noise, or improper panel fit on compatible units. What it does

• Holds and supports adjacent panels or assemblies to maintain correct alignment.
• Prevents movement that can cause rattling, vibration noise, or scraping.
• Restores stable mounting for parts that may sag or sit unevenly.
• Helps ensure smooth operation by keeping components in their intended position.

• One mounting bracket

• Disconnect power before starting any repair to avoid electrical hazards.
• Basic hand tools are typically required; handle brackets carefully to avoid bending.
• Do not overtighten fasteners—secure snugly to avoid stressing the bracket.
