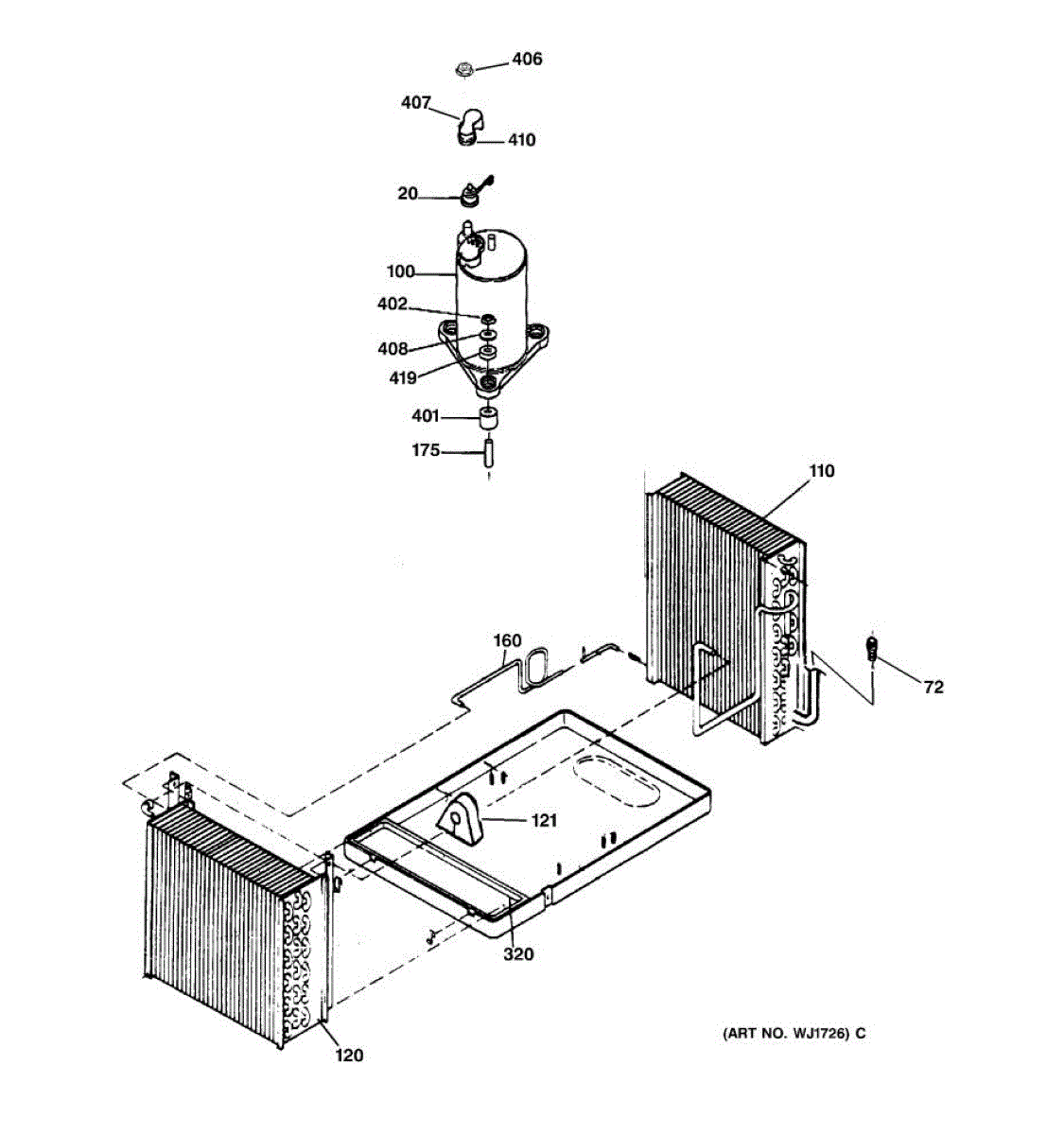

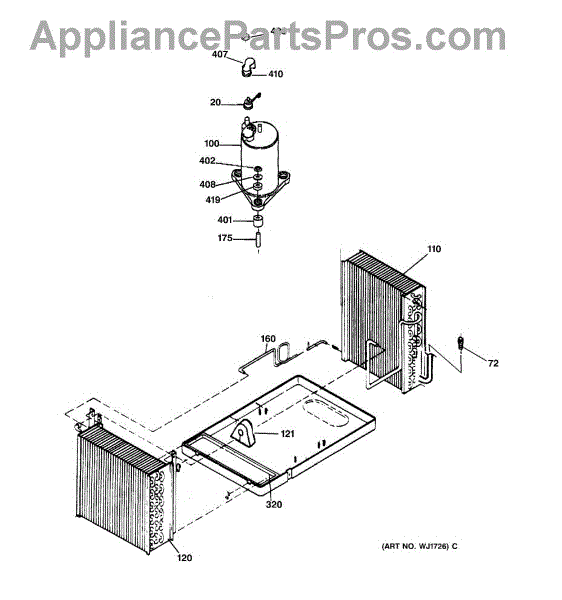

Parts for Ge AVX10ACF1: 03 - Refrigerant Assembly Parts

A 1/4-28 terminal nut used to secure wires at an appliance terminal block, restoring a firm electrical connection for safer, more reliable operation and reducing the chance of arcing or intermittent power. What it does:

• Secures a 1/4-28 terminal stud to keep wire connections tight
• Helps prevent loose-wire symptoms like sparking, intermittent operation, or failure to power
• Used with terminal blocks/terminal covers on appliances to maintain a stable electrical connection
• Simple replacement for visibly worn, corroded, or missing nuts at the terminal

• Disconnect power to the appliance before inspecting or replacing electrical hardware
• Use the correct sized wrench; tighten snugly but avoid overtightening to prevent stud or thread damage
• Inspect the terminal stud and wire terminal for corrosion or damage and replace as needed

This small flat washer fits over a .344" shaft and provides spacing and load distribution to protect mating parts and fasteners. It's a simple replacement to restore correct clearances and reduce wear. What it does:

• Provides a corrosion-resistant bearing surface and even load distribution for bolts or shafts
• Maintains proper spacing to prevent rubbing or misalignment of moving parts
• Helps reduce vibration and noise caused by loose or worn hardware
• Prevents premature wear of mating components by spreading clamping force

• Disconnect power and water and follow all safety precautions before servicing the appliance
• Confirm correct orientation, size, and seating before tightening fasteners
• Do not over-tighten; snug to manufacturer torque specifications if available
• Inspect surrounding components (shaft, fastener, mating surfaces) and replace any damaged hardware
