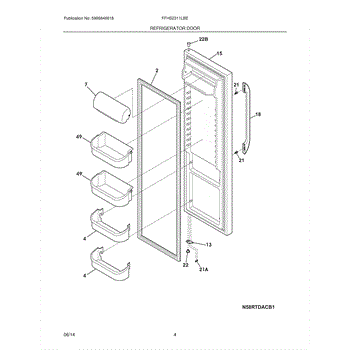

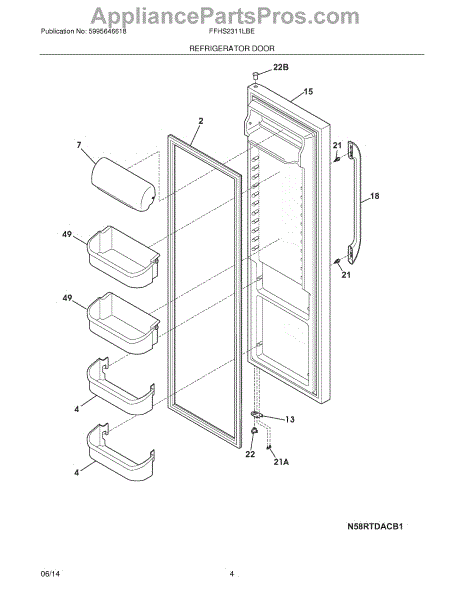

Parts for Frigidaire FFHS2311LBE: 05 - Refrigerator Door Parts

This single-pack Frigidaire PureSource 3 WF3CB Water Filter is an OEM replacement part for Frigidaire refrigerators. It improves the quality and taste of your drinking water. It removes impurities such as lead, cysts, and mercury, as well as reduces chlorine taste and odor. The filter is NSF and WQA certified and is designed to fit specific side-by-side models after 2009 where the filter is located in the back, right top.

Specs:

• Pressure range: 30 - 100 PSIG
• Color: White
• Dimensions: Approximately 2-1/2 inches in diameter by 9-1/2 inches deep.

To ensure optimal performance, filters should be changed every 6 months or 200 gallons, depending on usage.

This door gasket seals the perimeter of the appliance door to keep cold air in and humid air out. Replace a torn, warped, or leaky gasket to restore stable temperatures, reduce frost/condensation, and help the unit run efficiently. What it does:

• Creates an airtight seal between the door and cabinet
• Helps maintain proper temperature and humidity inside the compartment
• Reduces frost buildup and condensation around the door opening
• Common failure signs: tears, gaps, warping, hard or cracked rubber, door not closing flush, warm spots

• 1 door gasket

• Unplug the appliance and clear items from the affected door.
• Condition the new gasket to remove shipping kinks by laying it flat and warming it (soak in warm water or use gentle, low heat).
• Remove the old gasket; on some models you may need to loosen liner-retainer screws to release it.
• Fit the new gasket into the channel, working from the corners; ensure it seats evenly all around and verify a uniform seal.

The Door Bin is an OEM part for Frigidaire refrigerators. This part attaches to the inside of the refrigerator door, offering additional storage space for bottles, jars, and other condiments. Designed for ease of installation and removal, the door bin enhances the refrigerator's storage capacity and organization, allowing for quick access to frequently used items.

Over time, door bins can become cracked, warped, or broken due to overloading, accidental impacts, or general aging. This can compromise their ability to securely hold items, leading to potential spills or damage to stored goods.

Symptoms of a bad Door Bin include:

• Visible cracks or breaks in the bin
• The bin sagging or not attaching securely to the refrigerator door
• Difficulty in sliding the bin in or out, or it not fitting properly
• Reduced effectiveness in holding items securely

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Dairy Door is an OEM replacement part for Frigidaire side-by-side refrigerators. As the access point to the dedicated dairy compartment, the door is designed with precision seals to maintain optimal humidity levels inside. This helps keep dairy and other perishable items fresh longer.

Causes of a bad dairy door can include worn or damaged seals, dents or impacts warping the door frame, or issues with the electronic components that control humidity levels.

Symptoms of a bad dairy door include:

• Excessive frost or ice buildup inside the dairy compartment
• Difficulty opening and closing the door smoothly
• Warm or dried-out dairy products despite a cold refrigerator interior
• Moisture leaks around the door seals

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore side-by-side models.

This refrigerator door stop limits how far the door swings open. Replacing a worn or broken stop restores the correct opening range, protecting the hinge and nearby cabinets while keeping door movement smooth and controlled.

• Mounts at the hinge to limit door swing and prevent overextension
• Protects the door, hinge, and adjacent cabinetry from impact damage
• Helps maintain proper door alignment and smooth operation
• Typical symptoms: door opens too far, bangs into surroundings, or the stop is visibly cracked/missing

• Disconnect power and clear items from the door before starting
• Support the door; remove hinge cover/fasteners and the damaged stop
• Install the new stop in the same orientation; tighten screws securely
• Reassemble and test the door swing to ensure it stops smoothly

This replacement screw secures appliance components to their mounting points so panels, brackets, and trim stay tight and aligned. Replace missing or stripped hardware to restore a solid, rattle-free fit and proper assembly integrity.

• Secures panels, brackets, and trim to prevent movement and maintain alignment
• Replaces missing, damaged, or stripped hardware that can compromise assembly
• Helps reduce rattling or vibration from loose components
• Restores proper fit after service or access panel removal

• Unplug the appliance before servicing; turn off water supply if working near dispenser/ice areas
• Compare the new screw to the original to ensure thread, head style, and length
• Start threading by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Retain and reuse any original washers, spacers, or clips as required

This #10-32 x 3/4-inch machine screw secures appliance components such as panels, brackets, and handles. Using the correct length and thread helps restore a snug, rattle-free hold wherever this screw is specified by the manufacturer.

• Fastens components with a #10-32 machine thread and 3/4-inch length
• Helps keep panels, trim, brackets, or handles secured and aligned
• Replaces missing, stripped, or corroded hardware
• Common signs include loose or wobbly parts, rattling, missing screws, or damaged screw heads/threads

• Disconnect power before servicing; if working near a water connection, shut off the water supply
• Use the correct driver/bit and start threads by hand to avoid cross-threading
• Tighten snugly; do not overtighten to prevent stripping plastic or threads
• Reuse any model-specific washers or spacers if present

This hinge bearing supports and guides the refrigerator door as it pivots on the hinge, reducing friction and wear. Replacing a worn bearing restores smooth, quiet door movement and proper alignment for a reliable seal.

• Provides a low-friction pivot surface between the hinge pin and the door
• Helps support door weight and maintain alignment for proper gasket contact
• Common symptoms of a worn bearing: squeaking or popping, door sagging or binding, and doors that don't close smoothly or seal consistently
• Reduces hinge wear to help extend hinge life

• Disconnect power and remove items from the door for safety and easier handling
• Support the door, remove hinge cover and fasteners, and lift the door off the hinge
• Remove the worn bearing and install the new bearing in the same orientation on the hinge pin or seat
• Reinstall and align the door; tighten hardware and verify smooth movement and proper gasket seal

The Upper Hinge Bearing is an OEM replacement part for Frigidaire refrigerators. It facilitates the smooth and quiet opening and closing. By reducing friction at the hinge point, it ensures the door operates seamlessly and is less prone to wear over time.

Causes of a faulty upper hinge bearing include repetitive stress and wear from continuous door opening and closing over time. Exposure to moisture may accelerate bearing degradation.

Symptoms of a bad upper hinge bearing include:

• Squeaking or grinding noises emitted from the hinge area
• Difficult door operation requiring increased lifting force
• Potential misalignment compromising door seal integrity

This Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore models.

The Hinge Bearing is an OEM part for Frigidaire refrigerators. This bearing is designed to support the refrigerator door, ensuring it opens and closes smoothly. It helps maintain proper alignment and balance of the door, preventing it from sagging or becoming misaligned.

You should replace the hinge bearing if it becomes worn out, damaged, or broken. Common causes of a bad hinge bearing include regular wear and tear, frequent opening and closing of the door, and accidental impacts.

Symptoms of a bad hinge bearing include:

• Difficulty in opening or closing the refrigerator door
• The door sagging or not aligning properly
• Unusual noises, such as squeaking or grinding, when the door is moved
• The door not staying securely in place

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Gallon Door Bin is an OEM replacement part for Frigidaire refrigerators. It is a spacious storage compartment designed to be mounted on the refrigerator door, providing convenient access to frequently used items. This bin measures approximately 13" wide and 7-1/4" deep.

Causes of a faulty gallon door bin can include physical damage, such as cracks or breaks, or issues with the mounting mechanism that secures it to the door.

Symptoms of a need to replace the gallon door bin:

• Cracks, chips, or other visible damage to the bin
• Difficulty in opening or closing the refrigerator door due to the bin's positioning
• Loose or unstable mounting, causing the bin to detach or fall off

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models.
