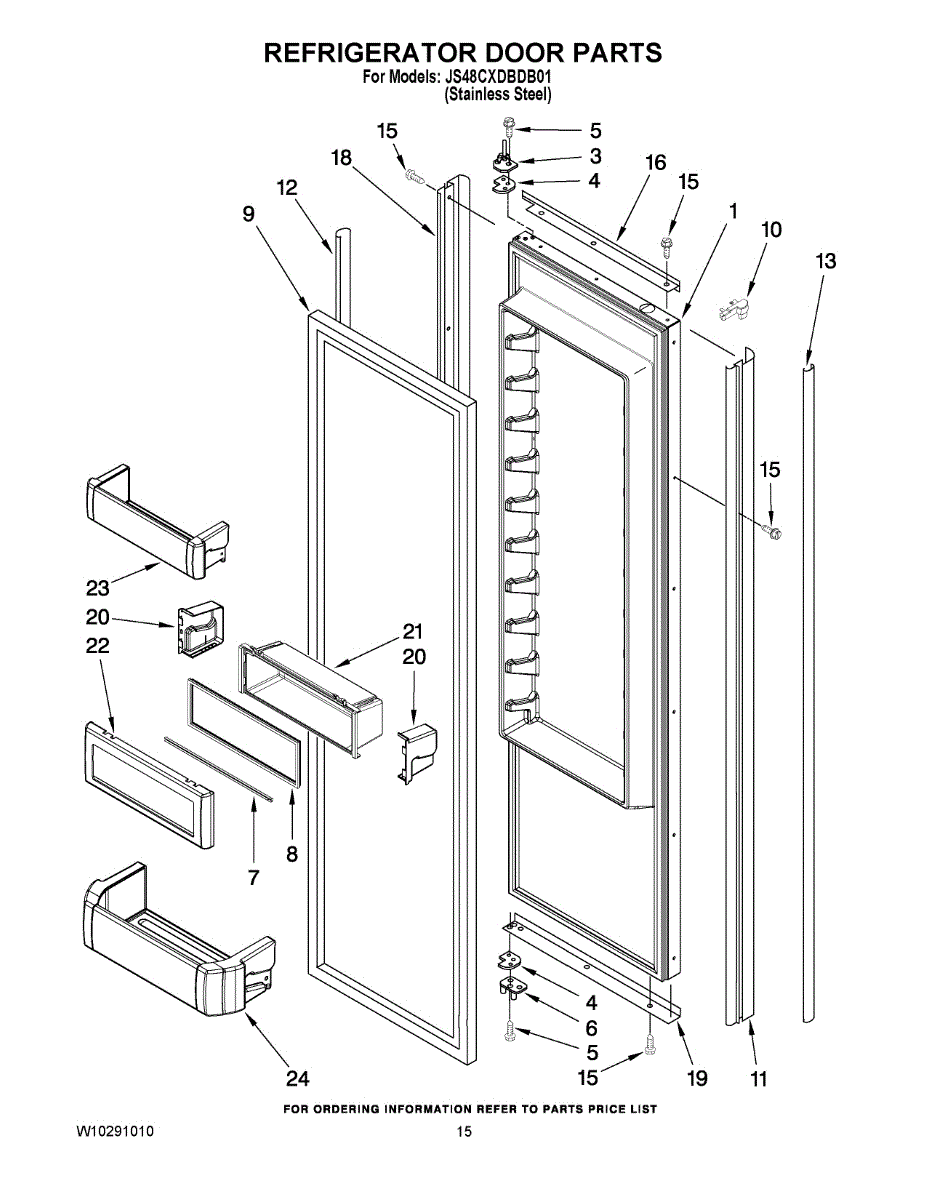

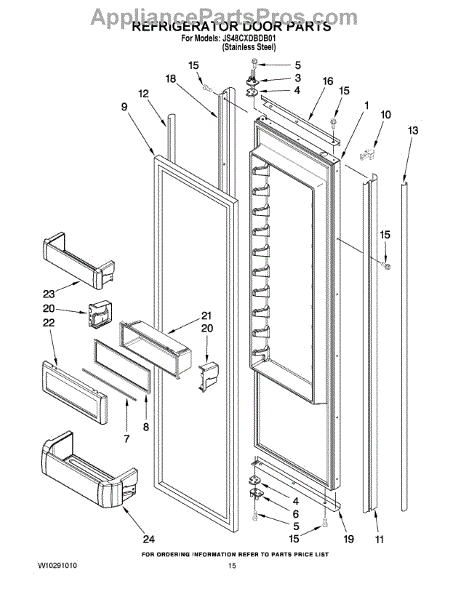

Parts for Maytag JS48CXDBDB01: 10 - Refrigerator Door Parts

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

This door hinge restores smooth, aligned door operation. Replacing a worn hinge ensures the door opens and closes properly, supports the door's weight, and helps the gasket seal evenly to reduce air or heat loss.

• Provides the pivot point that lets the door open and close smoothly
• Maintains door alignment so the seal sits flush against the cabinet
• Helps prevent sagging, rubbing, or binding at the door edge
• Common symptoms: door drops or won't close flush, squeaks/pops, visible play or hinge damage

• Disconnect power; turn off water supply if applicable
• Support the door before removing hinge fasteners to prevent strain or damage
• Transfer any spacers/bushings from the old hinge to the new hinge if present
• Reinstall and verify door alignment and seal contact; adjust as needed

The Screw is an OEM part for Whirlpool refrigerators. This screw plays a small but important structural role, securely fastening the refrigerator door hinges in place.

Causes of a bad screw include normal wear and tear, repeated door opening/closing stress, or accidental damage during cleaning or servicing of the hinge area.

Symptoms of a bad hinge screw include:

• Loose or sagging door that does not close or seal properly
• Increased vibration or noise from the hinge area
• Difficulty opening/closing the door smoothly

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Dairy Bin is an OEM replacement part for Whirlpool's built-in and integrated refrigerator side-by-side door shelves. It provides a designated space optimized for storing dairy products.

Over time, dairy bins can become worn out or damaged due to regular use. Causes of a bad dairy bin include cracking or breaking from accidental drops, warping from heavy loads, or damage from frequent opening and closing of the refrigerator door.

Symptoms of a faulty dairy bin include:

• Cracks or stress fractures in the plastic that compromise the seal
• Missing or broken divider pieces within the bin's grid design
• A door that no longer stays securely attached due to failure of mounting tabs

This OEM Whirlpool part is also compatible with built-in models produced by KitchenAid, Jenn-Air, and some Kenmore side-by-side refrigerators.

The Dairy Bin is an OEM replacement part for Whirlpool's built-in and integrated refrigerator side-by-side door shelves. It provides a designated space optimized for storing dairy products.

Over time, dairy bins can become worn out or damaged due to regular use. Causes of a bad dairy bin include cracking or breaking from accidental drops, warping from heavy loads, or damage from frequent opening and closing of the refrigerator door.

Symptoms of a faulty dairy bin include:

• Cracks or stress fractures in the plastic that compromise the seal
• Missing or broken divider pieces within the bin's grid design
• A door that no longer stays securely attached due to failure of mounting tabs

This OEM Whirlpool part is also compatible with built-in models produced by KitchenAid, Jenn-Air, and some Kenmore side-by-side refrigerators.

This refrigerator door gasket forms an airtight seal between the door and cabinet to keep cold air in and humid air out. Replacing a worn gasket helps stabilize temperatures, reduce frost and condensation, and improve overall cooling performance.

• Seals the door perimeter to prevent air leaks
• Helps maintain set temperatures and humidity levels
• Reduces frost buildup and condensation around the door
• Common symptoms include rips/tears, warping, gaps, poor door seal, or visible moisture/frost at the door

• Disconnect power; let the interior warm slightly to soften the old gasket (or warm the new gasket in hot water)
• Pull the old gasket from the retainer/groove and clean mating surfaces
• Press the new gasket fully into the retainer, seating the corners first and working evenly around the door
• Use warm water or low heat to relax wrinkles; adjust door/hinges if needed

This factory replacement screw secures appliance components. It replaces missing or worn hardware to restore a tight, aligned fit for panels, brackets, and assemblies—reducing rattles and keeping parts firmly in place during everyday use.

• Fastens covers, brackets, trim, or internal assemblies to the cabinet/frame
• Replaces stripped, rusted, or missing hardware
• Helps correct loose or misaligned panels or handles
• Can reduce vibration noise caused by unsecured parts

• Disconnect power; shut off water or gas supply if applicable
• Use the correct driver/bit; hand-start threads to avoid cross-threading
• Tighten snugly without overtightening to prevent damage
• Replace any companion clips or grommets if worn

This left-hand endcap-trim is the side bracket that anchors the trim/rail for a refrigerator bin or shelf. Replacing a cracked or missing endcap restores support and alignment so the drawer, cover, or bin sits level and secure.

• Supports and secures the left side of the trim/rail for a bin, shelf, or cover
• Helps keep the drawer/bin aligned and prevents wobble or sagging
• Replaces a damaged or missing LH endcap that allows the rail to loosen or detach

• Disconnect power and remove the affected bin/shelf before servicing
• Release tabs or remove screws to detach the rail/trim; transfer any hardware from the old endcap
• Orient left-hand as viewed from the front of the appliance; snap or fasten into place
• Reinstall components and check alignment and movement

Right-hand door bin end cap that replaces a cracked or missing trim piece and secures the refrigerator door shelf. Restores a flush fit and helps keep stored items from shifting. What it does

• Snaps onto the right end of a refrigerator door bin to hold the bin trim in place.
• Prevents the bin from coming loose or tilting when you open and close the door.
• Replaces worn or damaged end trim that can leave gaps or expose sharp edges.
• Commonly used when the door shelf feels loose, the bin slides out, or the end cap is cracked.

• Remove the door bin before installing to access the end cap; handle the bin carefully to avoid spills.
• Align the end cap with the bin trim and snap it into place until it seats securely.

The Dairy Bin is an OEM replacement part for Whirlpool's built-in and integrated refrigerator side-by-side door shelves. It provides a designated space optimized for storing dairy products.

Over time, dairy bins can become worn out or damaged due to regular use. Causes of a bad dairy bin include cracking or breaking from accidental drops, warping from heavy loads, or damage from frequent opening and closing of the refrigerator door.

Symptoms of a faulty dairy bin include:

• Cracks or stress fractures in the plastic that compromise the seal
• Missing or broken divider pieces within the bin's grid design
• A door that no longer stays securely attached due to failure of mounting tabs

This OEM Whirlpool part is also compatible with built-in models produced by KitchenAid, Jenn-Air, and some Kenmore side-by-side refrigerators.

The Dairy Bin is an OEM replacement part for Whirlpool's built-in and integrated refrigerator side-by-side door shelves. It provides a designated space optimized for storing dairy products.

Over time, dairy bins can become worn out or damaged due to regular use. Causes of a bad dairy bin include cracking or breaking from accidental drops, warping from heavy loads, or damage from frequent opening and closing of the refrigerator door.

Symptoms of a faulty dairy bin include:

• Cracks or stress fractures in the plastic that compromise the seal
• Missing or broken divider pieces within the bin's grid design
• A door that no longer stays securely attached due to failure of mounting tabs

This OEM Whirlpool part is also compatible with built-in models produced by KitchenAid, Jenn-Air, and some Kenmore side-by-side refrigerators.

This bin control lever replaces the small latch that secures a refrigerator door bin so the bin stays in place and releases correctly. Restores proper bin retention for safe, organized storage. What it does:

• Secures the door bin to prevent it from falling or shifting when the door opens
• Engages/disengages the bin latch so the bin can be removed or reinstalled smoothly
• Helps eliminate rattling or loose-feeling door bins
• Common symptom: bin drops, won't lock in place, or feels loose when nudged

• Remove the door bin and inspect mounting area before installing the lever
• Snap or screw the lever into the existing mounting point per OEM alignment—do not force
• Handle glass or plastic bins carefully to avoid damage during reassembly
• Disconnect power only if required for your model; for safety guidance

Door shelf bin control lever that secures and releases the refrigerator door shelf bin so stored items stay in place; replaces a broken or worn lever to restore proper bin latching and alignment. What it does:

• Locks the door shelf bin into the door track so the bin stays seated during normal use.
• Allows controlled removal and reinstallation of the door bin when lifted or tilted.
• Common replacement when the bin won't latch, slides out, or the lever is cracked or damaged.
• Matches OEM fit to restore original bin operation and alignment.

• Remove all items from the door bin before servicing; set the bin on a soft surface to avoid damage.
• Inspect bin track and mounting points for damage before installing the new lever.
• Most installations require only basic hand tools and snapping the lever into the existing mounting point.
• Always unplug the refrigerator or disconnect power when working near electrical components or lights.
