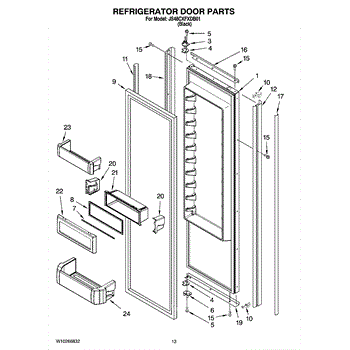

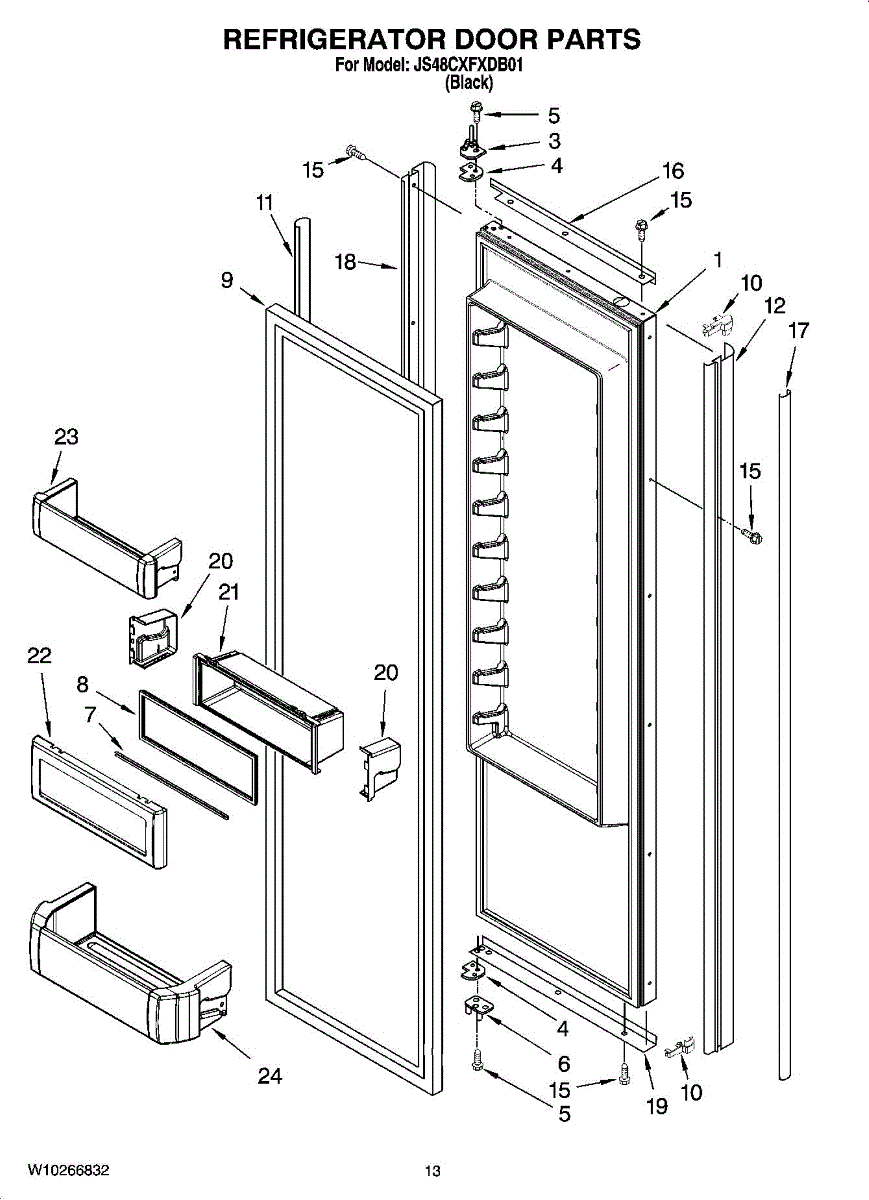

Parts for Maytag JS48CXFXDB01: 09 - Refrigerator Door Parts

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

This door hinge restores smooth, aligned door operation. Replacing a worn hinge ensures the door opens and closes properly, supports the door's weight, and helps the gasket seal evenly to reduce air or heat loss.

• Provides the pivot point that lets the door open and close smoothly
• Maintains door alignment so the seal sits flush against the cabinet
• Helps prevent sagging, rubbing, or binding at the door edge
• Common symptoms: door drops or won't close flush, squeaks/pops, visible play or hinge damage

• Disconnect power; turn off water supply if applicable
• Support the door before removing hinge fasteners to prevent strain or damage
• Transfer any spacers/bushings from the old hinge to the new hinge if present
• Reinstall and verify door alignment and seal contact; adjust as needed

The Screw is an OEM part for Whirlpool refrigerators. This screw plays a small but important structural role, securely fastening the refrigerator door hinges in place.

Causes of a bad screw include normal wear and tear, repeated door opening/closing stress, or accidental damage during cleaning or servicing of the hinge area.

Symptoms of a bad hinge screw include:

• Loose or sagging door that does not close or seal properly
• Increased vibration or noise from the hinge area
• Difficulty opening/closing the door smoothly

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Dairy Bin is an OEM replacement part for Whirlpool's built-in and integrated refrigerator side-by-side door shelves. It provides a designated space optimized for storing dairy products.

Over time, dairy bins can become worn out or damaged due to regular use. Causes of a bad dairy bin include cracking or breaking from accidental drops, warping from heavy loads, or damage from frequent opening and closing of the refrigerator door.

Symptoms of a faulty dairy bin include:

• Cracks or stress fractures in the plastic that compromise the seal
• Missing or broken divider pieces within the bin's grid design
• A door that no longer stays securely attached due to failure of mounting tabs

This OEM Whirlpool part is also compatible with built-in models produced by KitchenAid, Jenn-Air, and some Kenmore side-by-side refrigerators.

The Dairy Bin is an OEM replacement part for Whirlpool's built-in and integrated refrigerator side-by-side door shelves. It provides a designated space optimized for storing dairy products.

Over time, dairy bins can become worn out or damaged due to regular use. Causes of a bad dairy bin include cracking or breaking from accidental drops, warping from heavy loads, or damage from frequent opening and closing of the refrigerator door.

Symptoms of a faulty dairy bin include:

• Cracks or stress fractures in the plastic that compromise the seal
• Missing or broken divider pieces within the bin's grid design
• A door that no longer stays securely attached due to failure of mounting tabs

This OEM Whirlpool part is also compatible with built-in models produced by KitchenAid, Jenn-Air, and some Kenmore side-by-side refrigerators.

This refrigerator door gasket forms an airtight seal between the door and cabinet to keep cold air in and humid air out. Replacing a worn gasket helps stabilize temperatures, reduce frost and condensation, and improve overall cooling performance.

• Seals the door perimeter to prevent air leaks
• Helps maintain set temperatures and humidity levels
• Reduces frost buildup and condensation around the door
• Common symptoms include rips/tears, warping, gaps, poor door seal, or visible moisture/frost at the door

• Disconnect power; let the interior warm slightly to soften the old gasket (or warm the new gasket in hot water)
• Pull the old gasket from the retainer/groove and clean mating surfaces
• Press the new gasket fully into the retainer, seating the corners first and working evenly around the door
• Use warm water or low heat to relax wrinkles; adjust door/hinges if needed

The Screw is an OEM part compatible with Whirlpool dryers. This screw connects the back panel to the side panel, ensuring the dryer cabinet is securely assembled. It plays an integral role in maintaining the structural integrity of the dryer housing.

Symptoms of a bad screw can include loosening, corrosion, or breakage over time and use. This can compromise the bond between panels and weaken the overall dryer frame.

Causes of a bad screw include:

• Repeated expansion and contraction from heat cycles
• Vibrations loosening the connection point
• Stress or cracks developing at the screw head or threads

These issues can lead to:

• Gaps appearing between panels
• Components like controls detaching from the housing
• Cabinet unable to withstand pressure changes

This OEM Whirlpool replacement screw is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This left-hand endcap-trim is the side bracket that anchors the trim/rail for a refrigerator bin or shelf. Replacing a cracked or missing endcap restores support and alignment so the drawer, cover, or bin sits level and secure.

• Supports and secures the left side of the trim/rail for a bin, shelf, or cover
• Helps keep the drawer/bin aligned and prevents wobble or sagging
• Replaces a damaged or missing LH endcap that allows the rail to loosen or detach

• Disconnect power and remove the affected bin/shelf before servicing
• Release tabs or remove screws to detach the rail/trim; transfer any hardware from the old endcap
• Orient left-hand as viewed from the front of the appliance; snap or fasten into place
• Reinstall components and check alignment and movement

Right-hand door bin end cap that replaces a cracked or missing trim piece and secures the refrigerator door shelf. Restores a flush fit and helps keep stored items from shifting. What it does

• Snaps onto the right end of a refrigerator door bin to hold the bin trim in place.
• Prevents the bin from coming loose or tilting when you open and close the door.
• Replaces worn or damaged end trim that can leave gaps or expose sharp edges.
• Commonly used when the door shelf feels loose, the bin slides out, or the end cap is cracked.

• Remove the door bin before installing to access the end cap; handle the bin carefully to avoid spills.
• Align the end cap with the bin trim and snap it into place until it seats securely.

The Dairy Bin is an OEM replacement part for Whirlpool's built-in and integrated refrigerator side-by-side door shelves. It provides a designated space optimized for storing dairy products.

Over time, dairy bins can become worn out or damaged due to regular use. Causes of a bad dairy bin include cracking or breaking from accidental drops, warping from heavy loads, or damage from frequent opening and closing of the refrigerator door.

Symptoms of a faulty dairy bin include:

• Cracks or stress fractures in the plastic that compromise the seal
• Missing or broken divider pieces within the bin's grid design
• A door that no longer stays securely attached due to failure of mounting tabs

This OEM Whirlpool part is also compatible with built-in models produced by KitchenAid, Jenn-Air, and some Kenmore side-by-side refrigerators.

The Dairy Bin is an OEM replacement part for Whirlpool's built-in and integrated refrigerator side-by-side door shelves. It provides a designated space optimized for storing dairy products.

Over time, dairy bins can become worn out or damaged due to regular use. Causes of a bad dairy bin include cracking or breaking from accidental drops, warping from heavy loads, or damage from frequent opening and closing of the refrigerator door.

Symptoms of a faulty dairy bin include:

• Cracks or stress fractures in the plastic that compromise the seal
• Missing or broken divider pieces within the bin's grid design
• A door that no longer stays securely attached due to failure of mounting tabs

This OEM Whirlpool part is also compatible with built-in models produced by KitchenAid, Jenn-Air, and some Kenmore side-by-side refrigerators.

This bin control lever replaces the small latch that secures a refrigerator door bin so the bin stays in place and releases correctly. Restores proper bin retention for safe, organized storage. What it does:

• Secures the door bin to prevent it from falling or shifting when the door opens
• Engages/disengages the bin latch so the bin can be removed or reinstalled smoothly
• Helps eliminate rattling or loose-feeling door bins
• Common symptom: bin drops, won't lock in place, or feels loose when nudged

• Remove the door bin and inspect mounting area before installing the lever
• Snap or screw the lever into the existing mounting point per OEM alignment—do not force
• Handle glass or plastic bins carefully to avoid damage during reassembly
• Disconnect power only if required for your model; for safety guidance

Door shelf bin control lever that secures and releases the refrigerator door shelf bin so stored items stay in place; replaces a broken or worn lever to restore proper bin latching and alignment. What it does:

• Locks the door shelf bin into the door track so the bin stays seated during normal use.
• Allows controlled removal and reinstallation of the door bin when lifted or tilted.
• Common replacement when the bin won't latch, slides out, or the lever is cracked or damaged.
• Matches OEM fit to restore original bin operation and alignment.

• Remove all items from the door bin before servicing; set the bin on a soft surface to avoid damage.
• Inspect bin track and mounting points for damage before installing the new lever.
• Most installations require only basic hand tools and snapping the lever into the existing mounting point.
• Always unplug the refrigerator or disconnect power when working near electrical components or lights.
