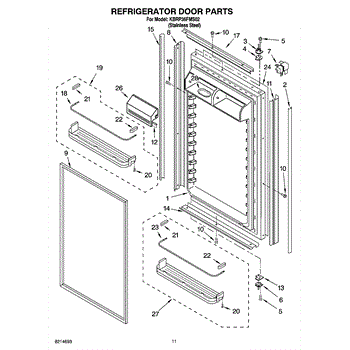

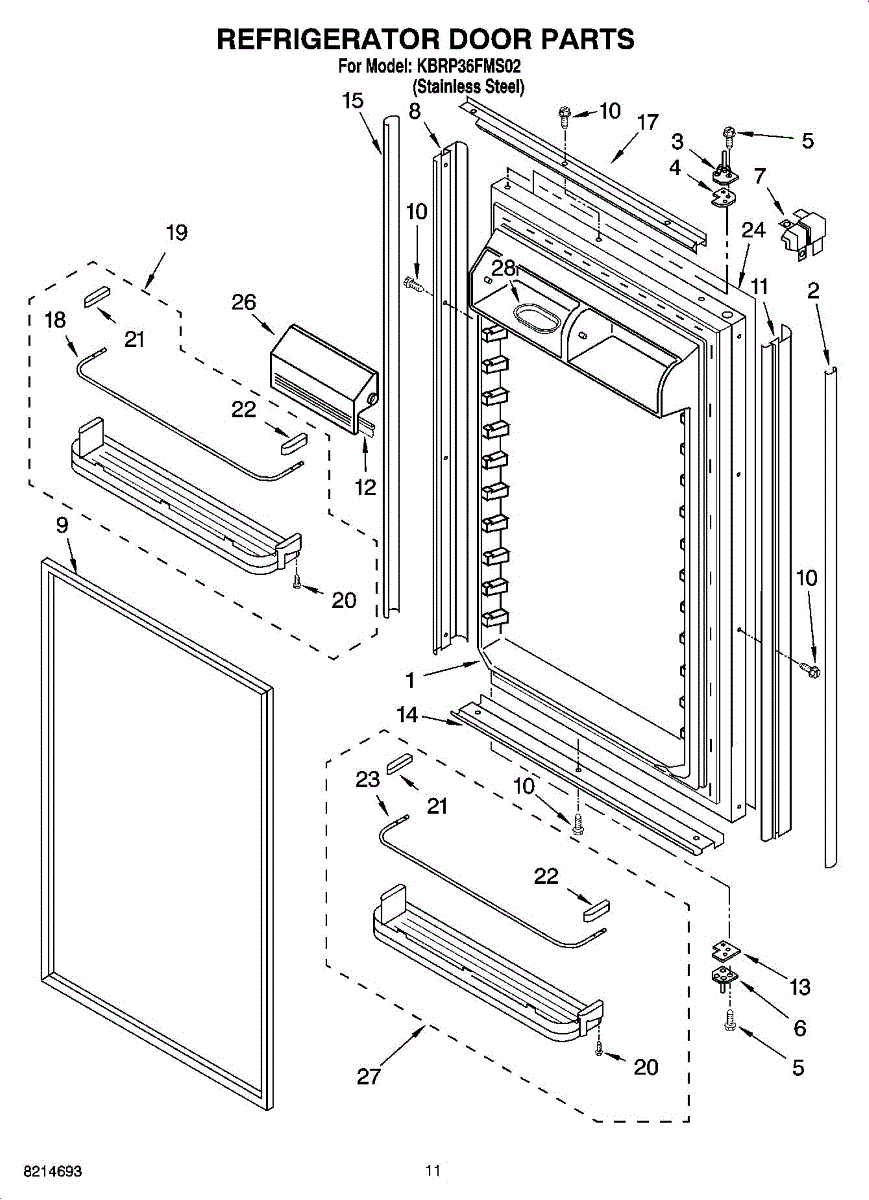

Parts for Kitchenaid KBRP36FMS02: 07 - Refrigerator Door Parts

The Whirlpool EveryDrop Refrigerator Water Filter 5 is an OEM replacement filter for Whirlpool refrigerators. This filter is used in Whirlpool bottom freezer and side-by-side refrigerators which accept Filter 5.

• Single Port Filter
• Simple turn installation requires no special tools
• For best performance, replace every six months
• Micron Rating: 0.5
• Filter Media: Coconut Carbon Block
• Flow Rate: 0.5 GPM
• Capacity: 300 gallons
• Temp Range: 33 - 100 °F
• Pressure Range: 30 - 120 psi
• Approximate dimensions: 2.30 x 3.00 x 11.60 Inches
• Meets NSF Standard: 42
• Approved for WQA Gold Seal
• Reduces 16 contaminants, including lead, mercury, asbestos, etc

The Screw is an OEM part for Whirlpool refrigerators. This screw plays a small but important structural role, securely fastening the refrigerator door hinges in place.

Causes of a bad screw include normal wear and tear, repeated door opening/closing stress, or accidental damage during cleaning or servicing of the hinge area.

Symptoms of a bad hinge screw include:

• Loose or sagging door that does not close or seal properly
• Increased vibration or noise from the hinge area
• Difficulty opening/closing the door smoothly

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This refrigerator door gasket for foam-in-place doors creates a tight seal around the door opening to keep cold air in and moisture out, helping maintain stable temperatures and reduce frost and energy waste.

• Seals the door perimeter to prevent warm air leaks
• Helps maintain correct cooling performance and humidity levels
• Reduces frost and condensation caused by poor sealing
• Common signs it's needed: tears, warping, gaps, persistent frost/condensation, door not sealing or popping open

• Disconnect power before servicing
• Warm and relax the gasket in hot water or with a hair dryer on low to ease installation
• Remove the old gasket from the retainer/channel; install the new gasket starting at the corners and press fully into place
• Check the seal all around and adjust the door/hinges as needed; allow time for the gasket to set

The Screw is an OEM part compatible with Whirlpool dryers. This screw connects the back panel to the side panel, ensuring the dryer cabinet is securely assembled. It plays an integral role in maintaining the structural integrity of the dryer housing.

Symptoms of a bad screw can include loosening, corrosion, or breakage over time and use. This can compromise the bond between panels and weaken the overall dryer frame.

Causes of a bad screw include:

• Repeated expansion and contraction from heat cycles
• Vibrations loosening the connection point
• Stress or cracks developing at the screw head or threads

These issues can lead to:

• Gaps appearing between panels
• Components like controls detaching from the housing
• Cabinet unable to withstand pressure changes

This OEM Whirlpool replacement screw is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Screw is an OEM part for Whirlpool refrigerators, designed to secure components of the ice maker assembly. This screw maintains the structural integrity of the ice maker, ensuring that all parts are tightly fastened to prevent malfunction or inefficiency in ice production.

Causes of failure can include stripping of the screw threads through over-tightening or corrosion, leading to a less secure fit.

Symptoms of a bad Screw include:

• Loose or dislodged components within the ice maker assembly.
• Inconsistent or halted ice production due to components shifting.
• Unusual noises emanating from the ice maker as a result of loose parts.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This door shelf tube replaces the front retaining bar for a refrigerator gallon door bin, keeping tall containers secure on the door shelf. Restores proper door-bin retention and prevents items from falling when the door opens. What it does:

• Acts as the front retainer/bar for a gallon-size door shelf to hold bottles and jugs in place
• Prevents stored items from shifting or falling when the refrigerator door is opened
• Replace a cracked, broken, or missing tube that no longer secures the door bin
• Works with the corresponding door shelf/bin assembly to maintain proper fit and function

• High-level replacement: usually snaps or screws into the door shelf/bin; inspect mating clips for damage
• Remove contents from the door bin and support the bin before removing the old tube
• Use basic hand tools; avoid forcing broken plastic parts to prevent additional damage
• Disconnect power only if working near electrical components or lighting; otherwise power disconnection is not typically required
