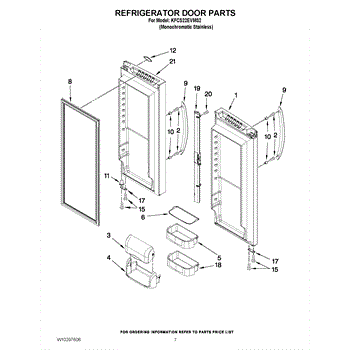

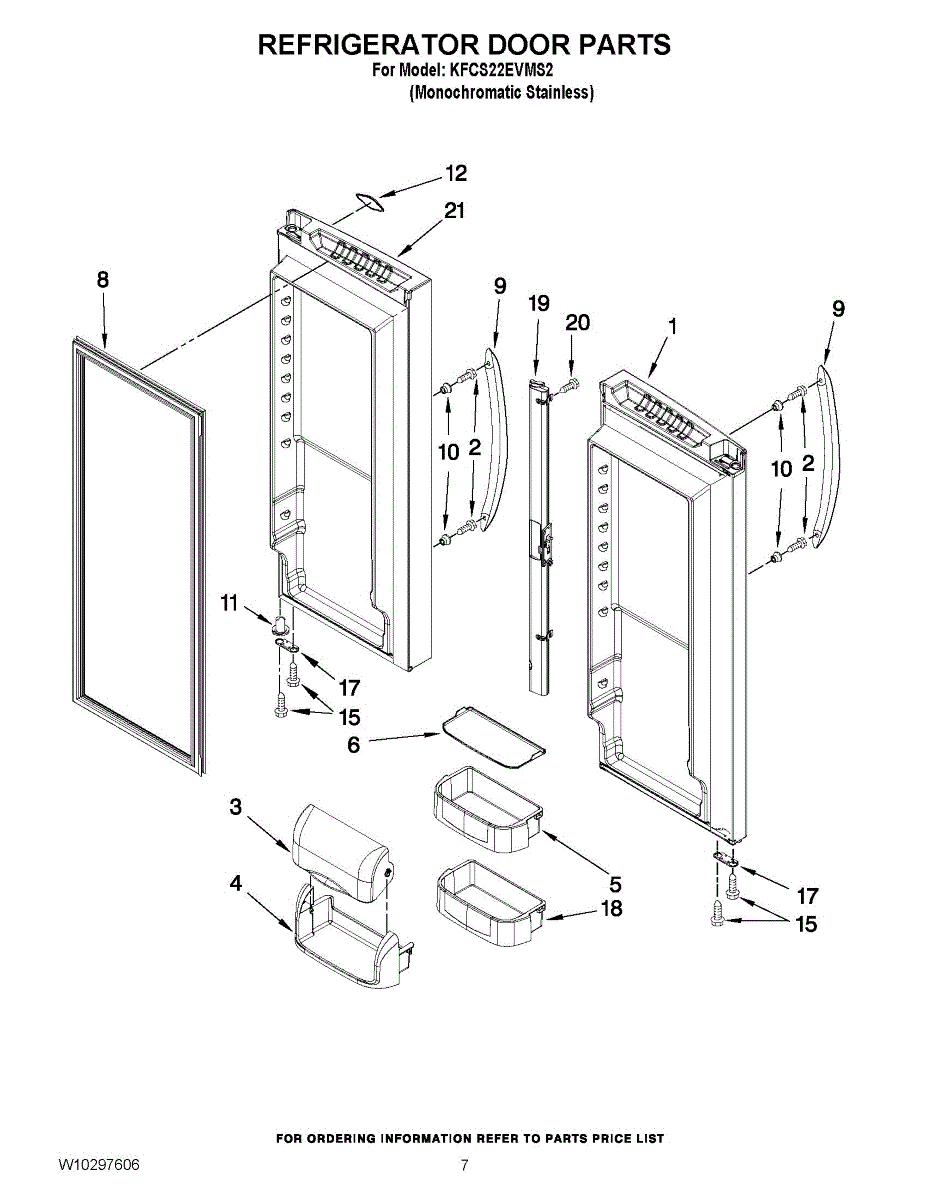

Parts for Kitchenaid KFCS22EVMS2: 04 - Refrigerator Door Parts

The Water Filter is an OEM part for Whirlpool refrigerators. It is designed to filter and purify the water for your refrigerator, ensuring clean and fresh drinking water and ice.

A bad refrigerator water filter can be caused by regular use and the buildup of contaminants over time. It may also become less effective if not replaced according to the manufacturer's recommended schedule.

Symptoms of a bad refrigerator water filter include:

• A decrease in water flow or water pressure.
• An unpleasant taste or odor in the water.
• The presence of particles or sediment in the water.
• Cloudy or discolored ice cubes.

If you notice any of these signs or if it has been more than six months since your last filter replacement, it's time to replace the refrigerator water filter with this genuine OEM part. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The Whirlpool screw is an OEM replacement part responsible for securely fastening various components and parts within Whirlpool appliances. These screws are essential for maintaining the structural integrity and safe operation of the appliance. These screws hold together critical components like panels, brackets, handles, and internal parts.

This part fixes the following symptoms:

• Loose or wobbly handles on refrigerators, ovens, or other appliances
• Vibrations or rattling noises during appliance operation
• Inability to assemble or disassemble parts during appliance repair or maintenance

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement dairy door restores the flip-up cover for the small butter/dairy bin on your refrigerator door. Replace a cracked or missing cover to keep contents contained and your door storage tidy.

• Covers the butter/dairy compartment on the fresh food door
• Flips up for access and down to help secure items
• Helps prevent small items from sliding out of the bin
• Replaces a cracked, broken, loose, or missing cover

• Remove the dairy bin for easier access and alignment
• Align hinge tabs with the bin pivots and press gently until it snaps in
• Avoid forcing cold plastic; let parts warm to room temperature
• If working near electrical components, disconnect power and wear cut-resistant gloves

Replace a cracked or missing dairy tray on your refrigerator door. This door bin restores a dedicated spot for butter and small items so they stay organized and easy to reach while maintaining a secure fit on the door.

• Mounts on the refrigerator door as the dairy compartment tray
• Holds butter, cheese, and other small items securely
• Restores proper fit when the original tray is cracked, warped, or missing
• Common symptoms: broken tabs, tray falls off, loose/wobbly fit, items spilling when the door opens

• Open the door, lift the old tray straight up and out; align the new tray with the door slots and lower until fully seated
• Handle plastic parts gently and avoid forcing; allow parts to warm to room temperature to reduce risk of cracking
• Confirm both sides are fully engaged before loading items

This door bin control lever replaces a worn or broken lever that secures the refrigerator door shelf/bin. Restores proper bin engagement so shelves stay locked in place and open smoothly. What it does:

• Replaces the molded lever that holds the door shelf/bin in the closed position
• Allows the door shelf/bin to latch and release correctly when opening/closing the door
• Commonly used when the bin slips, won't stay seated, or the lever is cracked or broken
• Helps eliminate rattling or loose-feeling door bins caused by a damaged control lever

• One door bin control lever (single)

• Basic hand tools may be required; remove food and empty the door bin before starting
• Inspect mating tabs and bin edges for damage; replace bin or retainer if those parts are broken
• Do not force parts; alignment is required for proper engagement
• Disconnect power only if you must remove electrical components near the work area

This mat cushions and protects the appliance base to reduce vibration and help contain small drips or leaks during operation. It's a simple, durable replacement that restores the original fit and helps keep the floor and appliance stable. What it does:

• Dampens movement and vibration to reduce noise and shifting during cycles
• Helps catch minor drips or condensed water beneath the unit
• Restores original cushioning where a worn or missing mat allowed extra movement
• Simple passive part—no electrical or mechanical connections

• One replacement mat as shown

• Place mat under appliance base on a clean, level surface; verify orientation per base shape
• For safety, disconnect power (and water if applicable) before moving the appliance
• Use caution when sliding the appliance to avoid floor damage; get a second person for heavy units
• If ongoing vibration or leaks persist, inspect mounts, leveling legs, and seals for additional repair

This replacement mat is a simple protective liner that helps keep the appliance base area clean and cushions the surface beneath the unit. It preserves finishes and helps contain minor spills and debris for easier cleanup. What it does:

• Provides a washable surface that catches drips, crumbs, and loose debris
• Helps protect cabinet or floor finishes from spills and scuffs
• Reduces direct contact between appliance base and underlying surface
• Can make cleanup faster by containing messes in one removable piece

• Remove old mat and clean the area before installing the new mat
• Position the mat flat and centered under the appliance or in the designated compartment
• Do not place the mat over vents, heating elements, or controls
• Lift or slide gently to avoid shifting the mat; follow all appliance safety and disconnect procedures before servicing

Color: Grey

The Door Gasket is an OEM part for Whirlpool refrigerators. It is designed to form an airtight seal around the refrigerator or freezer door, preventing cold air from escaping and warm air from entering. This seal is crucial for maintaining the appliance's internal temperature, ensuring food is stored under optimal conditions to remain fresh and safe to consume.

Causes of a bad Door Gasket include normal wear and tear, accidental damage, and exposure to extreme temperatures or cleaning chemicals that can degrade the material.

Symptoms of a bad Door Gasket include:

• Noticeable gaps between the gasket and the refrigerator frame.
• Condensation or frost buildup inside the refrigerator or freezer
• An increase in the refrigerator's energy consumption as it works harder to maintain the set temperature.
• The door not closing as tightly as before or feeling easier to open.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This black replacement handle restores a solid, comfortable grip for opening and closing your appliance's door or drawer. Replace a cracked or loose handle to improve safety and refresh the look of the unit.

• Provides the handhold needed to open and close the door or drawer
• Direct replacement for cracked, broken, or wobbly handles
• Helps resolve difficulty opening caused by a missing or damaged handle
• Restores a clean, factory look

• Disconnect power before servicing
• Access the handle's mounting screws from the inside of the door/drawer; remove screws, swap the handle, and reinstall
• Support the door/drawer while loosening/tightening fasteners
• Do not overtighten; verify smooth operation after installation

The Door Closer is an OEM part for Whirlpool refrigerators. This component ensures that the refrigerator door closes smoothly and securely, maintaining the seal that keeps cold air inside and warm air out. The door closer helps to prevent the door from remaining ajar, which can lead to increased energy consumption and reduced cooling efficiency.

Causes of a bad door closer can include regular wear and tear, physical damage from repeated use, or misalignment. A malfunctioning door closer can result in the refrigerator door not closing properly, leading to cooling issues and higher energy bills.

Symptoms of a bad door closer include:

• The refrigerator door not closing or sealing properly
• The door not staying closed
• Warm air entering the refrigerator, causing the interior temperature to rise
• Increased energy consumption due to the door not sealing

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

A replacement door stop that cushions and limits an appliance door's movement to prevent over-travel and reduce slamming. Restores smoother door operation and helps protect the hinge and cabinet from damage. What it does

• Acts as a bumper and travel limit for the appliance door to prevent it from opening too far.
• Reduces loud bangs and impact wear when opening or closing the door.
• Helps the door stay aligned and lessens strain on the hinge assembly.
• Common symptom linkage: door slams, door over-rotates, door binding or noisy hinge movement.

• One door stop.

• Disconnect power (or unplug) and ensure the appliance is stable before servicing.
• Basic hand tools may be required; remove any trim or screws securing the old stop before replacing.
• Align and seat the new stop so the door contacts it evenly; test operation slowly after installation.

This cantilever door shelf bin restores secure, adjustable storage on your refrigerator door. It hooks into the door's cantilever rails and holds bottles and condiments, helping you organize items and keep frequently used essentials within easy reach.

• Provides adjustable on-door storage for beverages, jars, and condiments
• Hooks into the cantilever rails and locks in place when seated
• Replaces a cracked, broken, wobbly, or missing bin
• Addresses issues like broken tabs or a bin that won't stay mounted

• Remove contents, then lift the old bin straight up to disengage from the door rails
• Align the new bin's tabs with the rail slots and press down evenly until fully seated
• Handle plastic carefully to avoid stress cracks; do not force into place
• Match by part number and bin position—some doors use different bin sizes in different locations

Color: Grey


The Mullion Rail is an OEM part for Whirlpool refrigerators. This rail is a vertical divider located between the refrigerator doors, ensuring a tight seal when the doors are closed. It helps to maintain the internal temperature of the refrigerator by preventing warm air from entering and cold air from escaping.

Causes of a bad mullion rail can include regular wear and tear, accidental impact, or damage to the hinges and seals over time. A faulty mullion rail can compromise the efficiency of the refrigerator, leading to increased energy consumption and reduced cooling performance.

Symptoms of a bad mullion rail include:

• Visible cracks or damage to the rail
• The refrigerator doors not sealing properly
• Increased frost or condensation inside the refrigerator
• Higher than normal energy bills due to inefficient cooling

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

This replacement screw fastens appliance components securely in place. Use it to replace missing, stripped, or corroded hardware so panels, brackets, and covers stay aligned and rattle-free.

• Secures parts such as panels, brackets, covers, or internal assemblies
• Restores alignment and helps eliminate vibration or rattling from loose hardware
• Replaces lost, rusted, or damaged screws during service
• Maintains safe, stable operation by keeping components tight

• Disconnect power before service; if applicable, also shut off water and/or gas
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing
• Use the correct driver bit to prevent stripping the head
