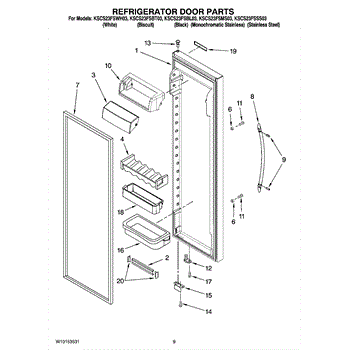

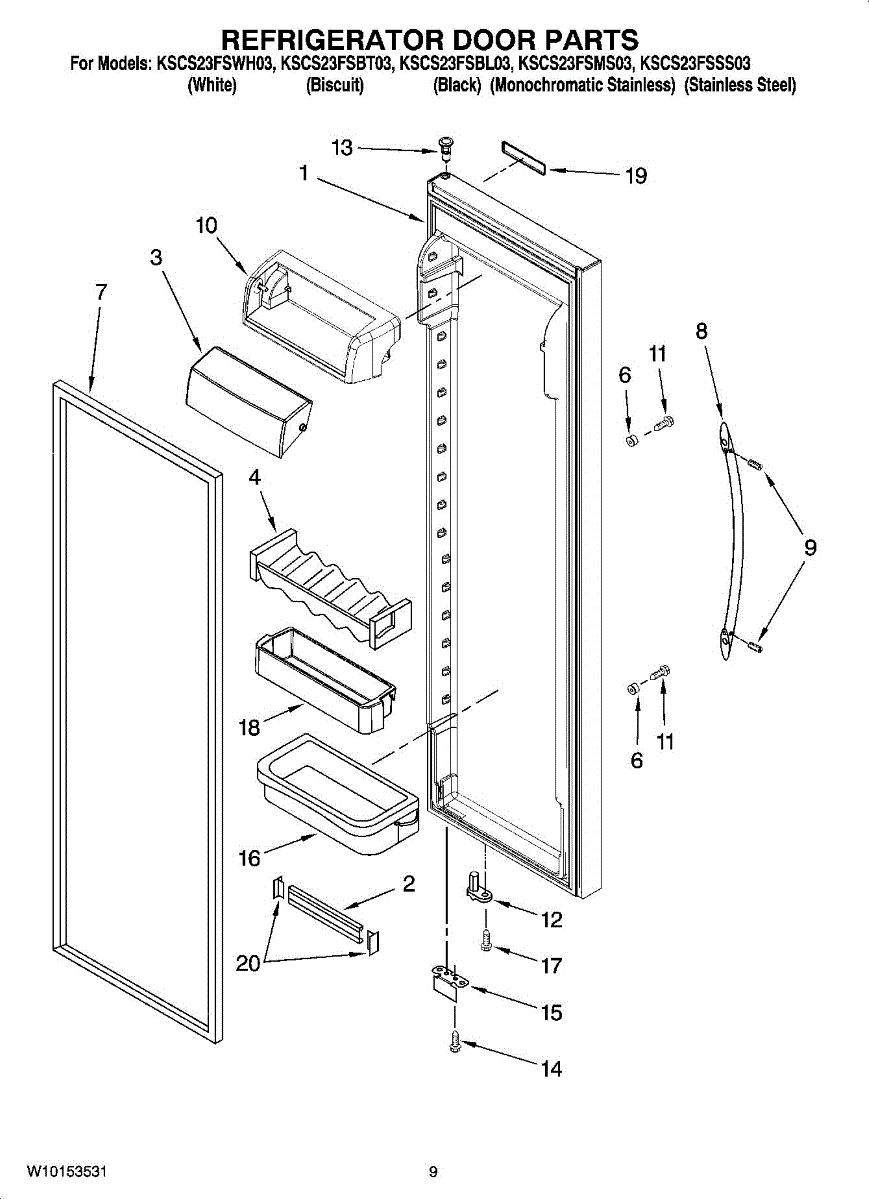

Parts for Kitchenaid KSCS23FSMS03: 06 - Refrigerator Door Parts

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

This door shelf trim replaces the damaged or worn plastic trim that secures and finishes the front edge of a refrigerator door shelf, restoring appearance and helping keep items in place. What it does

• Replaces cracked, broken or missing door-shelf trim that allows items to fall forward
• Restores a finished look to the refrigerator door interior
• Helps retain bottles and containers on the door shelf edge
• Matches OEM fit and mounting points for straightforward replacement

• One door shelf trim piece as shown

• Typically snaps into the front edge of the door shelf; remove the shelf/bin first if needed
• Inspect mounting tabs for damage and replace bin/shelf if tabs are broken
• Use gentle prying with a plastic tool to avoid scratching surrounding surfaces
• Unplug the appliance or disconnect power if working near electrical components or lights

Color: clear. It measures about 14 inches wide by 6 inches high.

The Screw (Shoulder Bolt) is an OEM part for Whirlpool refrigerators. This part secures the refrigerator handle to the door, ensuring it remains firmly attached and functions correctly. The shoulder design of the bolt allows for proper spacing and alignment of the handle, providing stability and ease of use.

Causes of a bad handle screw can include regular wear and tear, over-tightening, or accidental damage during use or maintenance.

Symptoms of a bad handle screw include:

• Loose or wobbly refrigerator handle
• Handle detaching from the door
• Difficulty opening or closing the refrigerator
• Visible damage or wear on the screw

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: Black

Color: Stainless

Color: White

Color: Black

The Handle Set Screw is an OEM part for Whirlpool refrigerators. As an internal component, the set screw is used to securely hold refrigerator door handles in place for easy opening and closing of access doors.

Symptoms of a bad handle set screw include:

• Handles that spin loose and no longer open doors properly
• Loss of attachment causing handles to fall off doors
• Potential for handles to fall on feet presenting a safety hazard
• Opening issues, like hands slipping off spinning handles

Causes involve wear from repeated use or accidental tightening damage stripping threads and allowing handle loosening, affecting usability.

This OEM Whirlpool part is also compatible with some Kenmore and KitchenAid models.

This dairy compartment door replaces the small interior door that covers the refrigerator's dairy/bin area, restoring a sealed, accessible storage space for butter and small items. It helps keep contents contained and organized. What it does:

• Replaces a cracked, broken, or missing dairy compartment door
• Restores the door that covers the dairy/bin shelf so items stay contained
• Helps maintain a neat interior and makes the dairy area easier to access
• Compatible with refrigerators that use this specific replacement door design

• One dairy compartment door

• High-level replacement: usually snaps or slides into the dairy bin track—inspect mounting tabs before installing
• Use gentle pressure to avoid breaking plastic tabs; replace any damaged clips or supports
• Disconnect power and remove food from the area if removing shelves or bins during installation

This replacement screw secures appliance panels, brackets, and components to the cabinet or chassis. The #8-15 x 1/2 in. size restores a snug, reliable hold when original hardware is missing, stripped, or corroded.

• Fastens panels, brackets, and trim to the appliance cabinet or chassis
• Helps reduce rattling, vibration, or looseness caused by missing/stripped hardware
• Restores proper alignment of parts that have shifted due to loose fasteners
• Size/spec: #8-15 thread, 1/2-inch length; use where this size is specified

• Disconnect power and shut off gas/water supplies before servicing
• Replace one screw at a time to maintain alignment of parts
• Start threads by hand to prevent cross-threading; do not overtighten
• Use a matching driver/bit type for the screw head used in your appliance

The Door Thimble, Top is an OEM part for Whirlpool refrigerators. This component is used to support and secure the door hinge, ensuring smooth and stable opening and closing of the refrigerator door.

You should replace the door thimble if it becomes damaged or worn out. Causes of a bad door thimble include wear and tear from frequent use, stress from heavy door loads, or damage from accidental impacts. A faulty thimble can lead to misalignment of the door, causing it to sag or not seal properly.

Symptoms of a bad Door Thimble, Top include:

• Difficulty in opening or closing the door
• The door not aligning correctly with the refrigerator frame
• Noticeable sagging or wobbling of the door
• Unusual noises when the door is moved

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Screw is an OEM replacement part for Whirlpool appliances. The precise threads allow screws to join or assemble other parts securely.

Causes of a bad screw can include stripping, cracking, or loss of threads due to repeated installation/removal over time. Corrosion is also possible depending on environmental conditions.

Symptoms of a bad screw include:

• Loosened or detached components that were once fastened
• Reduced structural integrity of connections or assemblies
• Potential safety hazards if critical parts become dislodged

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This mounting bracket secures internal components and panels so they stay aligned and stable during operation. It replaces a worn or broken bracket to restore proper support and reduce vibration or movement. What it does:

• Provides a secure mounting point for internal parts or panels
• Helps prevent rattling, misalignment, or loose panels during use
• Restores proper fit and stability when an original bracket is cracked or bent
• Works as a direct-replacement hardware piece where specified by the manufacturer

• Disconnect power to the appliance before starting any repair
• Use basic hand tools; keep fasteners and orientation the same as removed
• If the bracket is attached to electrical components, handle wiring carefully and inspect connectors

The Door Bin is an OEM part for Whirlpool refrigerators. This bin provides a convenient place to store condiments, jars, bottles, and other small to medium-sized items, making them easily accessible and maximizing the overall storage efficiency of your refrigerator. The bin measures about 18 inches wide by 4-1/2 inches high by 8 inches deep.

Causes of a bad Door Bin can include cracking or breaking due to overloading, damage from impact if items are placed too forcefully, or wear and tear over time, leading to a decrease in the aesthetic appeal and functionality of the refrigerator's interior.

Symptoms of a bad Door Bin include:

• Difficulty fitting into its designated slot
• Cracks or breakage that compromise its ability to hold items securely
• Noticeable warping or discoloration affecting the overall look of your refrigerator interior

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement screw secures panels, brackets, and internal components in Whirlpool-built appliances. Use it to replace missing or stripped hardware to restore a snug fit, reduce rattling, and maintain proper alignment. What it does:

• Fastens components to the appliance cabinet or frame
• Helps maintain alignment and proper clearances
• Reduces vibration-related noises from loose or missing hardware
• Common replacement when a screw is lost, corroded, or threads are damaged

• 1 screw

• Disconnect power before service; for gas appliances, also shut off gas supply
• Start threading by hand to avoid cross-threading; use the correct driver bit
• Tighten snugly without overtightening to prevent stripping
• Inspect and replace any worn clip/nut or damaged threads

The Shelf Bin is an OEM replacement part for Whirlpool refrigerator doors. It provides a versatile area for organized food storage and convenience.

Causes of a faulty bin can include damaged or worn slides from years of use. Prolonged exposure to spills may degrade plastic integrity over time.

Symptoms include:

• Loose, misaligned, or improperly operating shelf position
• Cracks or breakage of shelf supports
• Leaks entering door shelf framework
• Inability to remove for thorough cleaning

This OEM bin is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator door shelves.

Color: White

This replacement name plate restores the appliance's front identification/trim for a clean, factory appearance and helps keep labels and controls visible. It's a simple cosmetic/replaceable part for worn, cracked, or missing name plates. What it does

• Replaces a faded, cracked or missing name plate to restore original appearance
• Provides the visible label/trim that surrounds or covers controls and branding
• Helps prevent dirt and grime from collecting behind exposed openings
• Restores a finished look after panel or control repairs

• One name plate

• Disconnect power to the appliance before starting any work
• Typically installs with snaps or screws; align carefully and avoid forcing the plastic
• Use appropriate tools for specific steps
• Replace with OEM hardware for correct fit

Color: Black

The Shelf Trim Endcap is an OEM replacement part for Whirlpool refrigerators. This component fits on the end of the refrigerator shelf trim, providing a finished look and securing the trim in place. It helps to maintain the integrity and appearance of the refrigerator shelves, preventing items from sliding off and ensuring the shelves are securely held in place.

Causes of a bad shelf trim endcap can include regular wear and tear, physical impact from loading and unloading items, or exposure to temperature changes that can cause the plastic to become brittle.

Symptoms of a bad Shelf Trim Endcap include:

• The shelf trim being loose or not staying in place
• Items sliding off the shelf due to instability
• Visible cracks or breaks in the endcap
• Difficulty in securing the shelf trim properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
