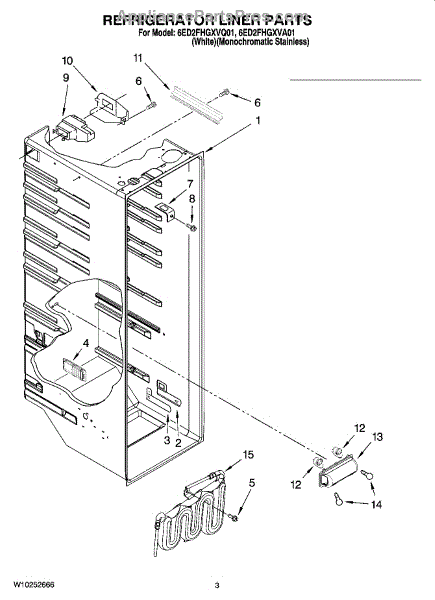

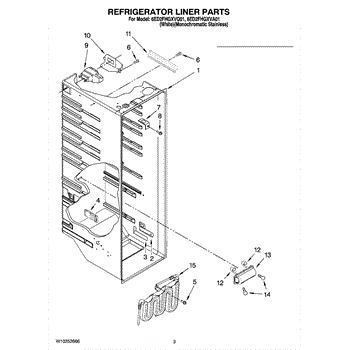

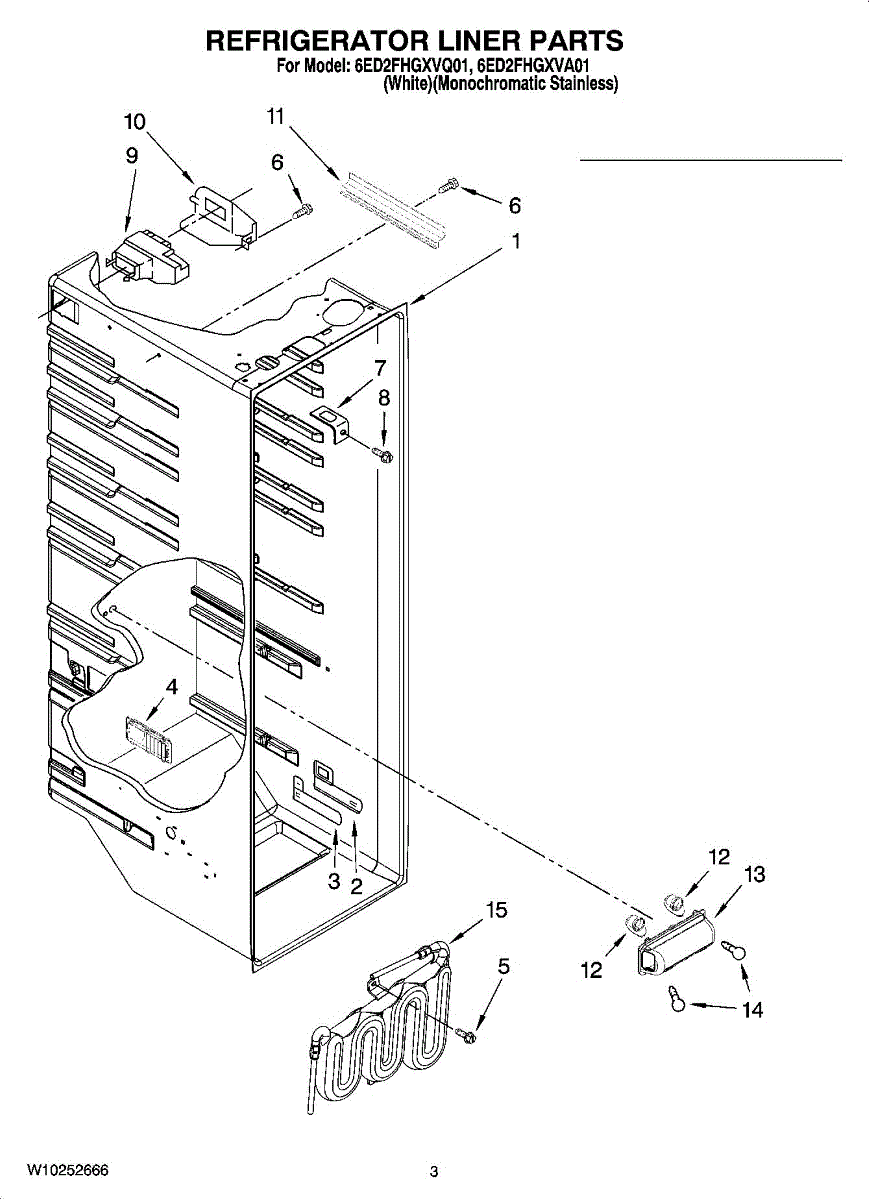

Parts for Whirlpool 6ED2FHGXVA01: 02 - Refrigerator Liner Parts

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

The Light Bulb Socket is an OEM part for Whirlpool refrigerators. It is responsible for housing the bulb that illuminates the interior fridge light. The socket provides a protective casing and stable electrical connection for the light bulb. Its interior components are precisely arranged to safely conduct current to the bulb.

Causes of a bad light bulb socket can include cracks, loose connections, or damaged internal wiring due to regular use over time.

Symptoms of a bad light bulb socket include:

• The fridge interior light failing to turn on
• The bulb burning out quickly
• Flickering or intermittent lighting

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is the light lens that covers and protects the appliance's light source. Replacing a cracked, yellowed, or missing lens restores clear, even illumination while shielding the bulb/LED from grease, moisture, and impact.

• Diffuses light for more even, glare-free illumination
• Protects the bulb or LED module from debris, grease, and moisture
• Replace if the lens is cracked, warped, melted, discolored, or missing
• Also replace if the lens no longer stays seated or falls out

• Disconnect power to the appliance before servicing and allow the area to cool
• Remove any retaining screws or release tabs to take off the old lens
• Seat the new lens fully; reuse existing fasteners if applicable
• Do not overtighten fasteners; handle carefully to avoid damage

This 40W replacement light bulb restores interior appliance lighting so you can see inside ovens and ranges for checking food without opening the door. Simple, direct fit for compatible appliance light sockets. What it does:

• Provides bright, focused 40W illumination for appliance interiors
• Replaces burned-out or dim bulbs so the interior light turns on when the door is opened
• Helps you monitor cooking progress and oven/range activity safely
• Fits standard appliance light housings designed for a 40W lamp

• Always disconnect power or unplug the appliance before replacing the bulb
• Allow the old bulb and surrounding area to cool completely before handling
• Use a cloth or gloves to avoid skin oils on the bulb; tighten gently—do not overtighten
• Restore power to test operation

The Water Reservoir Tubing is an OEM replacement part for Whirlpool refrigerators. It is a flexible plastic tubing that replaces the water reservoir and holds the water for the ice maker and dispenser.

Causes can include cracks from heat or cold exposure over time, punctures from sharp edges during installation, or deterioration of plastic tubing that impacts integrity.

Symptoms of bad water reservoir tubing include:

• Inaccurate or inconsistent ice production
• Leaks or water spills near the reservoir or ice maker
• Kinks or ruptures in the tubing that obstruct water flow
• Mineral buildup that clogs or restricts the line

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

Note: As per manufacture this is no longer a tank. The tank style has been updated with coiled tubing.
