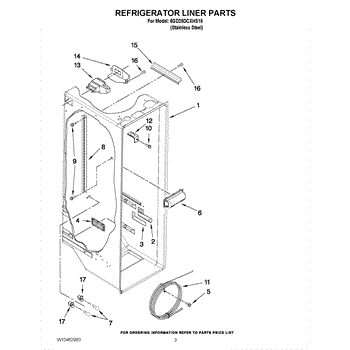

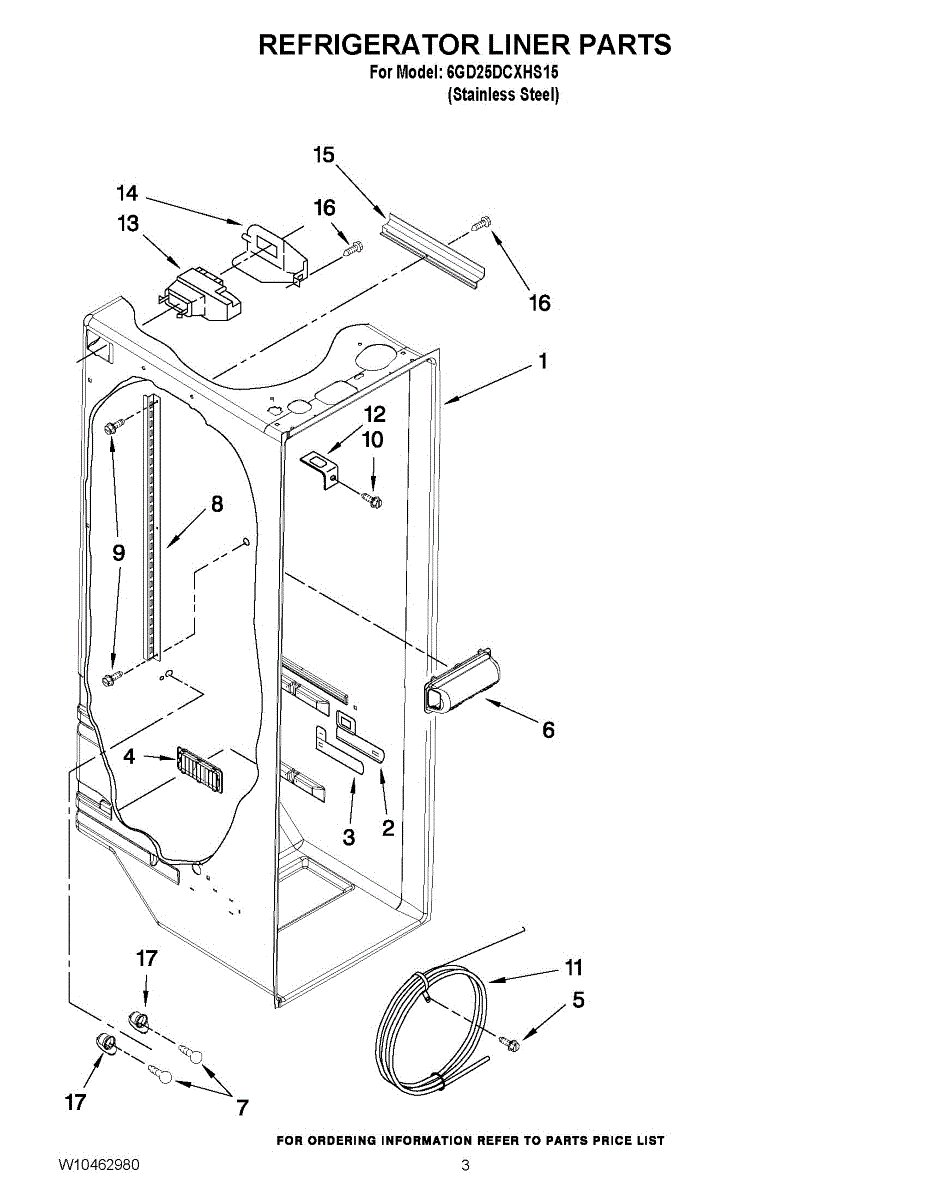

Parts for Whirlpool 6GD25DCXHS15: 02 - Refrigerator Liner Parts

The Whirlpool EveryDrop Refrigerator Water Filter 5 is an OEM replacement filter for Whirlpool refrigerators. This filter is used in Whirlpool bottom freezer and side-by-side refrigerators which accept Filter 5.

• Single Port Filter
• Simple turn installation requires no special tools
• For best performance, replace every six months
• Micron Rating: 0.5
• Filter Media: Coconut Carbon Block
• Flow Rate: 0.5 GPM
• Capacity: 300 gallons
• Temp Range: 33 - 100 °F
• Pressure Range: 30 - 120 psi
• Approximate dimensions: 2.30 x 3.00 x 11.60 Inches
• Meets NSF Standard: 42
• Approved for WQA Gold Seal
• Reduces 16 contaminants, including lead, mercury, asbestos, etc

A genuine replacement screw used to secure appliance panels, brackets, and components so assemblies stay aligned and stable. Installs quickly with a screwdriver or driver bit to restore proper fit and reduce rattling. What it does:

• Secures panels, trim, brackets or internal components to keep parts properly aligned
• Prevents loose or vibrating panels that can cause noise or wear
• Holds mounting points that keep doors, seals, and assemblies operating correctly
• Replaces stripped, missing, or corroded fasteners that compromise fit

• Turn off and unplug the appliance before starting any repair
• Use the correct screwdriver or driver bit to avoid stripping the head
• Tighten until snug; avoid overtightening which can strip threads or deform parts
• Keep removed hardware organized and replace like-for-like for best fit

This is the light lens that covers and protects the appliance's light source. Replacing a cracked, yellowed, or missing lens restores clear, even illumination while shielding the bulb/LED from grease, moisture, and impact.

• Diffuses light for more even, glare-free illumination
• Protects the bulb or LED module from debris, grease, and moisture
• Replace if the lens is cracked, warped, melted, discolored, or missing
• Also replace if the lens no longer stays seated or falls out

• Disconnect power to the appliance before servicing and allow the area to cool
• Remove any retaining screws or release tabs to take off the old lens
• Seat the new lens fully; reuse existing fasteners if applicable
• Do not overtighten fasteners; handle carefully to avoid damage

This 40W replacement light bulb restores interior appliance lighting so you can see inside ovens and ranges for checking food without opening the door. Simple, direct fit for compatible appliance light sockets. What it does:

• Provides bright, focused 40W illumination for appliance interiors
• Replaces burned-out or dim bulbs so the interior light turns on when the door is opened
• Helps you monitor cooking progress and oven/range activity safely
• Fits standard appliance light housings designed for a 40W lamp

• Always disconnect power or unplug the appliance before replacing the bulb
• Allow the old bulb and surrounding area to cool completely before handling
• Use a cloth or gloves to avoid skin oils on the bulb; tighten gently—do not overtighten
• Restore power to test operation

Size: 8 x 1/2 ab.

The Water Reservoir Tubing is an OEM replacement part for Whirlpool refrigerators. It is a flexible plastic tubing that replaces the water reservoir and holds the water for the ice maker and dispenser.

Causes can include cracks from heat or cold exposure over time, punctures from sharp edges during installation, or deterioration of plastic tubing that impacts integrity.

Symptoms of bad water reservoir tubing include:

• Inaccurate or inconsistent ice production
• Leaks or water spills near the reservoir or ice maker
• Kinks or ruptures in the tubing that obstruct water flow
• Mineral buildup that clogs or restricts the line

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

Note: As per manufacture this is no longer a tank. The tank style has been updated with coiled tubing.

The Light Bulb Socket is an OEM part for Whirlpool refrigerators. It is responsible for housing the bulb that illuminates the interior fridge light. The socket provides a protective casing and stable electrical connection for the light bulb. Its interior components are precisely arranged to safely conduct current to the bulb.

Causes of a bad light bulb socket can include cracks, loose connections, or damaged internal wiring due to regular use over time.

Symptoms of a bad light bulb socket include:

• The fridge interior light failing to turn on
• The bulb burning out quickly
• Flickering or intermittent lighting

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
