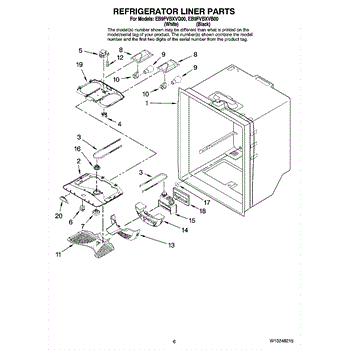

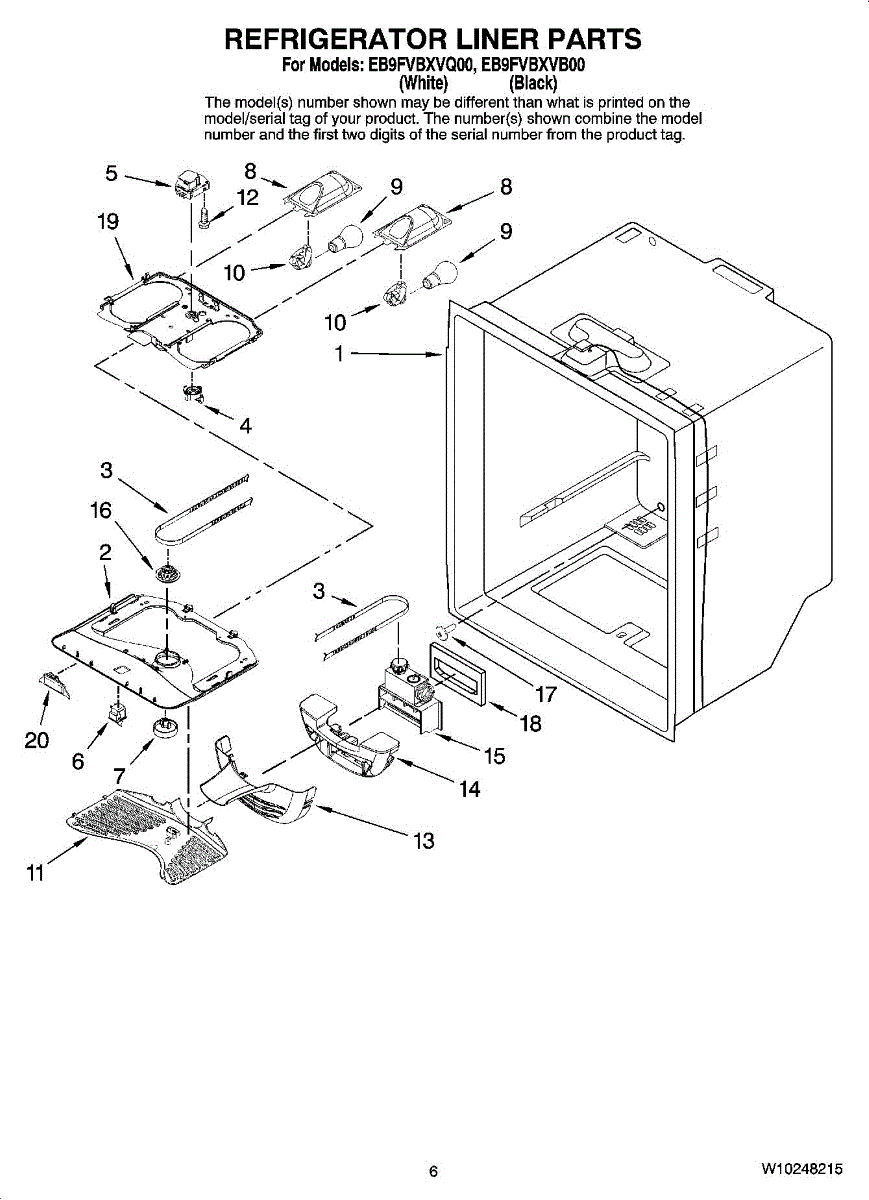

Parts for Whirlpool EB9FVBXVB00: 04 - Refrigerator Liner Parts

This refrigerator defrost timer automatically starts and ends the defrost cycle to melt frost from the evaporator coils. Replacing a failed timer restores consistent cooling performance and helps prevent frost buildup that can restrict airflow.

• Controls the timed switch between cooling and defrost to keep evaporator coils clear of frost
• Common symptoms of failure: heavy frost on the evaporator or back panel, fresh food section too warm, unit runs constantly, or won't resume cooling after defrost
• Restores proper frost removal and airflow for stable temperatures
• Designed to match the original timer's function and wiring connections for applicable models

• Disconnect power before servicing; wear cut-resistant gloves
• Access location varies by model—often in the fresh food control housing or rear machine compartment
• Photograph/label wire positions and transfer them to the matching terminals on the new timer
• Reuse original mounting hardware and install in the same orientation as the original

The Door Switch is an OEM part for Whirlpool refrigerators. This switch plays a crucial role in monitoring the status of the refrigerator door. It detects when the door is open and closed and signals the refrigerator to suspend or resume cooling operations accordingly.

Causes of a bad door switch can include general wear and tear over time, exposure to moisture, or impact damage. Please check for proper connection and that the wires are intact before replacing the switch.

Symptoms of a bad door switch include:

• The refrigerator fails to resume cooling after closing the door
• The inside light fails to turn on when the door is opened
• Abnormal energy usage due to improper door monitoring

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This outer cabinet housing provides a durable structural shell that supports internal components and protects them from debris and wear. It restores proper alignment and enclosure for safe, stable appliance operation. What it does:

• Replaces a cracked, dented, or misshapen outer housing that can allow debris or moisture into the appliance
• Restores proper mounting surfaces and clearances for panels, controls, and internal assemblies
• Helps reduce rattling or vibration caused by a compromised cabinet
• Prevents exposure of internal wiring and components to contaminants

• One outer cabinet housing

• Recommended for experienced DIYers; some disassembly of panels and components is required
• Disconnect power and any water lines before beginning work
• Keep track of screws and brackets; some fasteners may be reused

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

The Light Bulb Socket is an OEM part for Whirlpool refrigerators. It is responsible for housing the bulb that illuminates the interior fridge light. The socket provides a protective casing and stable electrical connection for the light bulb. Its interior components are precisely arranged to safely conduct current to the bulb.

Causes of a bad light bulb socket can include cracks, loose connections, or damaged internal wiring due to regular use over time.

Symptoms of a bad light bulb socket include:

• The fridge interior light failing to turn on
• The bulb burning out quickly
• Flickering or intermittent lighting

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This small button-style plug fills and finishes an unused hole or access opening on the appliance, restoring a clean appearance and helping keep out dust and moisture. It's a simple cosmetic and protective replacement. What it does:

• Covers and seals unused holes or trim openings to improve appearance
• Helps block dirt, lint, and moisture from entering panels or compartments
• Replaces worn or damaged plugs that no longer seat securely
• Provides a flush, finished look matching appliance trim

• Disconnect power to the appliance before servicing for safety.
• Typically snaps or presses into place; use a flat tool to carefully remove an old plug if needed.
• Avoid excessive force to prevent damage to surrounding trim or clips.

This replacement pan-timer/light housing assembly secures the timer and light components behind the control panel and restores proper fit and operation. Use it when the original housing is cracked, loose, or not holding the lamp/timer correctly. What it does:

• Provides the mounting structure for the timer and control panel light so components sit securely
• Keeps the light assembly aligned to illuminate the control area
• Prevents rattling or movement of timer/light parts caused by a damaged housing
• Safe, common symptom fix for visible cracks, loose control trim, or intermittent light alignment

• One pan-timer/light housing assembly

• Disconnect power to the appliance before starting any repair
• Access typically requires removing the control panel or trim; handle plastic tabs and clips carefully to avoid breakage
• Reinstall screws and connectors to factory torque; do not force parts into position
• If wiring or bulbs are damaged, replace those items separately
