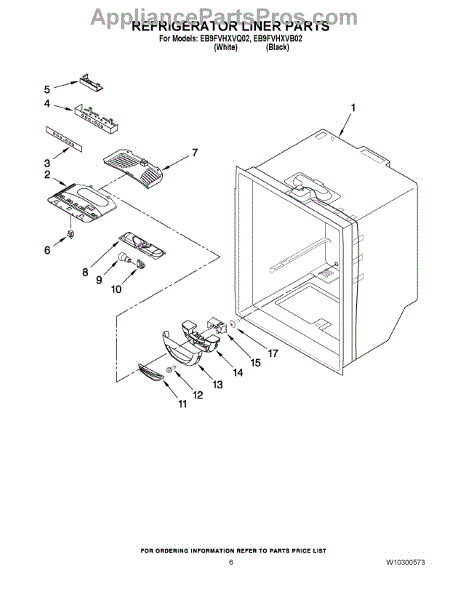

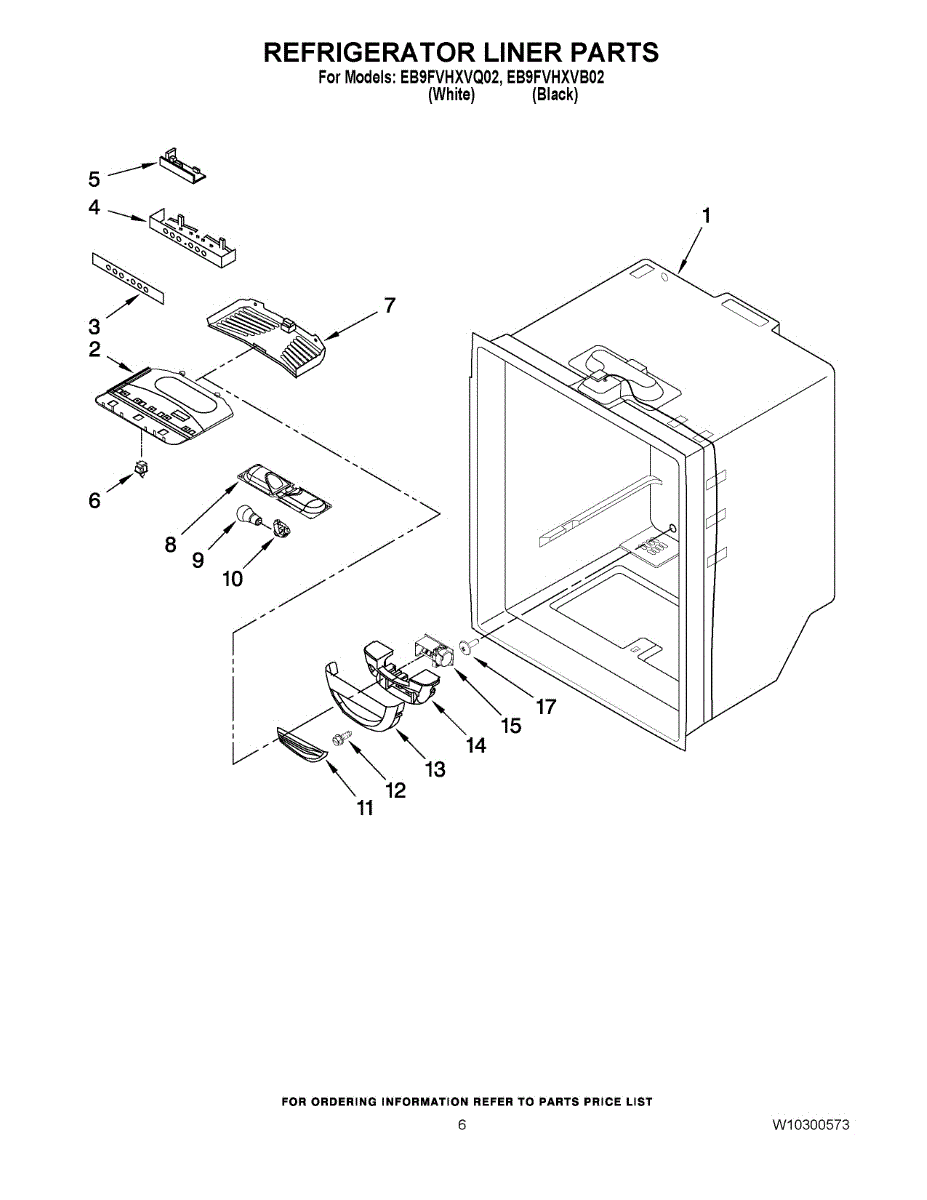

Parts for Whirlpool EB9FVHXVB02: 04 - Refrigerator Liner Parts

This control module housing protects and secures the refrigerator's electronic control board, helping keep the board stable and shielded from damage and moisture. Replacing a damaged housing restores proper support and connector alignment for the control module. What it does:

• Provides a mounting enclosure and protective cover for the refrigerator control module
• Keeps wiring harnesses and connectors properly routed and secured
• Helps prevent moisture and debris from contacting the control board
• A damaged or cracked housing can lead to loose connections, intermittent operation, or control/display issues

• Disconnect power to the appliance before starting any repair
• Handle the control board and electronics with care; avoid static discharge
• Ensure all connectors are fully seated and routed the same way as the original housing
• Reuse factory mounting hardware unless replacement fasteners are specified

The Electronic Control Board is an OEM replacement part for Whirlpool refrigerators. This Electronic (JAZZ) Control Board manages various functions of your refrigerator, ensuring proper temperature control and operation. After installation, the board will need to be programmed. An instruction sheet is included.

Causes of a bad Electronic Control Board can include electrical surges, which can damage components on the board, age-related wear and tear affecting its functionality, and exposure to moisture or extreme temperature fluctuations. These factors can lead to a malfunctioning fridge with erratic behaviors.

Symptoms of a bad Electronic Control Board include:

• The refrigerator not cooling properly
• Irregular defrost cycles leading to frost buildup or thawing issues
• Unresponsive controls or display issues
• The ice maker or water dispenser not working as expected

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Door Switch is an OEM part for Whirlpool refrigerators. This switch plays a crucial role in monitoring the status of the refrigerator door. It detects when the door is open and closed and signals the refrigerator to suspend or resume cooling operations accordingly.

Causes of a bad door switch can include general wear and tear over time, exposure to moisture, or impact damage. Please check for proper connection and that the wires are intact before replacing the switch.

Symptoms of a bad door switch include:

• The refrigerator fails to resume cooling after closing the door
• The inside light fails to turn on when the door is opened
• Abnormal energy usage due to improper door monitoring

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This replacement cover restores a finished look and protects underlying components on your appliance. Replacing a cracked or missing cover helps keep out debris and moisture while maintaining proper function and appearance. What it does:

• Shields internal parts from dust, splashes, and accidental contact
• Helps maintain intended airflow/water routing depending on location
• Secures the opening or mechanism for a snug, rattle-free fit
• Typical symptoms: cracked, warped, loose, or missing cover; exposed components; new rattling or vibration noises

• Disconnect power; shut off water supply before servicing
• Note orientation and any clips/gaskets before removal; transfer reusable hardware
• Reinstall with original screws/clips; do not overtighten to avoid cracking
• Restore power and test; check for proper fit and any leaks or vibration

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

The Light Bulb Socket is an OEM part for Whirlpool refrigerators. It is responsible for housing the bulb that illuminates the interior fridge light. The socket provides a protective casing and stable electrical connection for the light bulb. Its interior components are precisely arranged to safely conduct current to the bulb.

Causes of a bad light bulb socket can include cracks, loose connections, or damaged internal wiring due to regular use over time.

Symptoms of a bad light bulb socket include:

• The fridge interior light failing to turn on
• The bulb burning out quickly
• Flickering or intermittent lighting

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This damper cover insert fits the refrigerator's air damper/diffuser. It helps guide and seal airflow from the freezer to the fresh food section, supporting stable temperatures and reducing drafts when the original insert is cracked or missing.

• Seats inside the damper cover to shape and restrict airflow between freezer and refrigerator compartments
• Helps seal the vent opening to limit air leaks
• Supports proper temperature balance and airflow distribution in the fresh food section
• Typical symptoms include a broken/missing insert, air drafts at the vent, rattling from the cover, or inconsistent cooling

• Disconnect power to the refrigerator before servicing
• Remove shelves as needed and access the damper cover in the fresh food compartment
• Release and remove the damaged insert; snap the new insert into the cover with correct orientation and a secure fit
• Handle nearby foam seals and the damper door carefully to avoid damage

This base damper cove is the plastic cover that protects and supports the refrigerator damper assembly, keeping airflow components secure and helping maintain proper internal airflow. Replacing a damaged cove prevents loose parts and air leaks. What it does:

• Protects the damper assembly and related components from debris and damage
• Helps maintain proper airflow routing between compartments
• Reduces rattling or vibration from a loose or broken damper cover
• Can prevent cold-air leaks that contribute to uneven cooling

• One base damper cove

• Disconnect power to the appliance before beginning any service
• Remove the kickplate or access panel to reach the damper area as required
• Handle plastic pieces gently to avoid cracking; use proper fasteners if provided

This insulation panel helps reduce heat transfer in the refrigerator cabinet so the appliance holds cold temperatures more efficiently and reduces frost buildup. It's a direct-fit replacement for the factory cabinet insulation. What it does:

• Slows thermal transfer between the cabinet and ambient air to help maintain interior temperatures
• Helps reduce frost buildup on evaporator and interior surfaces
• Improves cooling efficiency by minimizing cold-air loss
• Quietly adds a layer of thermal and acoustic insulation behind the liner

• Disconnect power and remove food before starting any repair
• Access requires removing the interior liner or trim
• Handle gently and wear gloves; insulation can tear or shed fibers
• Follow OEM instructions for adhesive or fastener placement and secure fit

The Damper Control Assembly is an OEM part for Whirlpool refrigerators. This component regulates the flow of cold air from the freezer compartment to the refrigerator compartment, ensuring consistent and optimal temperatures throughout the appliance. It plays a critical role in maintaining the balance between freezer and refrigerator temperatures.

Common causes of a bad damper control assembly include electrical malfunctions, physical damage to the damper, or wear and tear from regular use. Over time, the motor or the damper flap can fail, leading to improper air regulation.

Symptoms of a bad damper control assembly include:

• Inconsistent temperatures between the freezer and refrigerator compartments
• The refrigerator being too warm or too cold
• Frost buildup in the refrigerator compartment
• The damper making unusual noises or not moving as it should

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This small button-style plug fills and finishes an unused hole or access opening on the appliance, restoring a clean appearance and helping keep out dust and moisture. It's a simple cosmetic and protective replacement. What it does:

• Covers and seals unused holes or trim openings to improve appearance
• Helps block dirt, lint, and moisture from entering panels or compartments
• Replaces worn or damaged plugs that no longer seat securely
• Provides a flush, finished look matching appliance trim

• Disconnect power to the appliance before servicing for safety.
• Typically snaps or presses into place; use a flat tool to carefully remove an old plug if needed.
• Avoid excessive force to prevent damage to surrounding trim or clips.

This wire harness assembly routes electrical power and signals between the appliance control and components so the unit operates reliably. It replaces damaged or worn wiring to restore proper electrical connections and reduce intermittent faults. What it does

• Delivers power and control signals between control board and components.
• Replaces frayed, burned, or disconnected wiring that can cause intermittent operation.
• Helps resolve failures where components do not receive power or controls are unresponsive.
• Prevents shorts and arcing when damaged insulation or connectors are present.

• Disconnect power (unplug or shut off breaker) before starting any repair.
• Photograph existing routing and connector positions to ensure correct reinstallation.
• Handle connectors carefully; do not force pins or terminals. Match connector shapes and colors.
• Inspect nearby wiring and terminals for heat or corrosion; replace if damaged.
