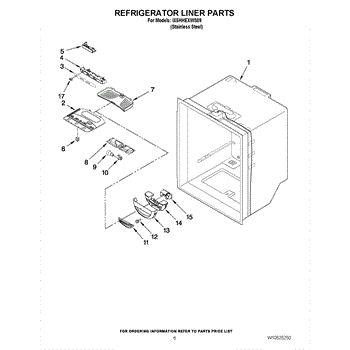

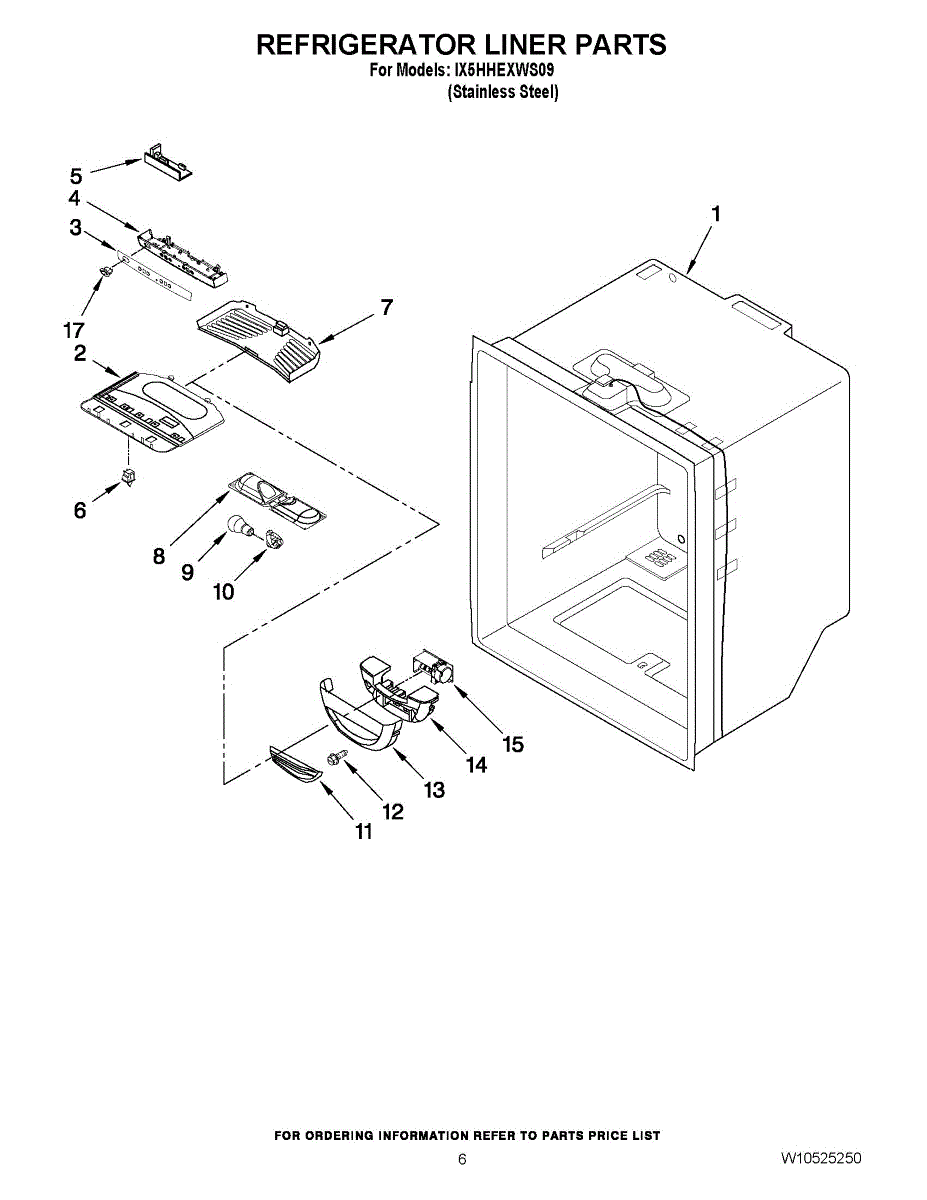

Parts for Whirlpool IX5HHEXWS09: 04 - Refrigerator Liner Parts

The Electronic Control Board is an OEM replacement part for Whirlpool refrigerators. This Electronic (JAZZ) Control Board manages various functions of your refrigerator, ensuring proper temperature control and operation. After installation, the board will need to be programmed. An instruction sheet is included.

Causes of a bad Electronic Control Board can include electrical surges, which can damage components on the board, age-related wear and tear affecting its functionality, and exposure to moisture or extreme temperature fluctuations. These factors can lead to a malfunctioning fridge with erratic behaviors.

Symptoms of a bad Electronic Control Board include:

• The refrigerator not cooling properly
• Irregular defrost cycles leading to frost buildup or thawing issues
• Unresponsive controls or display issues
• The ice maker or water dispenser not working as expected

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Door Switch is an OEM part for Whirlpool refrigerators. This switch plays a crucial role in monitoring the status of the refrigerator door. It detects when the door is open and closed and signals the refrigerator to suspend or resume cooling operations accordingly.

Causes of a bad door switch can include general wear and tear over time, exposure to moisture, or impact damage. Please check for proper connection and that the wires are intact before replacing the switch.

Symptoms of a bad door switch include:

• The refrigerator fails to resume cooling after closing the door
• The inside light fails to turn on when the door is opened
• Abnormal energy usage due to improper door monitoring

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This replacement housing is the outer cabinet component that supports and protects internal appliance parts, restoring proper alignment and preventing debris intrusion. It's a direct-fit service piece when the original housing is cracked, bent, or damaged. What it does:

• Replaces a damaged or cracked outer housing to restore structural support
• Protects internal components from dirt, moisture, and impact
• Reduces vibration and rattling caused by warped or broken housing
• Helps maintain correct alignment of internal assemblies for reliable operation

• One replacement housing

• Disconnect power (and water if applicable) before starting any repair
• Handle edges carefully — use gloves to protect against sharp metal or plastic
• Follow OEM instructions for removal and reassembly; fasteners and trim may be required

The Light Bulb Socket is an OEM part for Whirlpool refrigerators. It is responsible for housing the bulb that illuminates the interior fridge light. The socket provides a protective casing and stable electrical connection for the light bulb. Its interior components are precisely arranged to safely conduct current to the bulb.

Causes of a bad light bulb socket can include cracks, loose connections, or damaged internal wiring due to regular use over time.

Symptoms of a bad light bulb socket include:

• The fridge interior light failing to turn on
• The bulb burning out quickly
• Flickering or intermittent lighting

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This damper cover insert fits the refrigerator's air damper/diffuser. It helps guide and seal airflow from the freezer to the fresh food section, supporting stable temperatures and reducing drafts when the original insert is cracked or missing.

• Seats inside the damper cover to shape and restrict airflow between freezer and refrigerator compartments
• Helps seal the vent opening to limit air leaks
• Supports proper temperature balance and airflow distribution in the fresh food section
• Typical symptoms include a broken/missing insert, air drafts at the vent, rattling from the cover, or inconsistent cooling

• Disconnect power to the refrigerator before servicing
• Remove shelves as needed and access the damper cover in the fresh food compartment
• Release and remove the damaged insert; snap the new insert into the cover with correct orientation and a secure fit
• Handle nearby foam seals and the damper door carefully to avoid damage

This base damper cove is the plastic cover that protects and supports the refrigerator damper assembly, keeping airflow components secure and helping maintain proper internal airflow. Replacing a damaged cove prevents loose parts and air leaks. What it does:

• Protects the damper assembly and related components from debris and damage
• Helps maintain proper airflow routing between compartments
• Reduces rattling or vibration from a loose or broken damper cover
• Can prevent cold-air leaks that contribute to uneven cooling

• One base damper cove

• Disconnect power to the appliance before beginning any service
• Remove the kickplate or access panel to reach the damper area as required
• Handle plastic pieces gently to avoid cracking; use proper fasteners if provided

This insulation panel helps reduce heat transfer in the refrigerator cabinet so the appliance holds cold temperatures more efficiently and reduces frost buildup. It's a direct-fit replacement for the factory cabinet insulation. What it does:

• Slows thermal transfer between the cabinet and ambient air to help maintain interior temperatures
• Helps reduce frost buildup on evaporator and interior surfaces
• Improves cooling efficiency by minimizing cold-air loss
• Quietly adds a layer of thermal and acoustic insulation behind the liner

• Disconnect power and remove food before starting any repair
• Access requires removing the interior liner or trim
• Handle gently and wear gloves; insulation can tear or shed fibers
• Follow OEM instructions for adhesive or fastener placement and secure fit

The Damper Control Assembly is an OEM part for Whirlpool refrigerators. This component regulates the flow of cold air from the freezer compartment to the refrigerator compartment, ensuring consistent and optimal temperatures throughout the appliance. It plays a critical role in maintaining the balance between freezer and refrigerator temperatures.

Common causes of a bad damper control assembly include electrical malfunctions, physical damage to the damper, or wear and tear from regular use. Over time, the motor or the damper flap can fail, leading to improper air regulation.

Symptoms of a bad damper control assembly include:

• Inconsistent temperatures between the freezer and refrigerator compartments
• The refrigerator being too warm or too cold
• Frost buildup in the refrigerator compartment
• The damper making unusual noises or not moving as it should

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
