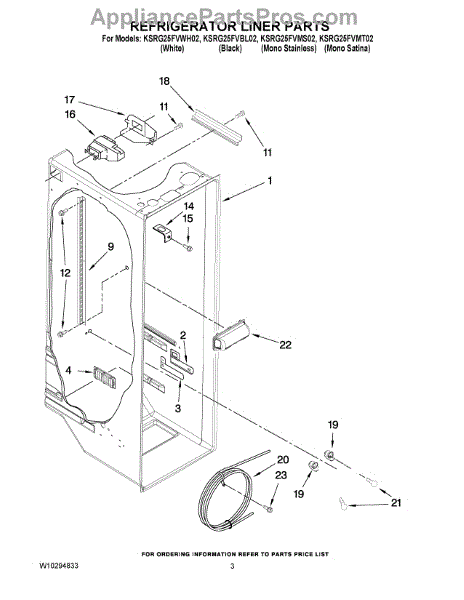

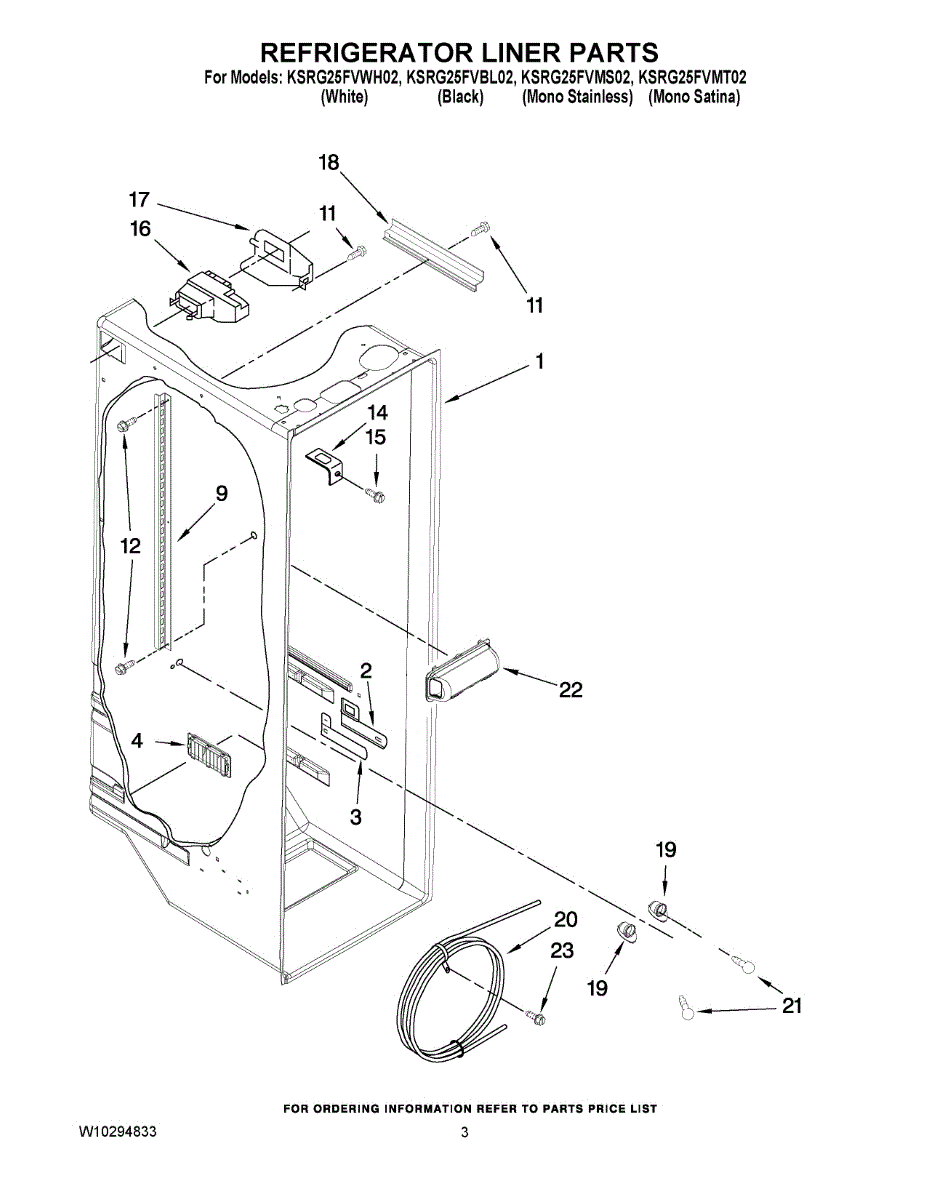

Parts for Kitchenaid KSRG25FVMS02: 02 - Refrigerator Liner Parts

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

Size: 8 x 1/2 ab.

The Air Diffuser Assembly is an OEM part for Whirlpool refrigerators. It regulates the airflow between the refrigerator and freezer compartments, ensuring the proper distribution of cold air to maintain the desired temperatures in both sections.

Common causes of a faulty air diffuser assembly include wear and tear from regular use, damage from ice buildup, or mechanical failure of the moving parts within the diffuser.

Symptoms of a bad air diffuser assembly include:

• Uneven temperatures between the refrigerator and freezer compartments
• Frost buildup in the freezer or refrigerator
• The refrigerator compartment being too warm or too cold
• Unusual noises coming from the air diffuser area

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This air diffuser cover directs and protects airflow within the appliance, restoring proper air distribution and sealing the diffuser opening. It replaces a cracked, missing, or worn cover to help maintain consistent performance. What it does:

• Covers and protects the air diffuser/vent opening from debris and damage
• Directs airflow for consistent circulation where required by the appliance
• Helps reduce air leaks that can cause uneven temperature or performance
• Replaces damaged or missing covers that may rattle or allow debris entry

• One air diffuser cover

• Disconnect power to the appliance before beginning service
• Remove any retaining screws or clips and carefully snap or slide the old cover out
• Install the replacement by aligning tabs or screw holes and securing per the OEM fit

The Light Socket Kit is an OEM part for Whirlpool refrigerators. This kit includes the light socket and necessary components to ensure proper installation and functionality. It is designed to hold the refrigerator light bulb securely and provide reliable electrical connections to illuminate the interior of the refrigerator.

Common causes of failure include wear and tear, corrosion from moisture, or damage from handling or bulb replacement.

Symptoms of a bad Light Socket Kit include:

• Refrigerator light not turning on
• Flickering or intermittent lighting
• Visible damage or corrosion on the socket
• Burned or melted areas around the socket

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Water Reservoir Tubing is an OEM replacement part for Whirlpool refrigerators. It is a flexible plastic tubing that replaces the water reservoir and holds the water for the ice maker and dispenser.

Causes can include cracks from heat or cold exposure over time, punctures from sharp edges during installation, or deterioration of plastic tubing that impacts integrity.

Symptoms of bad water reservoir tubing include:

• Inaccurate or inconsistent ice production
• Leaks or water spills near the reservoir or ice maker
• Kinks or ruptures in the tubing that obstruct water flow
• Mineral buildup that clogs or restricts the line

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

Note: As per manufacture this is no longer a tank. The tank style has been updated with coiled tubing.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

This is the light lens that covers and protects the appliance's light source. Replacing a cracked, yellowed, or missing lens restores clear, even illumination while shielding the bulb/LED from grease, moisture, and impact.

• Diffuses light for more even, glare-free illumination
• Protects the bulb or LED module from debris, grease, and moisture
• Replace if the lens is cracked, warped, melted, discolored, or missing
• Also replace if the lens no longer stays seated or falls out

• Disconnect power to the appliance before servicing and allow the area to cool
• Remove any retaining screws or release tabs to take off the old lens
• Seat the new lens fully; reuse existing fasteners if applicable
• Do not overtighten fasteners; handle carefully to avoid damage

A genuine replacement screw used to secure appliance panels, brackets, and components so assemblies stay aligned and stable. Installs quickly with a screwdriver or driver bit to restore proper fit and reduce rattling. What it does:

• Secures panels, trim, brackets or internal components to keep parts properly aligned
• Prevents loose or vibrating panels that can cause noise or wear
• Holds mounting points that keep doors, seals, and assemblies operating correctly
• Replaces stripped, missing, or corroded fasteners that compromise fit

• Turn off and unplug the appliance before starting any repair
• Use the correct screwdriver or driver bit to avoid stripping the head
• Tighten until snug; avoid overtightening which can strip threads or deform parts
• Keep removed hardware organized and replace like-for-like for best fit
