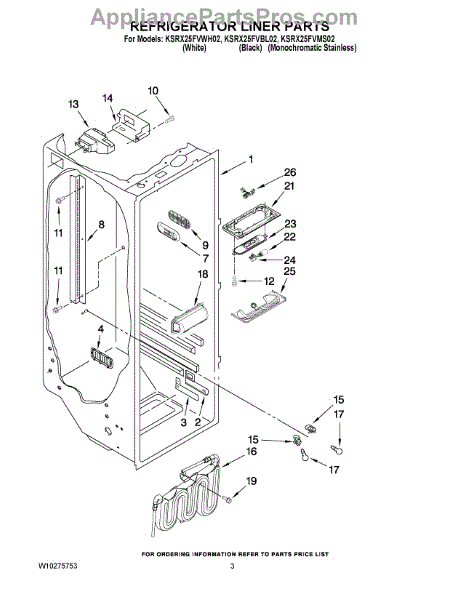

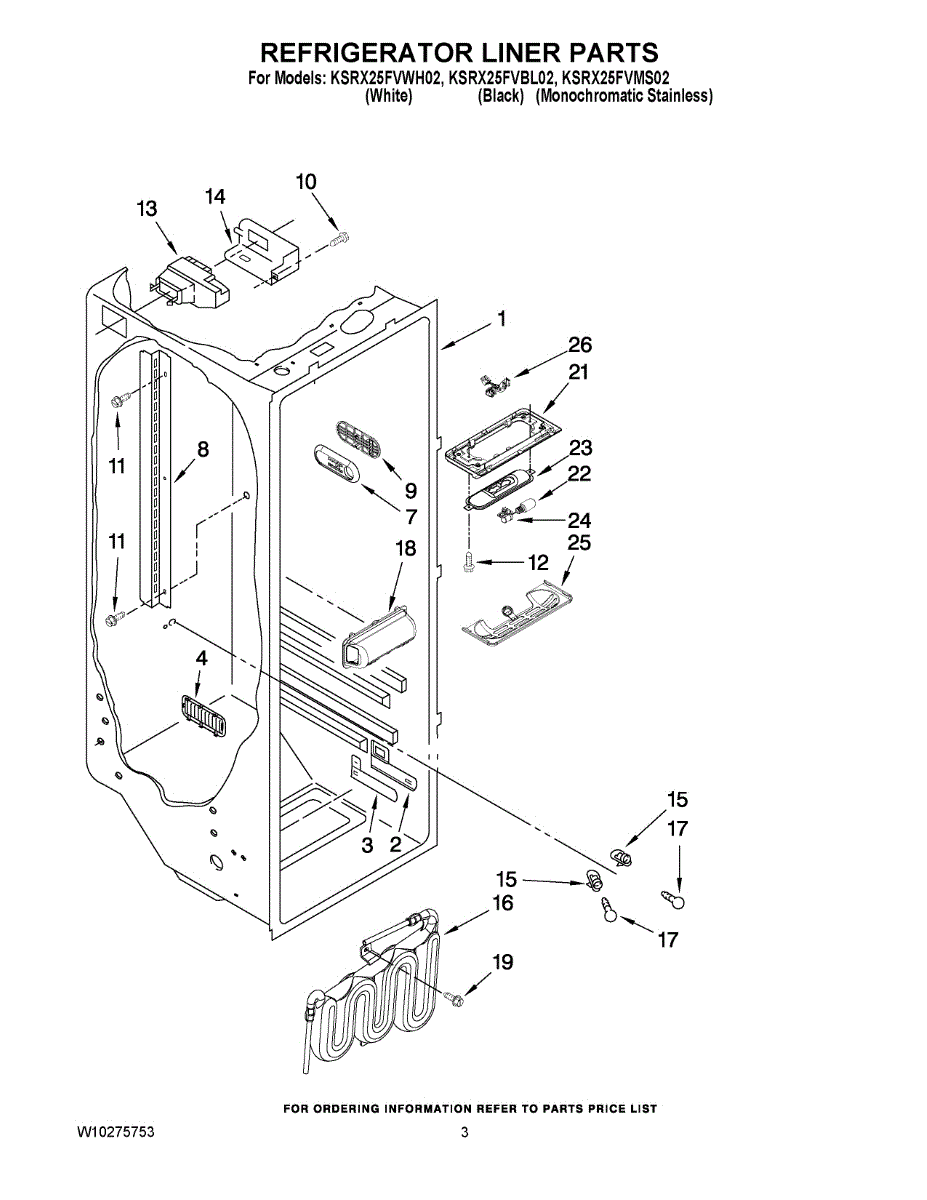

Parts for Kitchenaid KSRX25FVMS02: 02 - Refrigerator Liner Parts

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

Size: 8 x 1/2 ab.

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

This diffuser—often called the refrigerator air damper—controls how much cold air flows from the freezer into the fresh food compartment. Replacing a worn diffuser helps restore even cooling and more stable temperatures throughout the refrigerator. What it does:

• Opens and closes to regulate airflow from the freezer to the refrigerator
• Helps maintain set temperatures and reduce warm spots or over-cooling
• Common symptoms: fresh food too warm while freezer is OK, food freezing on shelves, weak airflow from upper vents, or clicking/buzzing from the diffuser area
• Helps address frost or condensation near the diffuser outlet

• 1 diffuser

• Disconnect power before servicing
• Access from the refrigerator section; remove shelves/air duct covers as needed
• Note wiring and orientation; remove mounting screws/clips and transfer any seals/insulation if present
• After installation, restore power and allow up to 24 hours for temperatures to stabilize

The Light Socket Kit is an OEM part for Whirlpool refrigerators. This kit includes the light socket and necessary components to ensure proper installation and functionality. It is designed to hold the refrigerator light bulb securely and provide reliable electrical connections to illuminate the interior of the refrigerator.

Common causes of failure include wear and tear, corrosion from moisture, or damage from handling or bulb replacement.

Symptoms of a bad Light Socket Kit include:

• Refrigerator light not turning on
• Flickering or intermittent lighting
• Visible damage or corrosion on the socket
• Burned or melted areas around the socket

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Water Reservoir Tubing is an OEM replacement part for Whirlpool refrigerators. It is a flexible plastic tubing that replaces the water reservoir and holds the water for the ice maker and dispenser.

Causes can include cracks from heat or cold exposure over time, punctures from sharp edges during installation, or deterioration of plastic tubing that impacts integrity.

Symptoms of bad water reservoir tubing include:

• Inaccurate or inconsistent ice production
• Leaks or water spills near the reservoir or ice maker
• Kinks or ruptures in the tubing that obstruct water flow
• Mineral buildup that clogs or restricts the line

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

Note: As per manufacture this is no longer a tank. The tank style has been updated with coiled tubing.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

This is the light lens that covers and protects the appliance's light source. Replacing a cracked, yellowed, or missing lens restores clear, even illumination while shielding the bulb/LED from grease, moisture, and impact.

• Diffuses light for more even, glare-free illumination
• Protects the bulb or LED module from debris, grease, and moisture
• Replace if the lens is cracked, warped, melted, discolored, or missing
• Also replace if the lens no longer stays seated or falls out

• Disconnect power to the appliance before servicing and allow the area to cool
• Remove any retaining screws or release tabs to take off the old lens
• Seat the new lens fully; reuse existing fasteners if applicable
• Do not overtighten fasteners; handle carefully to avoid damage

A genuine replacement screw used to secure appliance panels, brackets, and components so assemblies stay aligned and stable. Installs quickly with a screwdriver or driver bit to restore proper fit and reduce rattling. What it does:

• Secures panels, trim, brackets or internal components to keep parts properly aligned
• Prevents loose or vibrating panels that can cause noise or wear
• Holds mounting points that keep doors, seals, and assemblies operating correctly
• Replaces stripped, missing, or corroded fasteners that compromise fit

• Turn off and unplug the appliance before starting any repair
• Use the correct screwdriver or driver bit to avoid stripping the head
• Tighten until snug; avoid overtightening which can strip threads or deform parts
• Keep removed hardware organized and replace like-for-like for best fit

This replacement trim restores the finished edge and appearance around the appliance door, helping keep the door seal covered and giving a clean, factory look. It's a direct-fit exterior trim piece used where the original is cracked, dented, or missing. What it does:

• Covers and protects the outer edge of the appliance door for a finished appearance
• Helps conceal fasteners and the gap between the door and cabinet
• Returns the door to factory aesthetics after impact or wear
• Commonly replaced when trim is cracked, bent, or cosmetic finish is damaged

• Disconnect power to the appliance before starting any work
• Handle trim carefully to avoid scratching the finish or cutting on sharp edges
• Align tabs and slots, then secure with the original fasteners; do not overtighten
• If the trim includes adhesive or clips, follow OEM instructions for proper seating

The Whirlpool light bulb is an OEM replacement part responsible for providing illumination within the appliance, typically found in the interior of a refrigerator or oven. This incandescent bulb features a small screw-in base and clear glass. It operates at 120 volts and has a power rating of 25 watts. Its primary function is to emit light when the appliance's door or lid is opened, allowing users to see and access the contents inside.

Causes of a bad light bulb can include regular wear and tear from frequent use, electrical surges, or damage from handling. Over time, light bulbs naturally burn out and require replacement to maintain adequate lighting inside the refrigerator.

Symptoms of a bad light bulb include:

• The refrigerator or freezer compartment being dark when the door is opened
• Flickering or dim lighting
• A completely non-functional light bulb

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Light Bulb Socket is an OEM part for Whirlpool refrigerators. It is specifically designed to hold the light bulb securely in place, providing illumination within the refrigerator compartment. The socket ensures a proper electrical connection for the bulb to function efficiently.

Causes of a bad light bulb socket can include corrosion, loose wiring connections, or physical damage to the socket. These factors can result in a malfunctioning or non-functional light bulb.

Symptoms of a bad light bulb socket may include:

• Flickering or intermittent lighting
• A completely non-functional light bulb
• Difficulty in removing or inserting a new bulb into the socket.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement light lens covers and protects the appliance control panel light while diffusing illumination for clearer, less-glare visibility. Restores the control area's appearance and helps ensure even lighting across the panel. What it does:

• Protects the control panel light from dust, spills and impact.
• Diffuses and directs internal light to reduce glare and improve visibility of controls.
• Replaces cracked, discolored or missing lenses that cause uneven or dim lighting.
• Helps maintain the original look of the control area and prevents further wear to the light assembly.

What's included: One replacement light lens. Install notes:

• Disconnect power to the appliance before starting any repair to avoid shock or injury.
• Typically installs behind or over the control panel; may require removing trim or a few fasteners.
• Handle the lens carefully to avoid scratching; use a non-abrasive cloth for cleaning.
