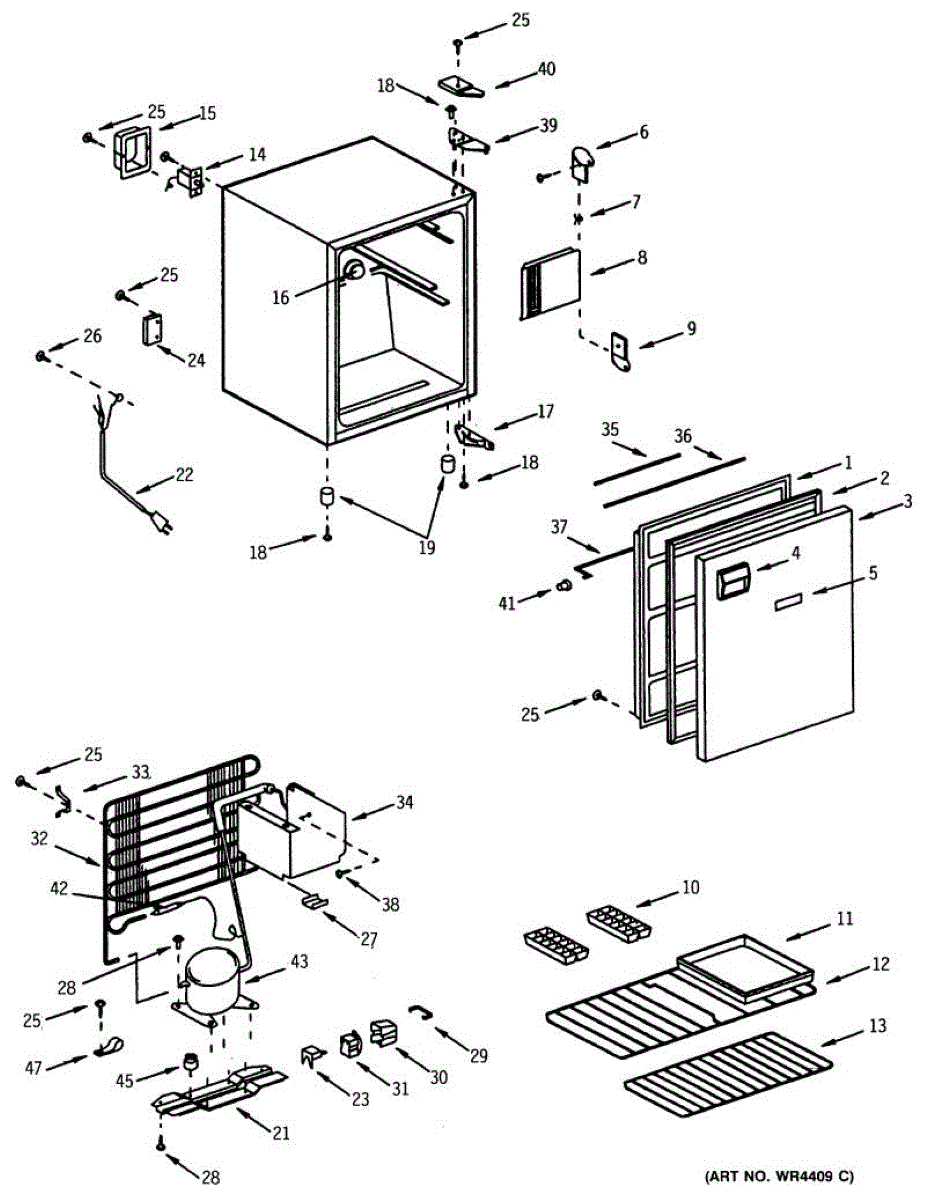

Parts for Ge SC3SSARWG: 01 - Section1 Parts

This power cord assembly supplies electrical power from the wall outlet to your refrigerator. Replace a cut, frayed, or overheated cord to restore safe, reliable operation and eliminate intermittent power loss caused by a damaged cord. What it does:

• Provides the electrical connection between the household outlet and the refrigerator's wiring
• Helps resolve no-power or intermittent power when the cord is moved
• Addresses visible damage such as cuts, cracks, fraying, or a melted/discolored plug
• Mitigates arcing, sparking, or a burning odor originating from the cord or plug area

• One power cord assembly

• Disconnect power by unplugging the unit or switching off the circuit breaker before servicing
• Pull the refrigerator forward for access; note the original cord routing and connections
• Install the new cord along the same path and secure any built-in strain relief; ensure the ground connection is properly seated
• Restore power and verify operation

This hinge screw secures a refrigerator/freezer door hinge to the cabinet, helping restore proper door alignment and smooth operation. Use to replace worn or stripped hinge hardware that can cause sagging or uneven door gaps. What it does:

• Fastens the door hinge to the cabinet or hinge bracket for stable door mounting.
• Restores correct door alignment when original screw is missing, bent, or stripped.
• Helps reduce door sag and uneven gaps that can affect sealing and operation.
• Works with OEM hinge assemblies where this screw is specified.

• Unplug the appliance or disconnect power before beginning any repair.
• Support the door securely (have a helper or use a bracket) before removing hinge fasteners.
• Use the correct size screwdriver or bit to avoid stripping the screw head.
• Tighten until snug; avoid over-tightening which can strip threads or deform hinge components.

This clamp thermostat bulb is the temperature-sensing capillary used by the refrigerator thermostat to monitor evaporator or tubing temperature and help regulate cooling. It replaces a damaged or malfunctioning sensor to restore temperature control. What it does:

• Senses temperature at the evaporator/tubing and relays data to the thermostat
• Triggers the thermostat to start or stop cooling based on sensed temperature
• Commonly used when the refrigerator runs continuously, doesn't cool properly, or cycles erratically
• Works as a direct replacement for the thermostat's sensing element when the bulb or capillary is damaged

• Disconnect power to the appliance before beginning any repair
• Handle the bulb and thin capillary tube carefully to avoid kinks or damage
• Clamp the bulb securely to the proper tubing or evaporator per OEM guidance; do not overtighten

The R134 Drier is an OEM part for GE refrigerators. This component plays a critical role in the refrigeration system by removing moisture and contaminants from the refrigerant, ensuring efficient cooling and preventing damage to other parts of the system. It helps maintain the purity and effectiveness of the refrigerant as it cycles through the system.

You should replace the R134 drier if it becomes clogged or damaged. Common causes of a bad drier include wear and tear over time, exposure to moisture, or contamination from other failing components in the refrigeration system.

Symptoms of a bad R134 drier include:

• Reduced cooling efficiency
• Frost buildup on the evaporator coils
• Unusual noises from the refrigeration system
• Increased energy consumption
• Refrigerator not maintaining the set temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This wire clip secures appliance wiring to the cabinet, keeping harnesses neatly routed and protected from rubbing or pinching. It helps maintain reliable electrical connections and prevents wiring from shifting during use. What it does:

• Holds wiring harnesses against the cabinet or frame to prevent chafing and wear
• Keeps wires routed away from moving parts and hot surfaces
• Reduces strain on connector ends to help prevent intermittent connections
• Stops wires from rattling or becoming loose during operation

• One wire clip as shown

• Disconnect power to the appliance before starting any repair
• Locate the damaged or missing clip and press the clip into the cabinet slot or over the flange until it snaps in place
• Use a small flat screwdriver for removal if needed; avoid pulling on wires directly
• Inspect surrounding wiring and replace any damaged insulation before re-securing
