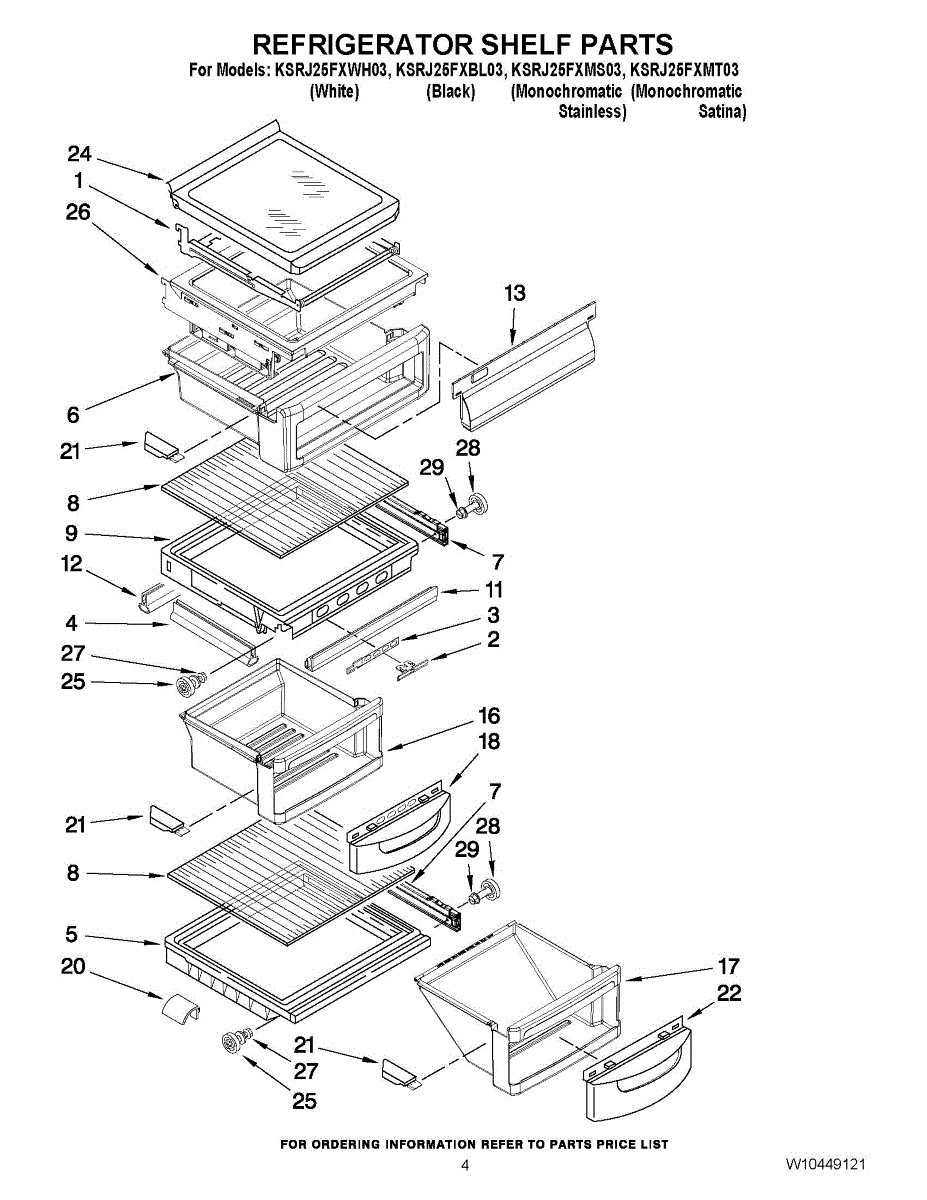

Parts for Kitchenaid KSRJ25FXMS03: 03 - Refrigerator Shelf Parts

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

This part may look different than pictured, but it will still fit in your refrigerator and work the same.

This crisper pan is the refrigerator's produce drawer. It replaces a cracked or missing bin to restore a clean, dedicated space for fruits and vegetables and smooth slide-in/slide-out access in the fresh food section. What it does:

• Provides a dedicated compartment to organize produce in the fresh food compartment
• Helps contain spills to protect shelves and liners below
• Slides on the factory rails for easy access and removal
• Common failure signs: cracks, chips, warping, staining, or a drawer that won't slide or stay on its tracks

• 1 crisper pan

• Disconnect power to the refrigerator before servicing
• Empty the old bin and slide it straight out of the tracks
• Clean and inspect tracks/rollers for debris or damage before installing
• Align the new pan with the tracks and slide it fully in; do not force

This glass refrigerator shelf provides a stable, easy-to-clean surface for storing food and containers inside the fresh-food compartment. It restores proper shelving layout and helps keep items organized and visible. What it does:

• Replaces a broken, cracked or missing glass shelf so food and containers sit level and secure
• Helps contain spills on a wipe-clean surface to simplify cleanup
• Restores usable storage space and original shelf configuration
• Fits into existing shelf supports and works with standard refrigerator shelf clips or rails

• One glass shelf

• Slide shelf into existing support rails or clips; no special tools typically required
• Handle with care — glass edges can be sharp; wear gloves during installation
• Verify shelf is fully seated and level before loading with heavy items
• If shelf clips or rails are damaged, replace them to ensure secure fit

This shelf support stud anchors a refrigerator shelf to the cabinet liner so it stays level and secure. Replace a cracked or missing stud to restore proper support and prevent shelves from tilting, slipping, or dropping.

• Locks into the liner wall to provide a mounting point for the shelf frame or bracket
• Keeps the shelf aligned and at the correct height
• Common symptoms: broken/missing stud, shelf won't sit flat, shelf sags or falls on one side
• Helps prevent items from sliding due to an unstable shelf

• Disconnect power; remove the shelf and any items resting on it. Handle glass shelves carefully and consider wearing cut-resistant gloves.
• Remove the damaged stud (release the locking tab or twist out, depending on design).
• Insert the new stud into the existing hole until fully seated and locked.
• Reinstall the shelf and verify it sits level before reloading.

Pan-head screw used to secure panels, brackets and trim on Whirlpool appliances. Replacing a damaged or missing screw restores proper fastening to reduce vibration and keep assemblies aligned during operation. What it does:

• Secures panels, brackets and trim pieces to the appliance chassis.
• Stops loose panels from rattling, vibrating or shifting during use.
• Used when the original screw is stripped, corroded or missing.
• OEM replacement that restores the original fastening point.

• Unplug the appliance or shut off power before working on it.
• Use the correct screwdriver or bit to avoid stripping the head.
• Tighten until snug—do not overtighten or force in plastic parts.
• If the original hole or threads are damaged, inspect the surrounding area before reuse.

The Shelf Stud is an OEM part for Whirlpool refrigerators. It serves as a support peg that holds the refrigerator shelves in place, ensuring they remain stable and properly positioned.

Causes of a bad shelf stud can include wear and tear from regular use, accidental impact that causes the stud to break, or repeated removal and reinstallation of shelves leading to loosening or damage.

Symptoms of a bad shelf stud include:

• Shelves not staying securely in place
• Shelves tilting or collapsing
• Visible cracks or damage to the stud
• Difficulty in inserting or removing shelves

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a rear stud with a screw. For the front stud with screw use part number W11223328. For studs with no screw use kit part number 4388538.

This factory fastener secures panels, brackets, or internal components in your appliance. Replacing a missing or damaged screw restores a tight fit, reduces rattles, and keeps assemblies properly aligned for dependable operation.

• Fastens sheet-metal panels, braces, and trim to the cabinet/frame
• Helps maintain alignment and structural integrity of assemblies
• Can reduce vibration noises and looseness caused by missing/stripped hardware
• Replace if the head is rounded, threads are worn, or the screw is corroded

• Disconnect power; for gas or water appliances, also shut off the supply
• Match location and start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
